P 418 (11C-704A100) - Cub Cadet Walk-Behind Mower (2001) Handle & Engine Accessories Parts Diagram

Walk-Behind Mower

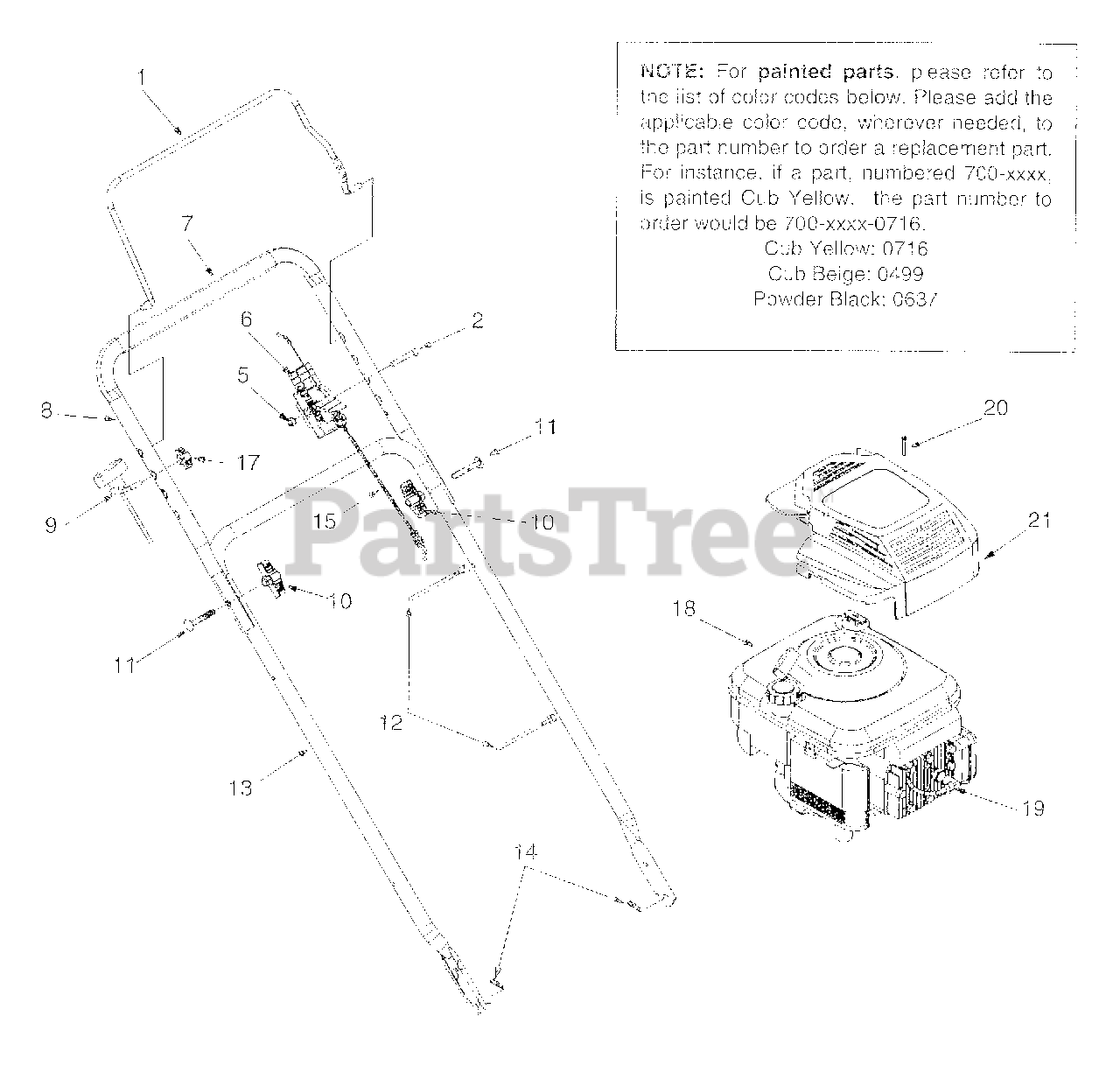

Handle & Engine Accessories Parts Diagram

  • Title
1

Cub Cadet 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

6

Cub Cadet 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

7

Cub Cadet 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 749-0705

Upper Handle

Variations

Cub Cadet 749-0705-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

12

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 746-0554

Control Cable 40.5" Lg.
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

17

Cub Cadet 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

18

Engine

$

$

Not available

19

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

20

Cub Cadet 751B095225

Screw #10-32 x 2.3" Lg.

$

$

Not available

21

Cub Cadet 751B281857

Engine Shroud

$

$

Not available

Cub Cadet 710-1268

Muffler Guard Screw

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 751B225250

Muffler Guard

Note: (Not Shown)

$

$

Not available

Cub Cadet 777D00543

Hub Cap Label

$3.49

$

In Stock, only 2 left!

0

Cub Cadet 777D003382

Engine Shroud

$

$

Currently unavailable

Cub Cadet 777S30118

Danger Label (Cut Hand)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 777S30277

Discharge Door

$

$

Currently unavailable
