P 418 (11C-704A100) - Cub Cadet Walk-Behind Mower (2001) General Assembly Parts Diagram

Walk-Behind Mower

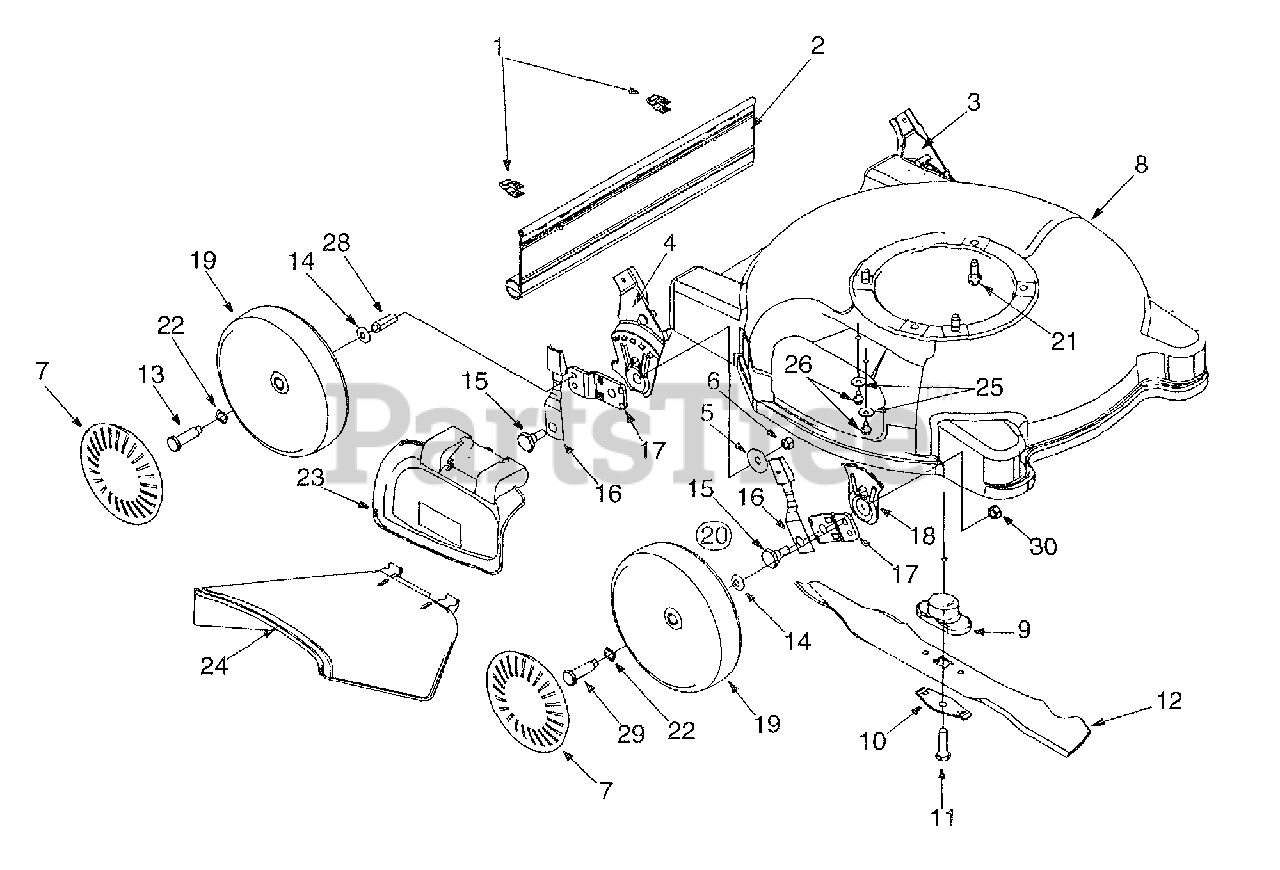

General Assembly Parts Diagram

  • Title

1

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

2

Cub Cadet 731-1028

Rear Flap

$34.99

$

In Stock, only 1 left!

0

3

Cub Cadet 682-3001A

Handle Bracket Ass'y LH
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 682-3000A

Handle Bracket Ass'y RH
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-0356

Bell Washer .39" ID x 1.38"
(Superseded to 936-0356)

$

$

Not available

6

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 731-0982A

Hub Cap:Beige
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

8

Cub Cadet 682-0018B

Deck Assembly

Variations

Cub Cadet 682-0018B-0716

DECK ASSEMBLY-18" 3-N-1(CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-0018B-0650

DECK ASSEMBLY-18" 3-N-1(RED METALLIC) - RED METALLIC (0650)

$

$

Not available

$

$

9

Cub Cadet 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

10

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-1044

Hex Bolt 7/16-20 x 1.5"

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 742-0738

18" Mulch Blade
(Superseded to 942-0738)

$28.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 738-0213

Axle Bolt

$7.99

$

In Stock, only 2 left!

0

14

Cub Cadet 736-0105

Bell Washer .400" ID x .88"

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 738-0507B

Shoulder Bolt

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 14832P

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

17

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

18

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

19

Cub Cadet 734-2008

Wheel Assembly
(Superseded to 734-2008A)

$58.99

$

In Stock, only 1 left!

0

20

Cub Cadet 14578

Height Adj. Ass'y. Comp. R.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Cub Cadet 14579

Height Adj. Ass'y. Comp. L.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

21

Cub Cadet 710-0654A

Hex Lock Wash. Hd. Screw 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

23

Cub Cadet 682-7002

Mulching Plug

$

$

Not available

24

Cub Cadet 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

25

Cub Cadet 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0599

Hex Wash. Hd. TT Screw 1/4 20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

30

Cub Cadet 712-0431

Hex Flange L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0
