P 418 (11A-702A101) - Cub Cadet Walk-Behind Mower (1999) Handle Assembly Parts Diagram

Walk-Behind Mower

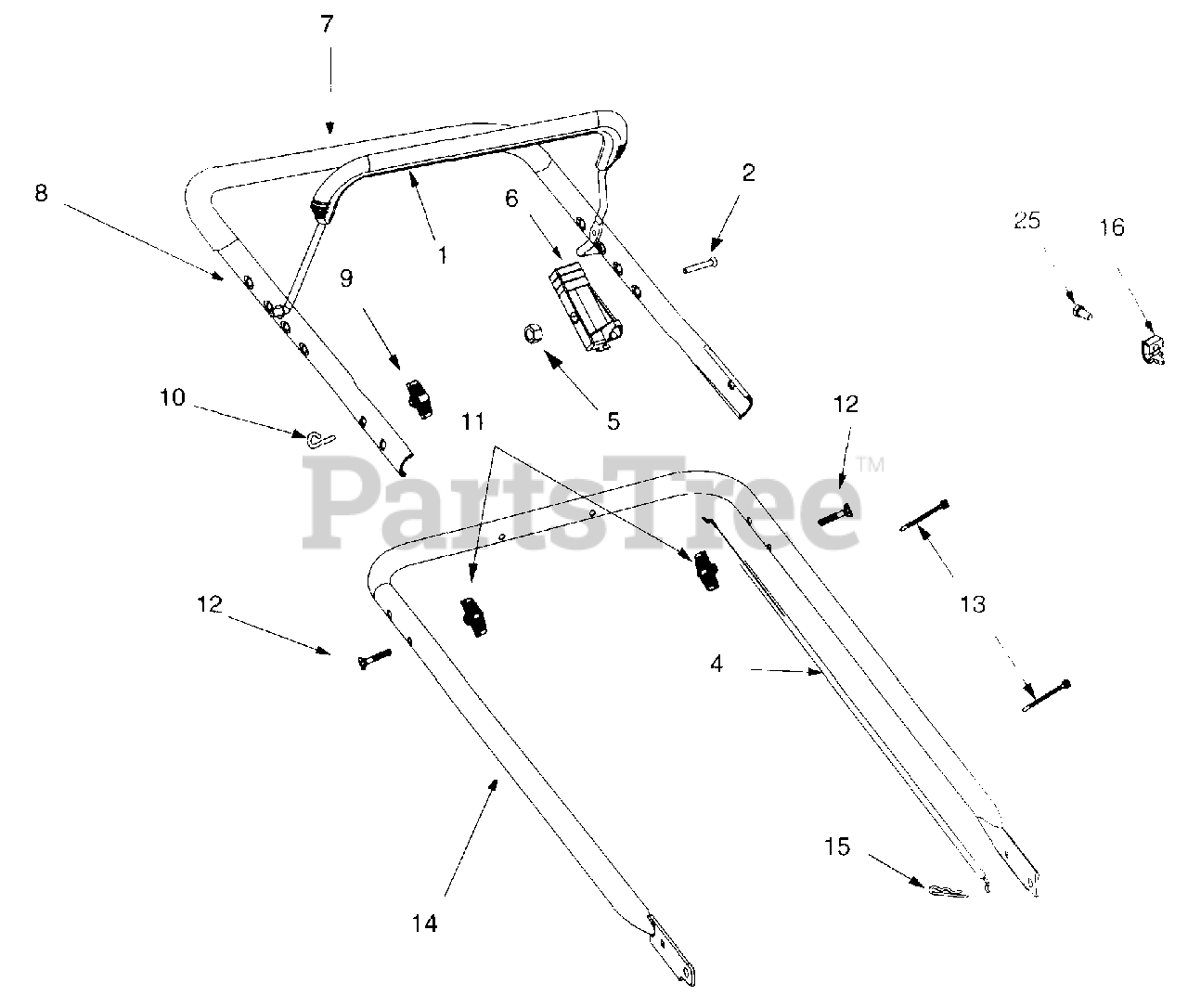

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-1270

Screw, 1/4-20

$4.49

$

Usually ships in 3-6 days

0

?3

Cub Cadet 736-0501

Spring Washer
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 746-0553

Control Cable 36"
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

6

Cub Cadet 746-0883

Throttle Housing

$16.99

$

In Stock, only 3 left!

0

7

Cub Cadet 720-0295

Foam Grip, 22"

$33.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

Cub Cadet 749-0538C-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 720-0279

Hand Knob

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

12

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

15

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

16

UNKNOWN

$

$

Not available

25

UNKNOWN

$

$

Not available

Cub Cadet 735-0639

Spark Plug Boot

Note: (Not Shown)

$

$

Not available

Cub Cadet 710-1268

Muffler Guard Screw

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0
