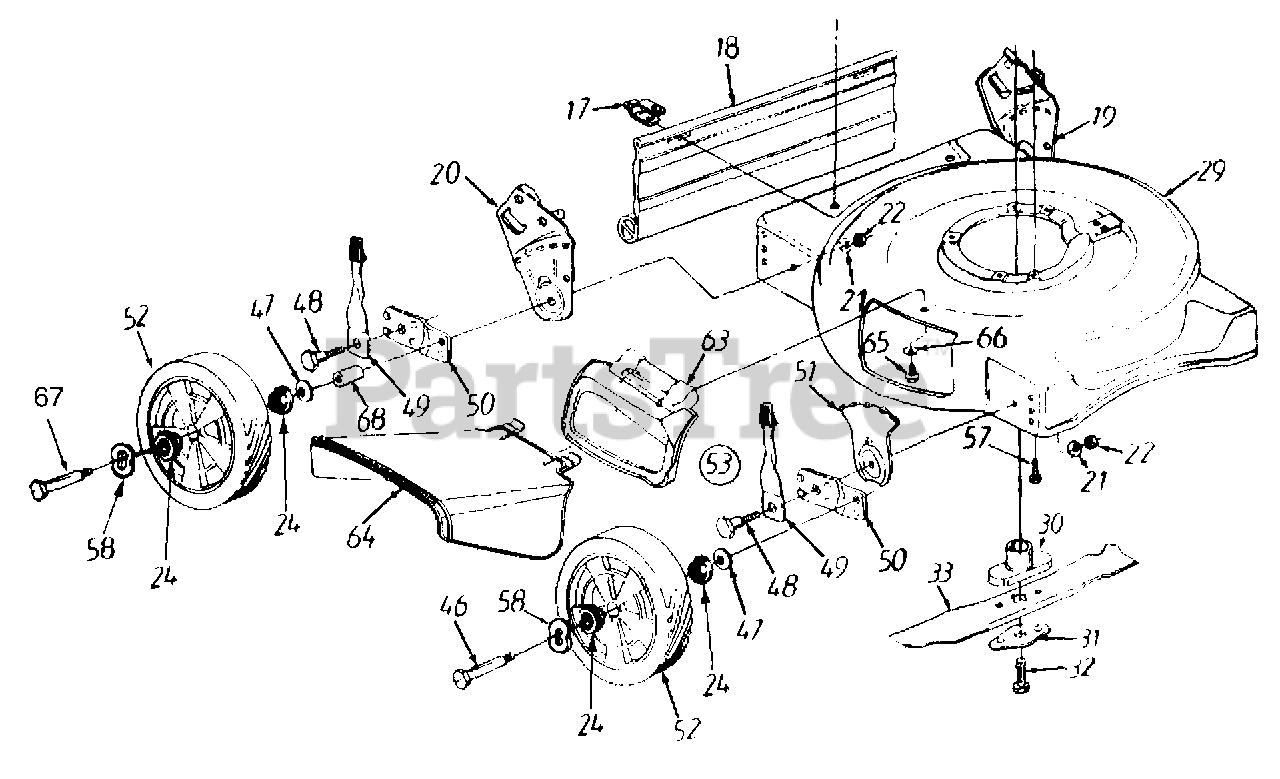

P 418 (11A-702A101) - Cub Cadet Walk-Behind Mower (1999) Deck Assembly Parts Diagram

Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title

17

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

Cub Cadet 731-1028

Rear Flap

$34.99

$

In Stock, only 1 left!

0

19

Cub Cadet 682-3001A

Handle Bracket Ass'y. LH
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 682-3000A

Handle Bracket Ass'y RH
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0356

Bell Washer .39" ID x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

?23

Cub Cadet 731-0982A

Hub Cap: Beige
(Superseded to 731-0982C)

Note: (Not Shown)

$11.99

$

In Stock, Qty 18

0

24

Cub Cadet 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet 682-0018

Deck Assembly

Variations

Cub Cadet 682-0018-0483

DECK-ASSEMBLY-18 CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 682-0018-0498

DECK ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-0018-0499

DECK-ASSEMBLY-18 (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 682-0018-0638

DECK-ASSEMBLY-18 (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 682-0018-0665

DECK-ASSEMBLY-18 (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 682-0018-0691

DECK-ASSEMBLY-18 (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

30

Cub Cadet 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

32

Cub Cadet 710-1044

Hex Bolt 7/16-20 x 1.5"

$3.99

$

In Stock, only 2 left!

0

33

Cub Cadet 742-0738

18" Mulch Blade
(Superseded to 942-0738)

$28.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

Cub Cadet 736-0105

Bell Washer .400" ID x .88"

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 14832P

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

Cub Cadet 720-0190

Knob Only
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

50

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

Cub Cadet 734-1978

Wheel Assembly

Note: (Incl. Ref 24)

$48.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 14578

Height Adj. Ass'y. Comp. R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Cub Cadet 14579

Height Adj. Ass'y. Comp. L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

57

Cub Cadet 710-0654A

Hex Lock Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

63

Cub Cadet 682-7002

Mulch Plug Assembly

$

$

Not available

Cub Cadet 732-0731

Mulch Plug Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 747-0710

Mulch Plug Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

Cub Cadet 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0599

Hex Washerhead Screw 1/4-20 x.5"

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 738-0213

Shoulder Screw

Note: (Rear Wheel)

$7.99

$

In Stock, only 2 left!

0

68

Cub Cadet 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0
