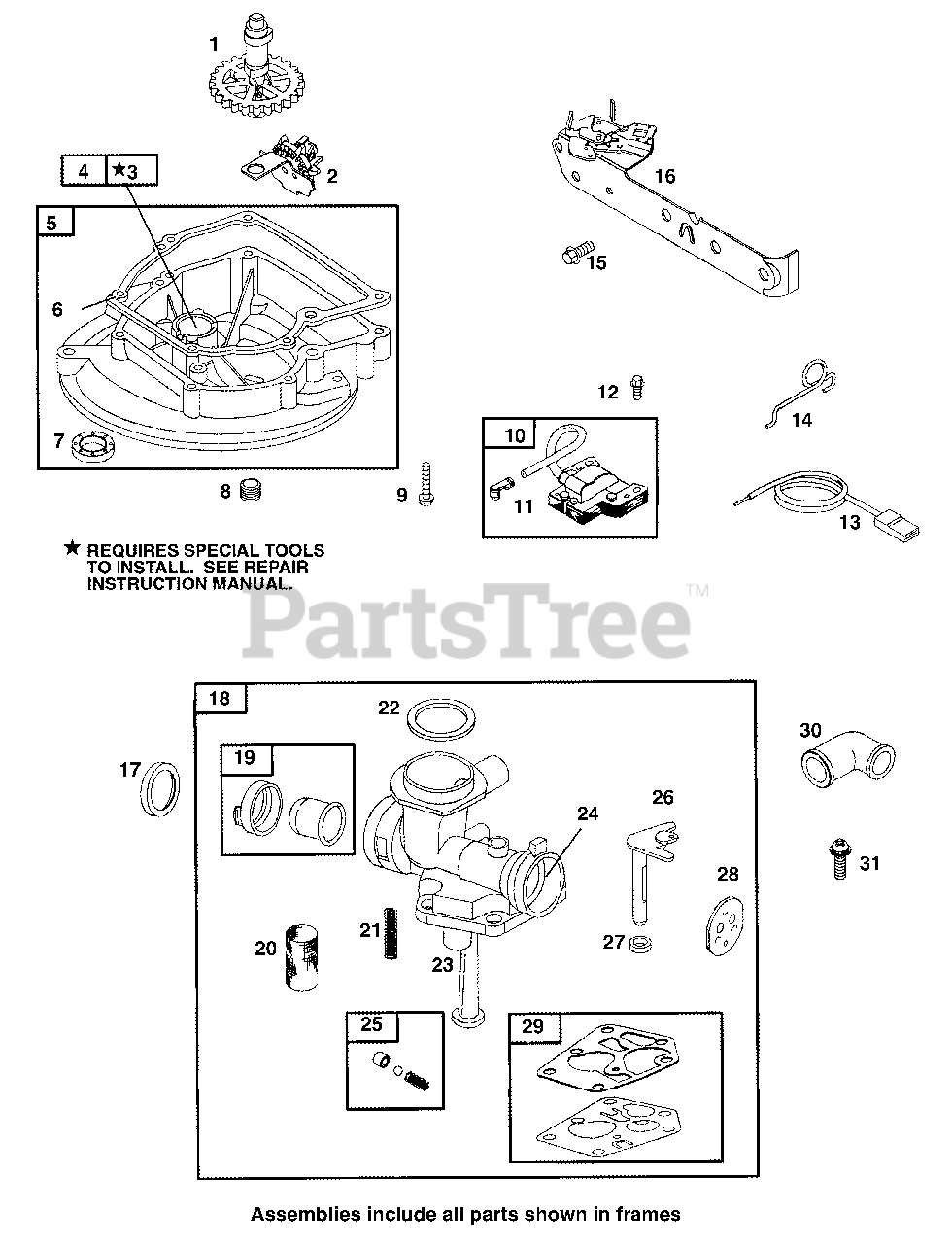

P 418 (11A-702A100) - Cub Cadet Walk-Behind Mower Engine (1998) Base & Carburetor Parts Diagram

Walk-Behind Mower Engine

Base & Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-493747

Cam Gear (Clockwise)

$

$

Not available

2

Cub Cadet BS-491688

Oil/Governor Slinger

$

$

Not available

3

Cub Cadet BS-293709

Bushing

$11.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-391483

Oil Seal
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 5

0

5

Cub Cadet BS-395384

Engine Sump

$

$

Not available

6

Cub Cadet BS-270833

Crankcase Gasket
(Superseded to BS-692218)

$

$

Not available

7

Cub Cadet BS-391483

Oil Seal
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 5

0

8

Cub Cadet BS-94720

Oil Drain Plug
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-94682

Hex Screw

$

$

Not available

10

Cub Cadet BS-496914

Magneto Armature
(Superseded to BS-591420)

$53.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-493880

Cable Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-94731

Hex Screw

$

$

Not available

13

Cub Cadet BS-497833

Stop Wire
(Superseded to BS-692390)

$

$

Not available

14

Cub Cadet BS-262753

Air Vane Link

$

$

Not available

15

Cub Cadet BS-94786

Hex Screw
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 12

0

16

Cub Cadet BS-498207

Control Bracket

$

$

Not available

17

Cub Cadet BS-281661

Trim Ring (Primer Bulb)
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet BS-498809

Carburetor

$52.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-494408

Carburetor Primer
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 12

0

20

Cub Cadet BS-262734

Carburetor Screen

$

$

Not available

21

Cub Cadet BS-262764

Choke Diaphragm Spring
(Superseded to BS-691839)

$5.99

$

In Stock, Qty 5

0

22

Cub Cadet BS-271139

Air Cleaner Gasket

$

$

Not available

23

Cub Cadet BS-496046

Pickup Tube
(Superseded to BS-496046S)

$8.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-270344

Intake Manifold Seal
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet BS-494409

Check Valve Seat

$

$

Not available

26

Cub Cadet BS-281047

Throttle Shaft

$

$

Not available

27

Cub Cadet BS-280566

Dust Seal

$

$

Not available

28

Cub Cadet BS-224412

Throttle Valve
(Superseded to BS-691190)

$7.49

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-495770

Carburetor Diaphragm
(Superseded to BS-795083)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet BS-67838

Grommet
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 13

0

31

Cub Cadet BS-93440

Screw Phillips

$

$

Not available
