P 418 (11A-702A100) - Cub Cadet Walk-Behind Mower Engine (1997) Cylinder Assembly Parts Diagram

Walk-Behind Mower Engine

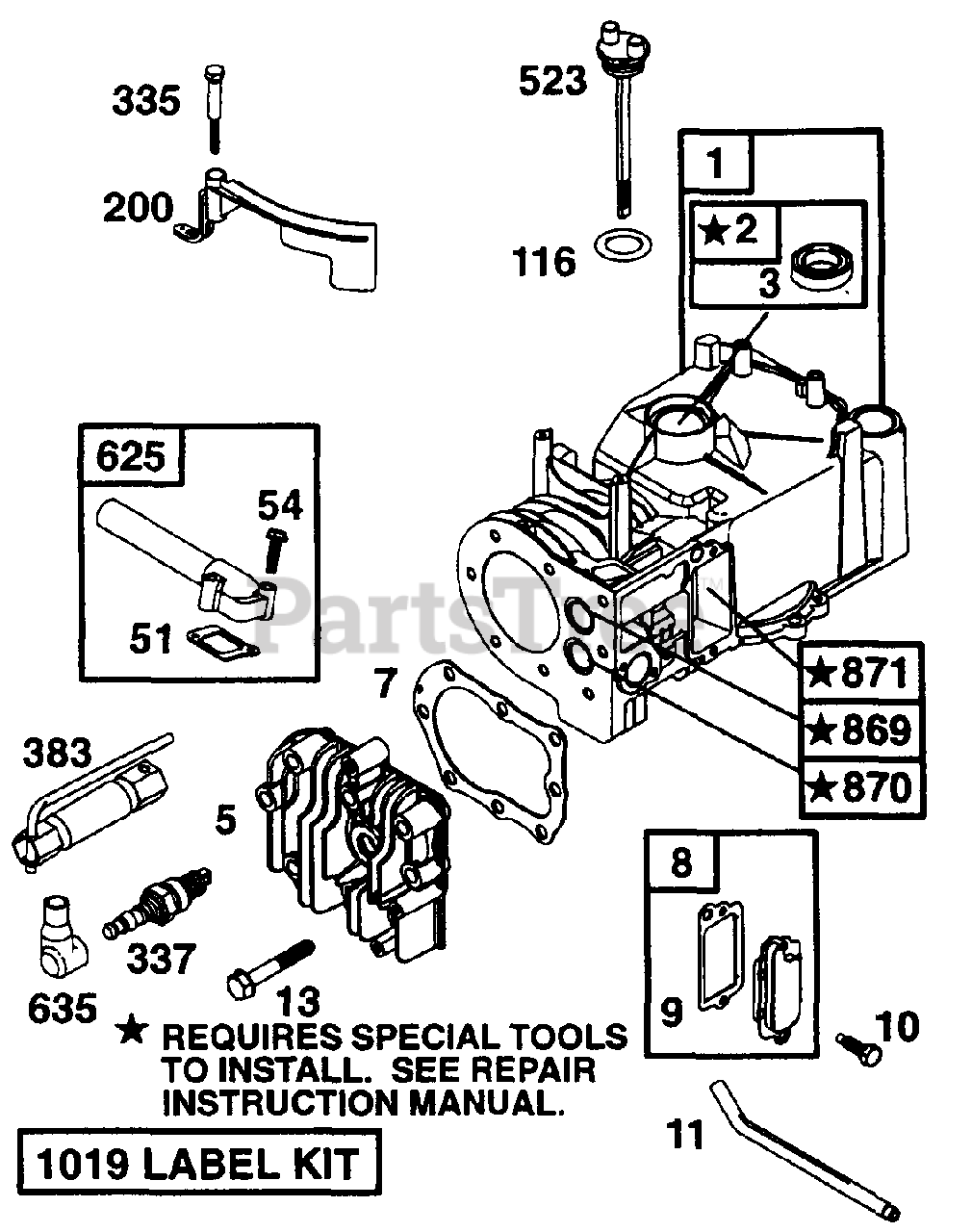

Cylinder Assembly Parts Diagram

  • Title
1

Cub Cadet BS-399164

Cylinder Assy

$

$

Not available

2

Cub Cadet BS-293708

Bushing
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

5

Cub Cadet BS-214277

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272694

Gasket-Cylinder Hd
(Superseded to BS-698717)

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495785

Breather Assy

$

$

Not available

9

Cub Cadet BS-272602

Gasket-Breather

$

$

Not available

10

Cub Cadet BS-94621

Screw-Breather Mounting
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-231774

Tube-Breather
(Superseded to BS-691245)

$8.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-93111

Screw-Cylinder Hd
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 11

0

51

Cub Cadet BS-270345

Gasket-Intake

$

$

Not available

54

Cub Cadet BS-93485

Screw-Intake Elbow Mounting

$

$

Not available

116

Cub Cadet BS-271485

Seal O-Ring

$

$

Not available

200

Cub Cadet BS-281024

Blade-Governor
(Superseded to BS-691912)

$13.99

$

In Stock, only 1 left!

0

335

Cub Cadet BS-94732

Screw-Shoulder

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

Note: (Resistor Type)

$3.99

$

In Stock, Qty 14

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-281081

Dipstick
(Superseded to BS-691913)

$9.99

$

Usually ships in 2-12 days

0

625

Cub Cadet BS-298775

Manifold-Intake
(Superseded to BS-693446)

$14.99

$

Usually ships in 2-12 days

0

635

UNKNOWN

$

$

Not available

869

Cub Cadet BS-211172

Seat-Intake Valve

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

Note: P/N 63709 For Guide-Intake Valve

$31.99

$

Usually ships in 2-12 days

0

1019

$46.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-398210

Short Block Assembly

$221.99

$

Usually ships in 2-12 days

0
