P 418 (11A-702A100) - Cub Cadet Walk-Behind Mower (1998) Handle & Engine, External Parts Diagram

Walk-Behind Mower

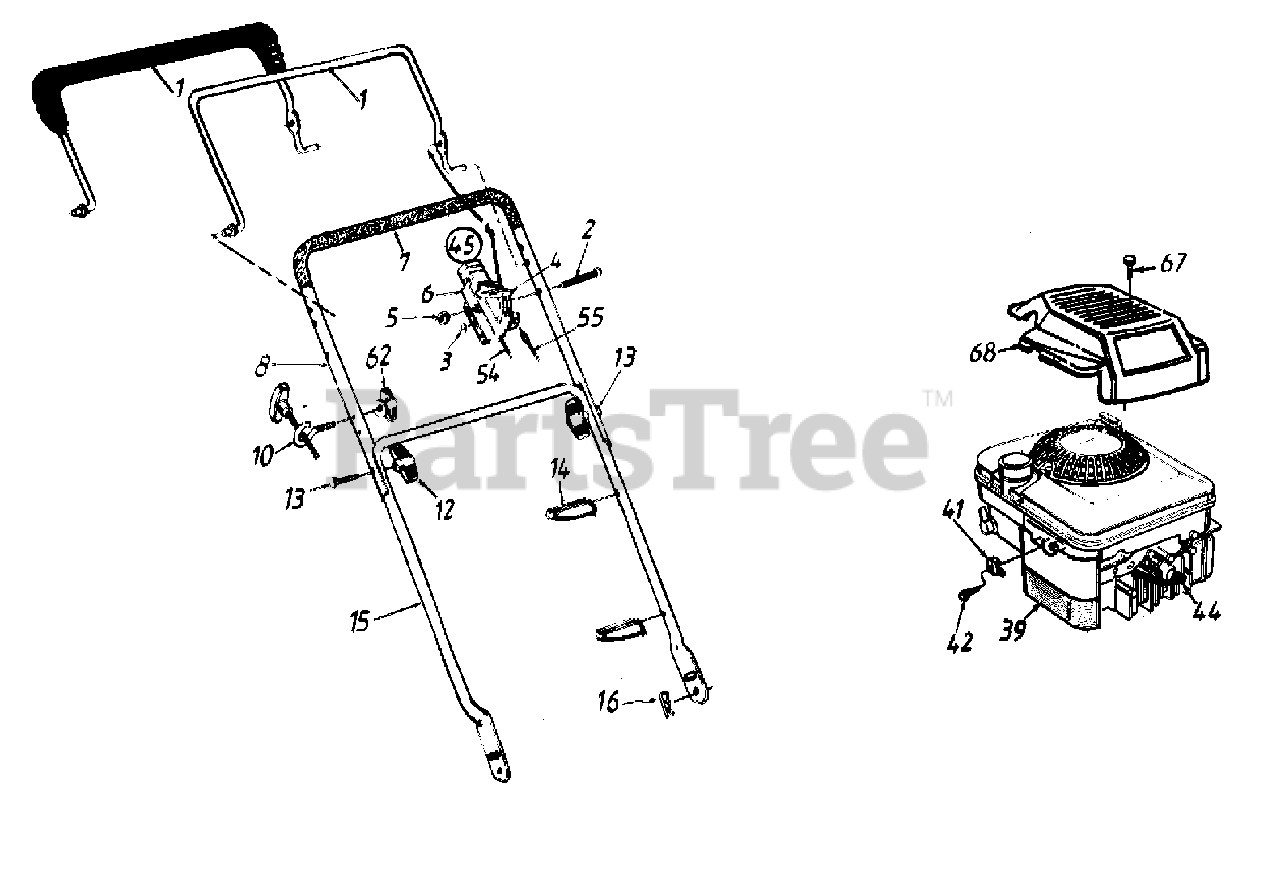

Handle & Engine, External Parts Diagram

  • Title

1

Cub Cadet 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-0605

Oval C-Sunk Screw

$4.49

$

In Stock, only 3 left!

0

3

Cub Cadet 736-0501

Spring Washer
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

5

Cub Cadet 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 17

0

6

Cub Cadet 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

7

Cub Cadet 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 749-0538C-0498

Upper Handle

$

$

Currently unavailable

10

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

13

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

Cub Cadet 749-0928-0498

Lower Handle

$

$

Currently unavailable

16

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

39

Engine

$

$

Not available

41

Cub Cadet 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

42

Cub Cadet 710-1237

Hex TT Screw #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

45

Cub Cadet 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Includes references 2, 3, 4, 5, and 6.)

$36.99

$

In Stock, only 1 left!

0

54

Cub Cadet 746-0842

Throttle Cable 51"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 746-0553

Control Cable
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 710-1256

Hi - Lo Screw

$5.99

$

In Stock, only 3 left!

0

68

Cub Cadet 751B281440

Engine Shroud

$

$

Not available

Cub Cadet 777-0148

Throttle Instruction Label

$

$

Not available

Cub Cadet 777-0870

Danger Label (Behind Deck Opening)

$

$

Not available

Cub Cadet 777-3047

Danger Label (Cut Hand)
(Superseded to 777S30181)

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-1299

Warning Label (Chute Cover)
(Superseded to 777S30108)

$

$

Not available

Cub Cadet 777-9341

Warning Label
(Superseded to 777S30295)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-3801A

Safety Label (Deck)
(Superseded to 777S30142)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-1557

Danger Label (Deck)

$

$

Not available

Cub Cadet 777-4556

Decorative Label (Shroud)

$

$

Not available

Cub Cadet 777D00543

Decorative Label (Hubcap)

$3.49

$

In Stock, only 2 left!

0

Cub Cadet 777-1557

Danger Label (Deck)

$

$

Not available
