P 4018 AV-BH - Poulan Chainsaw, Type 1 (2008-07) Engine Assembly Type 1 Parts Diagram

Chainsaw, Type 1

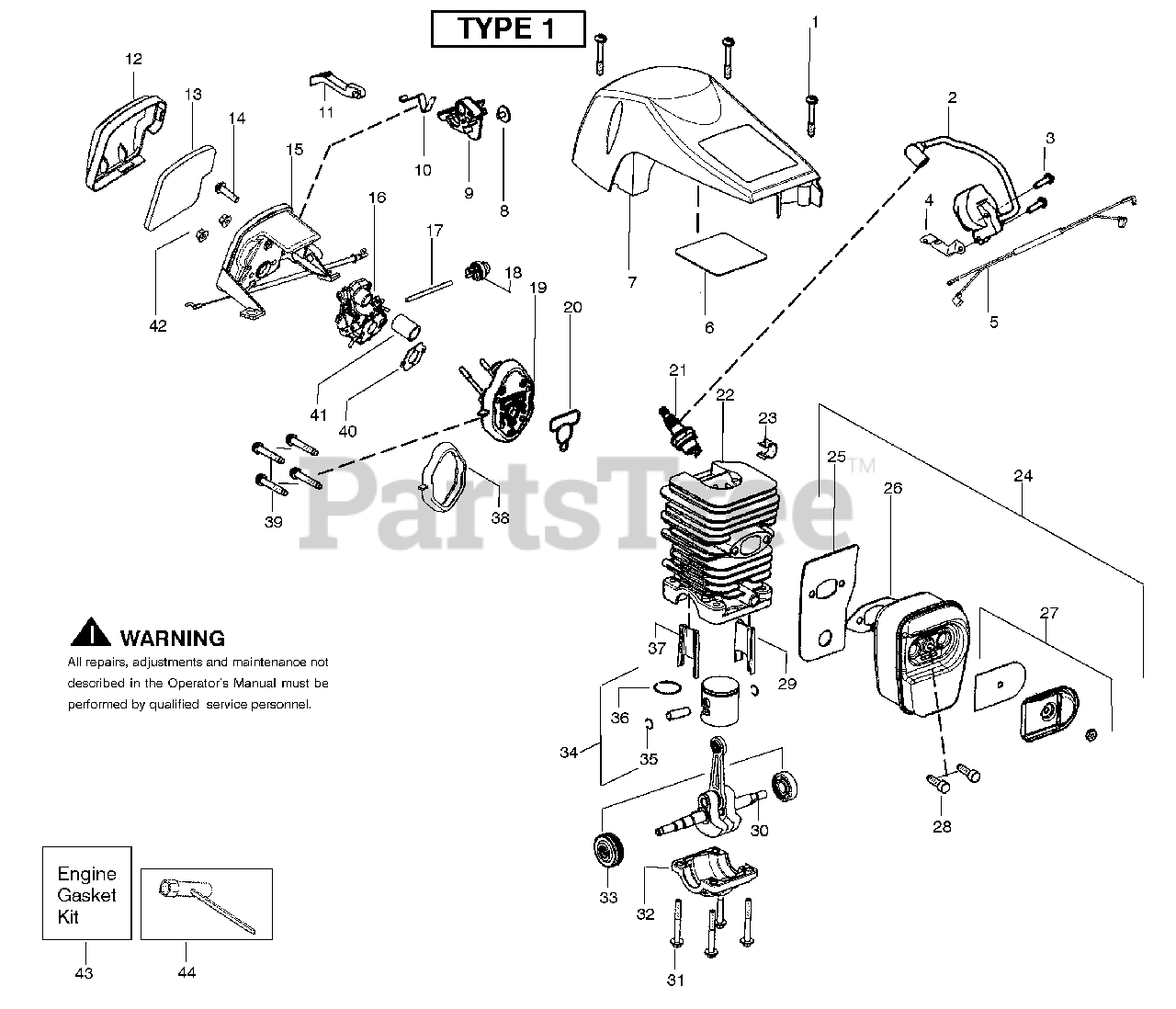

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530039232

Module-Ignition
(Superseded to 573992801)

$

$

Not available

3

Poulan 530016432

Screw

$6.49

$

In Stock, Qty 7

0

4

Poulan 530058661

Strap-Ground

$3.99

$

In Stock, only 1 left!

0

5

Poulan 530057943

Assy-Wire Harness

$7.99

$

In Stock, Qty 10

0

6

Poulan 530055698

Reflector-Tape

$3.99

$

In Stock, only 1 left!

0

7

Poulan 545051501

Shield-Cylinder

Note: (Incl. 1,6)

$14.99

$

Usually ships in 3-10 days

0

8

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530057891

Lever-Ignition Switch

$

$

Not available

10

Poulan 530057908

Spring-Ignition Switch

$6.49

$

In Stock, only 1 left!

0

11

Poulan 530059399

Knob-Choke

$

$

Not available

12

Poulan 530059001

Cover-Air Filter

$6.99

$

In Stock, only 3 left!

0

13

Poulan 530057869

Filter-Air

$6.99

$

In Stock, only 2 left!

0

14

Poulan 530016425

Screw

$6.49

$

In Stock, only 1 left!

0

15

Poulan 530150029

Housing-Air Filter w/cable
(Superseded to 545046901)

$

$

Not available

16

Poulan 530035590

Carburetor Zama W26
(Superseded to 545070601)

$56.99

$

Usually ships in 3-10 days

0

17

Poulan 530069247

Kit-Fuel Line

Note: (Small)

$7.99

$

In Stock, Qty 20+

0

18

Poulan 530047721

Bulb-Purge "snap-in"

$9.49

$

Usually ships in 3-10 days

0

19

Poulan 530071889

Kit-Carb. Adaptor

Note: (Incl. # 20,38,41)

$26.99

$

In Stock, only 1 left!

0

20

Poulan 530071894

Gasket-cyl. o-ring

Note: (kit)

$11.99

$

Usually ships in 3-10 days

0

21

Poulan 952030150

Accy-Spark Plug

Note: (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 530071884

Kit-Cylinder

Note: (Incl. 29,37)

$56.99

$

In Stock, only 1 left!

0

23

Poulan 530058660

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530071887

Kit-Muffler
(Superseded to 545006007)

Note: (Incl. 25,26,27,28)

$26.99

$

Usually ships in 3-10 days

0

25

Poulan 530057942

Backplate-Muffler

$

$

Not available

26

Poulan 530071894

Gasket-Muffler

Note: (kit)

$11.99

$

Usually ships in 3-10 days

0

27

Poulan 530071886

Kit-Spark Arrestor

$

$

Not available

28

Poulan 530016338

Bolt-Muffler

$3.99

$

In Stock, only 4 left!

0

29

Poulan 530057885

Insert-Left Cyl.
(Superseded to 545015301)

Note: (black)

$4.99

$

In Stock, only 4 left!

0

30

Poulan 530012537

Assy-Crankshaft/Rod
(Superseded to 545112901)

$66.99

$

Usually ships in 3-10 days

0

31

Poulan 530016417

Bolt

$6.49

$

In Stock, Qty 5

0

32

Poulan 530057941

Cap-Crankcase

$8.99

$

In Stock, only 1 left!

0

33

Poulan 530056363

Assy-Bearing/Seal

$18.99

$

In Stock, only 2 left!

0

34

Poulan 530071883

Kit-Piston

Note: (Incl. 35,36)

$34.99

$

In Stock, only 4 left!

0

35

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

36

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

37

Poulan 530057886

Insert-Right Cyl.
(Superseded to 545015401)

Note: (gray)

$6.49

$

In Stock, only 3 left!

0

38

Poulan 530071894

Seal-Adaptor

Note: (kit)

$11.99

$

Usually ships in 3-10 days

0

39

Poulan 530016426

Screw

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530071894

Gasket-Carb.

Note: (kit)

$11.99

$

Usually ships in 3-10 days

0

41

Poulan 530057926

Tube-Intake

$5.99

$

In Stock, Qty 5

0

42

Poulan 530016101

Nut-Carb.

$6.49

$

In Stock, only 2 left!

0

43

Poulan 530071894

Kit-Gasket

Note: (Incl . 20,26,38,40)

$11.99

$

Usually ships in 3-10 days

0

44

Poulan 530031163

Wrench-Bar

$9.99

$

In Stock, Qty 12

0

Poulan 545047535

Manual-Operator

Note: Not Shown

$

$

Not available

Poulan 530059905

Decal-Warning
(Superseded to 585994201)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
