P 4003 - Ryobi 18V Hybrid Standing Drain Auger, Rev 03 (2022-02) General Assembly Parts Diagram

18V Hybrid Standing Drain Auger, Rev 03

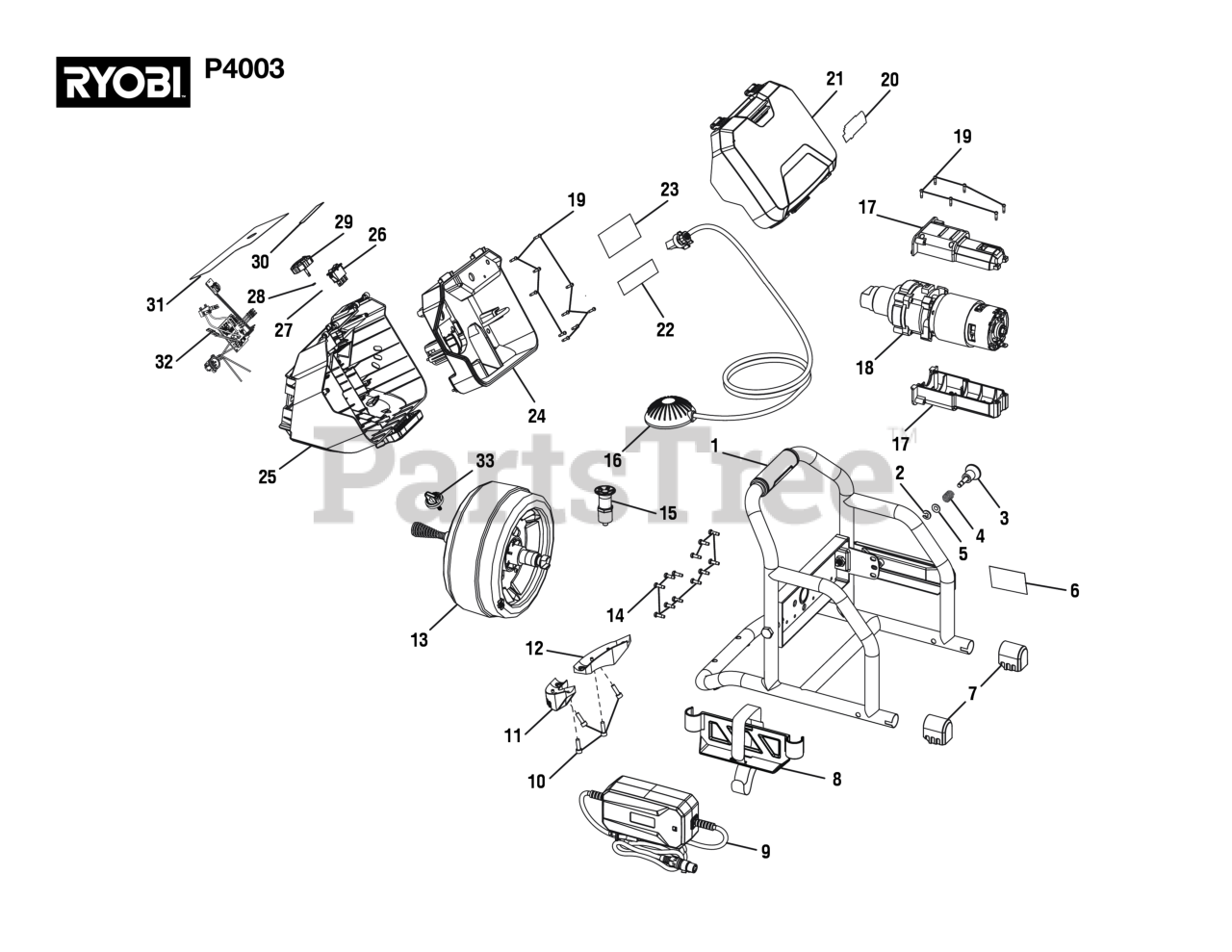

General Assembly Parts Diagram

  • Title

1

Homelite 206700003

Frame Assembly

Note: (Inc. Key No. 6)

$114.99

$

Usually ships in 3-7 days

0

2

Homelite 694722001

E-Ring

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 314546001

Drum Angle Adjustment Knob

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 697474001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 631504002

Washer (OD16 x ID8.1 x 0.5t)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 940304497

Logo Label

$1.64

$

Usually ships in 3-7 days

0

7

Homelite 564999001

Foot (Back)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 204843008

Bracket w/Power Supply Straps

$7.49

$

Usually ships in 3-7 days

0

9

Homelite 720409002

Power Supply

$114.99

$

Usually ships in 3-7 days

0

10

Homelite 660154002

Screw (M6 x 16 mm, Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 564998001

Foot (Right)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 564997001

Foot (Left)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 002094007

Drum and Cable Assembly

Note: China | (Inc. Key No. 33) - Replacement accessory part sold separately - Model #A122AD2)

$

$

Not available

13

Homelite 002094012

Drum and Cable Assembly

Note: Vietnam | (Inc. Key No. 33) - Replacement accessory part sold separately - Model #A122AD2)

$188.99

$

Usually ships in 3-7 days

0

14

Homelite 660024046

Screw (M4 x 12 mm, T20 Torx Pan Hd.)

$

$

Currently unavailable

15

Homelite 204843003

Drum Retention Knob Assembly

$9.49

$

Usually ships in 3-7 days

0

16

Homelite 270155001

Foot Pedal Assembly

$51.99

$

Usually ships in 3-7 days

0

17

Homelite 204843002

Gear Train and Motor Housing Assembly

$6.49

$

Usually ships in 3-7 days

0

18

Homelite 206700002

Motor and Gear Train Assembly

Note: China

$63.99

$

Usually ships in 3-7 days

0

18

Homelite 206700008

Motor and Gear Train Assembly

Note: Vietnam

$49.99

$

Usually ships in 3-7 days

0

19

Homelite 660031017

Screw (M3.5 x 16 mm, T10 Torx Pan Hd.)

$0.99

$

Usually ships in 3-7 days

0

20

Homelite 941007104

Lithium-Hybrid Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 204843006

Battery Compartment Cover

Note: China | (Inc. Key No. 20)

$11.99

$

Usually ships in 3-7 days

0

21

Homelite 204843013

Battery Compartment Cover

Note: Vietnam | (Inc. Key No. 20)

$9.49

$

Usually ships in 3-7 days

0

22

Homelite 941122138

Data Label

Note: China

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 941122848

Data Label

Note: Vietnam

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 941120421

Warning Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 204843005

Housing Cover w/Elastic Band

$12.99

$

Usually ships in 3-7 days

0

25

Homelite 204843007

Housing Support w/Latch

Note: (Inc. Key Nos. 30-31)

$25.99

$

Usually ships in 3-7 days

0

26

Homelite 760271031

Direction of Rotation Switch (Forward/Reverse)

$4.99

$

Usually ships in 3-7 days

0

27

Homelite 671826001

E-Ring

$

$

Currently unavailable

28

Homelite 565175001

O-Ring

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 314439001

Variable Speed Control Dial

$4.49

$

Usually ships in 3-7 days

0

30

Homelite 941122139

Direction of Rotation Label (Forward/Off/Reverse)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 941003542

Scale Label

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 204843004

Circuit Board and Contact Plate Holder Assembly

Note: China

$58.99

$

Usually ships in 3-7 days

0

32

Homelite 204843014

Circuit Board and Contact Plate Holder Assembly

Note: Vietnam

$46.99

$

Usually ships in 3-7 days

0

33

Homelite 313900001

Cable Lock Dial

$4.49

$

Usually ships in 3-7 days

0

Homelite 995000686

Operator's Manual

Note: China -961152987 Vietnam -961153333

$

$

Not available
