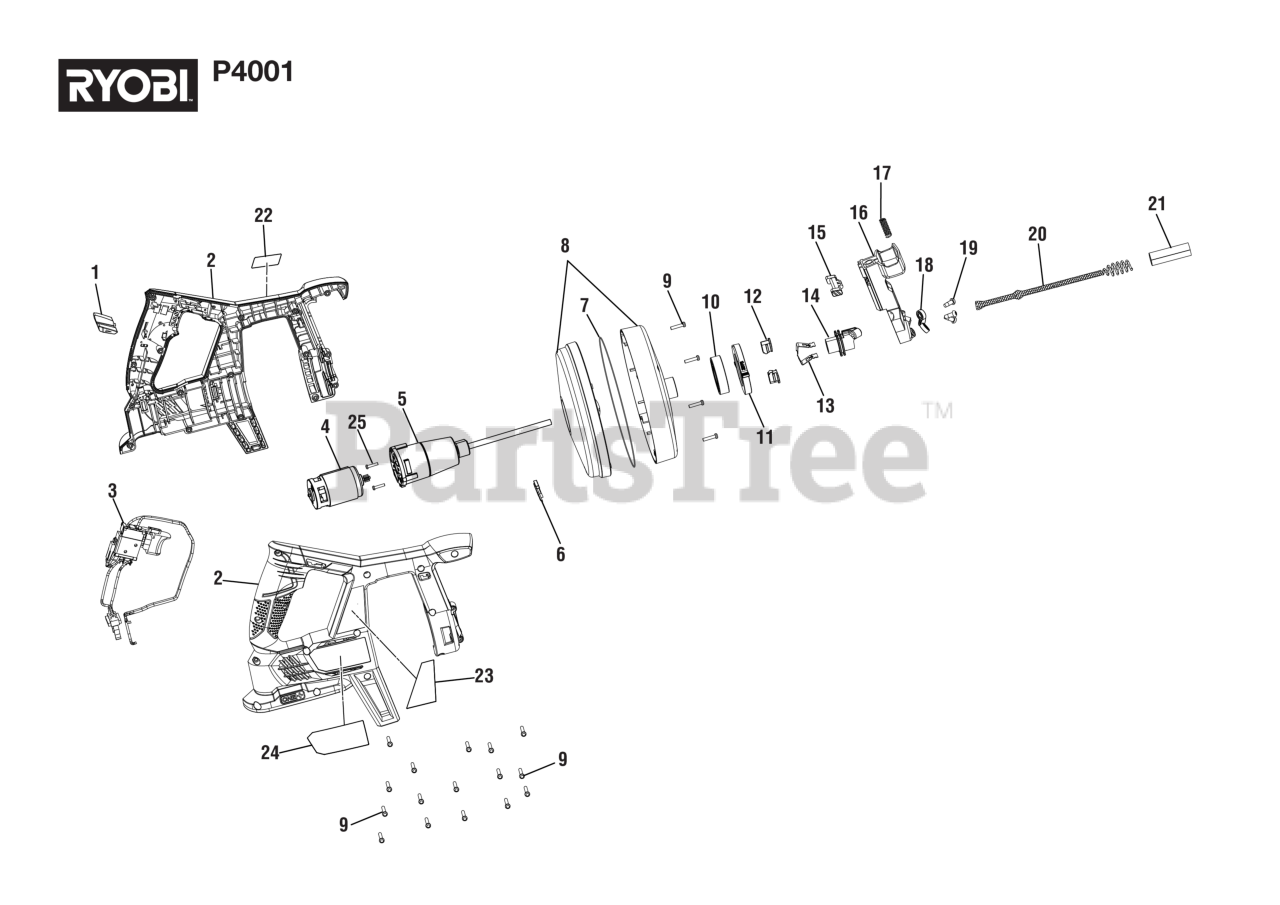

P 4001 - Ryobi 18V Drain Auger, Rev 03 (2022-02) General Assembly Parts Diagram

18V Drain Auger, Rev 03

General Assembly Parts Diagram

  • Title

1

Homelite 517901005

Direction of Rotation Selector (Forward/Reverse/Center Lock)

$0.99

$

Usually ships in 3-7 days

0

2

Homelite 203756001

Motor Housing Assembly

$

$

Not available

3

Homelite 203866001

Switch Assembly

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 206367001

Motor Assembly

Note: China

$14.99

$

Usually ships in 3-7 days

0

4

Homelite 206367004

Motor Assembly

Note: Vietnam

$13.99

$

Usually ships in 3-7 days

0

5

Homelite 206368001

Gear Box Assembly

$18.99

$

Usually ships in 3-7 days

0

6

Homelite 563875001

Drain Tab (Rubber Seal)

$

$

Not available

7

Homelite 563915001

O-Ring

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 206385001

Drum Assembly

Note: (Inc. Key Nos. 6-7 & 9)

$13.99

$

Usually ships in 3-7 days

0

9

Homelite 660031012

Screw (M3.5 x 14 mm, T10 Tox Pan Hd.)

$

$

Currently unavailable

10

Homelite 682014001

Ball Bearing (6005 2Z)

$3.99

$

Usually ships in 3-7 days

0

11

Homelite 529305001

Lock Ring

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 529304001

Slide Block

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 636773001

Lock Spring Plate

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 528941001

Cable Tube

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 352309001

Auto-Feed Lock

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 528940001

Trigger

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 694199001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 681366001

Ball Bearing (605-2RS)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 661075002

Screw (M5 x 12 mm, T25 Torx CH Hd.)

$

$

Currently unavailable

20

Homelite 694797001

Snake Cable (Auger)

$41.99

$

Usually ships in 3-7 days

0

21

Homelite 514481003

Cap

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 940114178

Logo Label

$

$

Currently unavailable

23

Homelite 941121459

Data Label

Note: China

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 941123720

Data Label

Note: Vietnam

$0.99

$

Usually ships in 3-7 days

0

24

Homelite 941120128

Warning Label

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660211006

Screw (M3 x 6 mm, Pan Hd.)

$

$

Currently unavailable

Homelite 991000480

Operator's Manual

Note: Not Shown

$

$

Not available
