P 3818 - Poulan Chainsaw (2012-01) ENGINE Parts Diagram

Chainsaw

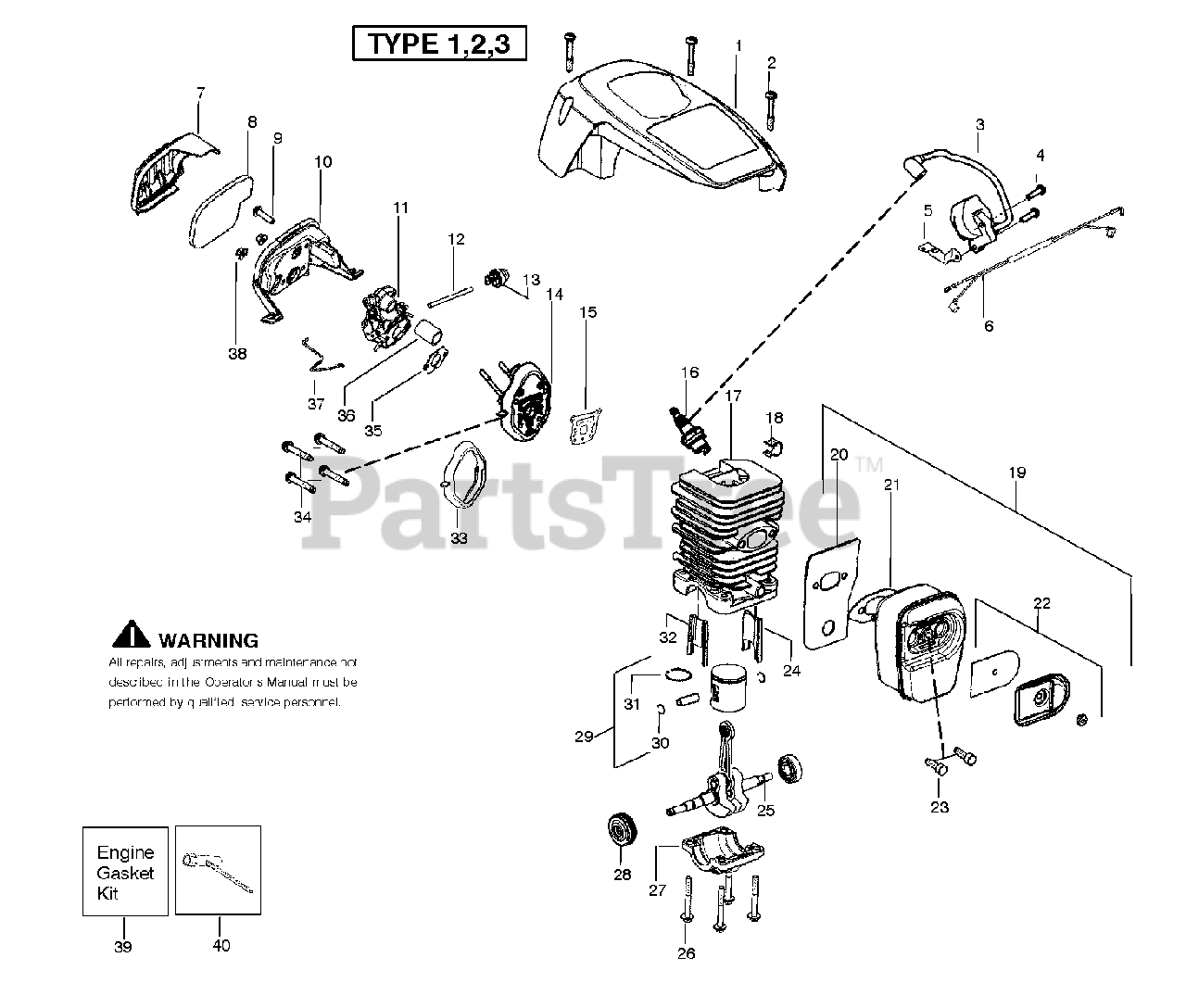

ENGINE Parts Diagram

  • Title

1

Poulan 530058837

SHIELD CYLINDER BLACK

Note: . 2

$15.99

$

Usually ships in 3-10 days

0

2

Poulan 530016153

SCREW

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530071905

KIT

$66.99

$

Usually ships in 3-10 days

0

4

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0

5

Poulan 530047442

GROUND STRAP

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530057943

ASSY WIRE HARNESS

$7.99

$

In Stock, Qty 10

0

7

Poulan 530058687

COVER, AIR FILTER

$5.99

$

In Stock, Qty 9

0

8

Poulan 530057925

FILTER AIR

$5.99

$

In Stock, only 1 left!

0

9

Poulan 530016425

SCREW M5-0.8X16

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530057892

HSG FILTER

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 545070601

CARB ZAMA W26B W/PURGE

Note: ZAMA W-26B. 13

$56.99

$

Usually ships in 3-10 days

0

12

Poulan 530069247

KIT-LINE

Note: SMALL

$7.99

$

In Stock, Qty 20+

0

13

Poulan 530047721

AIR PURGE

$9.49

$

Usually ships in 3-10 days

0

14

Poulan 530071889

KIT CARB ADAPTOR

Note: . 15 33 36

$26.99

$

In Stock, only 1 left!

0

15

Poulan 530071894

KIT GASKET SAS

Note: KIT

$11.99

$

In Stock, only 2 left!

0

16

Poulan 952030150

SPARK PLUG (RCJ-7Y)

Note: RCJ-7Y

$3.99

$

In Stock, Qty 20+

0

17

Poulan 530071884

KIT CYLINDER

Note: . 24 32

$56.99

$

In Stock, only 1 left!

0

18

Poulan 530016136

CLIP-HIGH TENSION LEAD

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 545006007

KIT MUFFLER SAS NON CAT

Note: . 20 21 22 23

$26.99

$

Usually ships in 3-10 days

0

20

Poulan 530057942

PLATE BACK MUFFLER

$

$

Not available

21

Poulan 530071894

KIT GASKET SAS

Note: KIT

$11.99

$

In Stock, only 2 left!

0

22

Poulan 545006056

KIT SPARK ARRESTOR SAS NCAT

$10.99

$

Usually ships in 3-10 days

0

23

Poulan 530016338

SCREW MUFFLER

$3.99

$

In Stock, only 2 left!

0

24

Poulan 545015301

INSERT TRANSFER LEFT

Note: BLACK

$4.99

$

In Stock, only 4 left!

0

25

Poulan 545112901

CRANKSHAFT & ROD ASSY

$66.99

$

Usually ships in 3-10 days

0

26

Poulan 530016417

BOLT M6-1.0 X 25MM

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530057941

CRANKCASE CASTING

$8.99

$

In Stock, only 1 left!

0

28

Poulan 530056363

BEARING & SEAL ASSEMBLY

$18.99

$

In Stock, only 2 left!

0

29

Poulan 530071883

KIT PISTON

Note: . 30 31

$34.99

$

In Stock, only 4 left!

0

30

Poulan 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

31

Poulan 545160401

PISTON RING 42CC

$6.49

$

In Stock, only 2 left!

0

32

Poulan 545015401

INSERT TRANSFER RIGHT

Note: GRAY

$6.49

$

In Stock, only 3 left!

0

33

Poulan 530071894

KIT GASKET SAS

Note: KIT

$11.99

$

In Stock, only 2 left!

0

34

Poulan 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, only 2 left!

0

35

Poulan 530071894

KIT GASKET SAS

Note: KIT

$11.99

$

In Stock, only 2 left!

0

36

Poulan 530057926

TUBE INTAKE

$5.99

$

In Stock, Qty 5

0

37

Poulan 530057909

WIRE THROTTLE

$

$

Not available

38

Poulan 530016101

NUT

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 530071894

KIT GASKET SAS

Note: . 15 21 33 35

$11.99

$

In Stock, only 2 left!

0

40

Poulan 530031163

WRENCH-BAR

$9.99

$

In Stock, Qty 12

0
