P 3816 (966557801) - Poulan Chainsaw (2012-08) CHASSIS LOWER Parts Diagram

Chainsaw

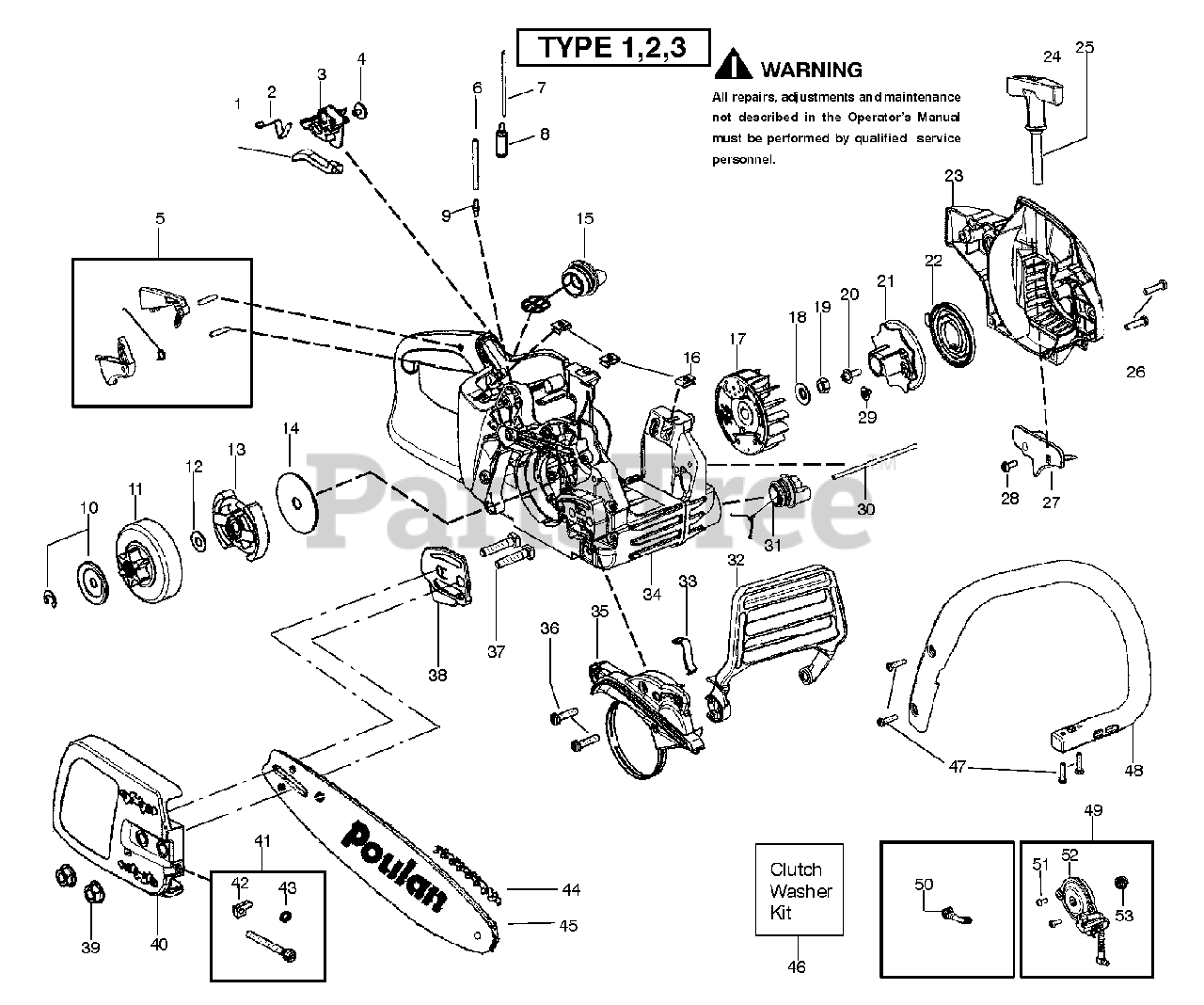

CHASSIS LOWER Parts Diagram

  • Title

1

Poulan 530057893

KNOB CHOKE

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 530057908

SPRING IGNITION SWITCH

$6.49

$

In Stock, only 1 left!

0

3

Poulan 530057891

LEVER IGNITION SWITCH

$

$

Not available

4

Poulan 530016080

SCREW

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530071888

KIT TRIG AND LOCKOUT

$10.99

$

Usually ships in 3-10 days

0

6

Poulan 530069216

LINE KIT

Note: TYPE 1 2

$11.99

$

In Stock, Qty 20+

0

6

Poulan 580727101

KIT FUEL LINE

Note: TYPE 3

$17.99

$

Usually ships in 3-10 days

0

7

Poulan 530069247

KIT-LINE

Note: TYPE 1 2

$7.99

$

In Stock, Qty 20+

0

7

Poulan 580727101

KIT FUEL LINE

Note: TYPE 3

$17.99

$

Usually ships in 3-10 days

0

8

Poulan 530095649

ASSY FUEL PICK UP W/LINE
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

9

Poulan 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 18

0

10

Poulan 000000000

Note: REF 46

$

$

Not available

11

Poulan 530057905

ASSY CLUTCH DRUM 3/8
(Superseded to 501628301)

$17.99

$

In Stock, Qty 8

0

12

Poulan 000000000

Note: REF 46

$

$

Not available

13

Poulan 530057907

ASSY CLUTCH

$13.99

$

In Stock, only 3 left!

0

14

Poulan 576379901

WASHER LARGE CLUTCH-SAS

$

$

Not available

15

Poulan 577858501

FUEL CAP ASSY W/RET
(Superseded to 580940901)

$7.99

$

In Stock, only 3 left!

0

16

Poulan 530015922

CLIP

$6.49

$

In Stock, Qty 5

0

17

Poulan 545016305

ASSEMBLY FLYWHEEL

$36.99

$

Usually ships in 3-10 days

0

18

Poulan 530015127

WASHER-FLYWHEEL

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530016134

NUT-FLYWHEEL

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530015920

SCREW

$6.49

$

In Stock, Qty 7

0

21

Poulan 530057890

STARTER PULLEY

$9.99

$

In Stock, only 1 left!

0

22

Poulan 576657801

SPRING

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 579372001

FAN HOUSING

$14.99

$

In Stock, Qty 5

0

24

Poulan 530056402

HANDLE STARTER

$6.49

$

In Stock, only 1 left!

0

25

Poulan 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

26

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

27

Poulan 578152201

BAFFLE FAN HOUSING

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 545227101

SCREW 6-19X.437

$4.99

$

In Stock, only 2 left!

0

29

Poulan 530016080

SCREW

$6.49

$

In Stock, only 1 left!

0

30

Poulan 530058786

ASSEMBLY-OIL-VENT

$4.99

$

In Stock, only 1 left!

0

31

Poulan 530057236

OIL TANK CAP

$

$

Not available

32

Poulan 530057897

HANDGUARD
(Superseded to 585600501)

$6.49

$

In Stock, Qty 10

0

33

Poulan 530016416

SPRING HANDGUARD

$6.49

$

In Stock, only 3 left!

0

34

Poulan 577141301

ASSEMBLY CHASSIS SAS NAV BLACK

Note: TYPE 1 2

$

$

Not available

34

Poulan 579062601

CHASSIS

Note: TYPE 3

$60.99

$

Usually ships in 3-10 days

0

35

Poulan 530071893

KIT CHAIN BRAKE

$26.99

$

Usually ships in 3-10 days

0

36

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530016133

BOLT

$6.49

$

In Stock, only 2 left!

0

38

Poulan 530057910

PLATE BAR MOUNTING

$5.99

$

In Stock, only 3 left!

0

39

Poulan 530015917

BAR NUT

$3.99

$

In Stock, Qty 10

0

40

Poulan 530058914

HOUSING CLUTCH COVER(PLN GRN)
(Superseded to 530058933)

Note: TYPE 1 2

$17.99

$

In Stock, only 1 left!

0

40

Poulan 530058933

ASSY CLUTCH COVER PLN GREEN

Note: TYPE 3

$17.99

$

In Stock, only 1 left!

0

41

Poulan 530069611

RETAINER

$9.49

$

In Stock, Qty 13

0

42

Poulan 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 20+

0

43

Poulan 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

44

Poulan 952051211

ACCY-PLN CHN 16" 91VJ 56DL 3/8
(Superseded to 581562201)

$22.99

$

In Stock, only 2 left!

0

45

Poulan 952044942

BAR 16"SN .050 3/8 INTZ

Note: TYPE 1 2

$

$

Not available

45

Poulan 952044370

BAR 16" .050 3/8 .041 56DL

Note: TYPE 3

$

$

Not available

46

Poulan 530071945

KIT SAS CLUTCH WASHER

$6.49

$

In Stock, Qty 8

0

47

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

48

Poulan 530057888

HANDLE FRONT

$

$

Not available

49

Poulan 530071891

KIT OIL PUMP

$27.99

$

Usually ships in 3-10 days

0

50

Poulan 530057924

ASSY PICK UP OIL TANK

$6.49

$

In Stock, Qty 9

0

51

Poulan 545227101

SCREW 6-19X.437

$4.99

$

In Stock, only 2 left!

0

52

Poulan 530057931

ASSY OIL PUMP
(Superseded to 581071401)

$20.99

$

In Stock, only 1 left!

0

53

Poulan 530037820

WORM GEAR

$6.49

$

In Stock, only 3 left!

0
