P 3500 - Poulan String Trimmer Shaft & Handle Parts Diagram

String Trimmer

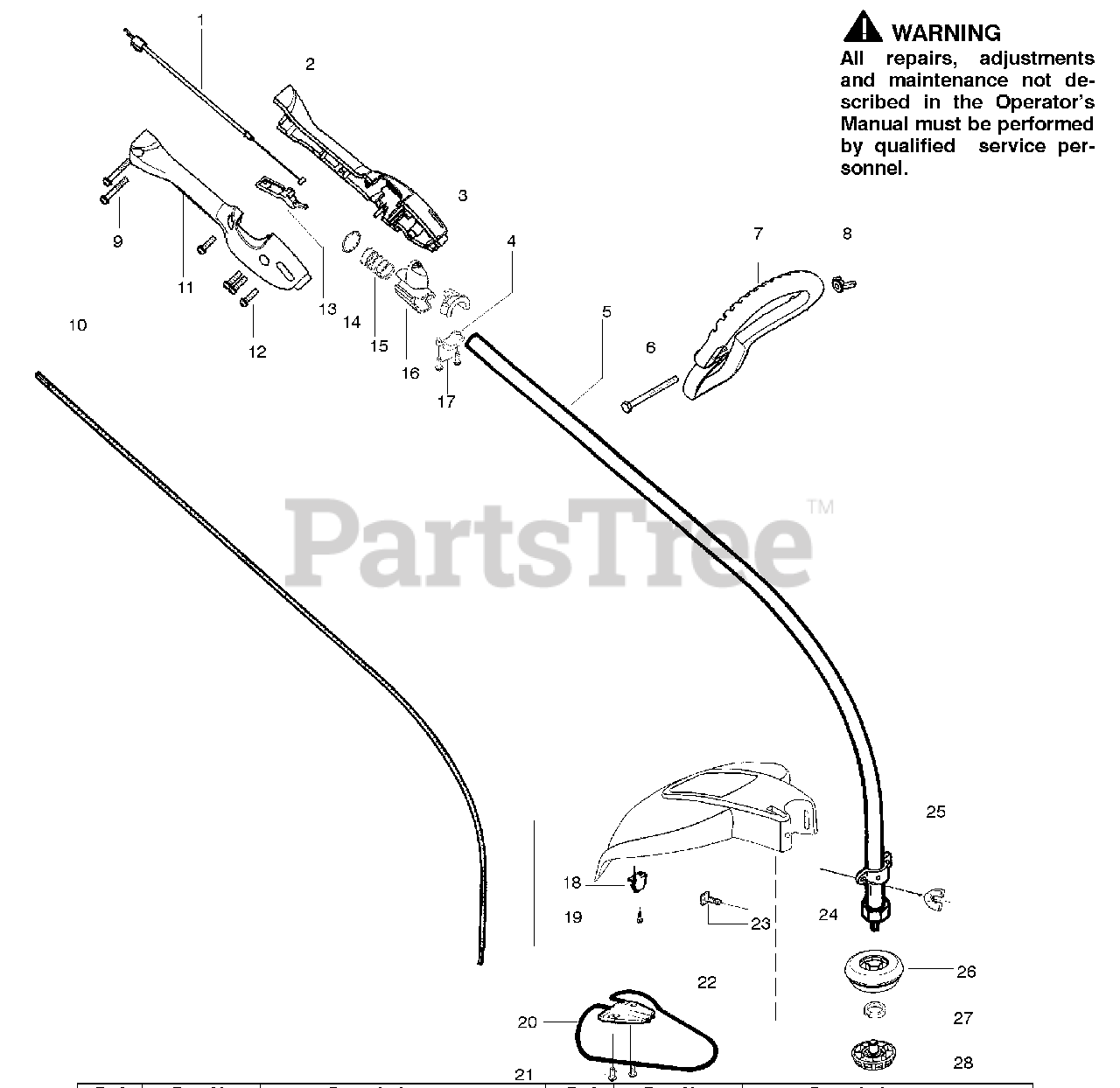

Shaft & Handle Parts Diagram

  • Title
1

Poulan 530057785

Assy-Throttle Cable

$

$

Not available

2

Poulan 530058747

Throttle Hsg. (Left)

$

$

Not available

3

Poulan 530057562

Locator- left

$

$

Not available

4

Poulan 530057563

Locator- right

$

$

Not available

5

Poulan 545180801

Kit-Drive Shaft Hsg.

Note: (incl. 3,4,14,15,16,17)

$

$

Not available

6

Poulan 530016422

Bolt-Handle

$

$

Not available

7

Poulan 530058752

Handle-Assist

$9.99

$

Usually ships in 3-10 days

0

8

Poulan 530016152

Wingnut-Handle
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

10

Poulan 545007502

Shaft- Flex

$15.99

$

Usually ships in 3-10 days

0

11

Poulan 530058748

Throttle Hsg. (Right)

$

$

Not available

12

$6.49

$

In Stock, Qty 16

0

13

$

$

Not available

14

Poulan 530016405

Nut-Push

$

$

Not available

15

Poulan 530016407

Spring-Actuator

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530059247

Actuator

$4.99

$

In Stock, only 1 left!

0

17

$8.99

$

In Stock, only 1 left!

0

18

Poulan 545081862

Kit - Line Limiter

$6.99

$

In Stock, only 2 left!

0

19

Poulan 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 16

0

20

Poulan 530054459

Assy-Wire Guard

$6.49

$

Usually ships in 3-10 days

0

21

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 530071749

Kit-Shield

Note: (Incl.18,19,23,25)

$24.99

$

Usually ships in 3-10 days

0

23

Poulan 530015820

Bolt-Shield

$4.99

$

In Stock, only 1 left!

0

24

Dust Cup

$

$

Not available

25

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

26

Poulan 952701720

Accy- Spool w/Line

$

$

Not available

27

Poulan 530403949

Guide-Line

$6.49

$

In Stock, only 2 left!

0

28

Poulan 530054223

Assy-Cap

$9.99

$

In Stock, Qty 6

0

28

Poulan 545154718

Operator Manual

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
