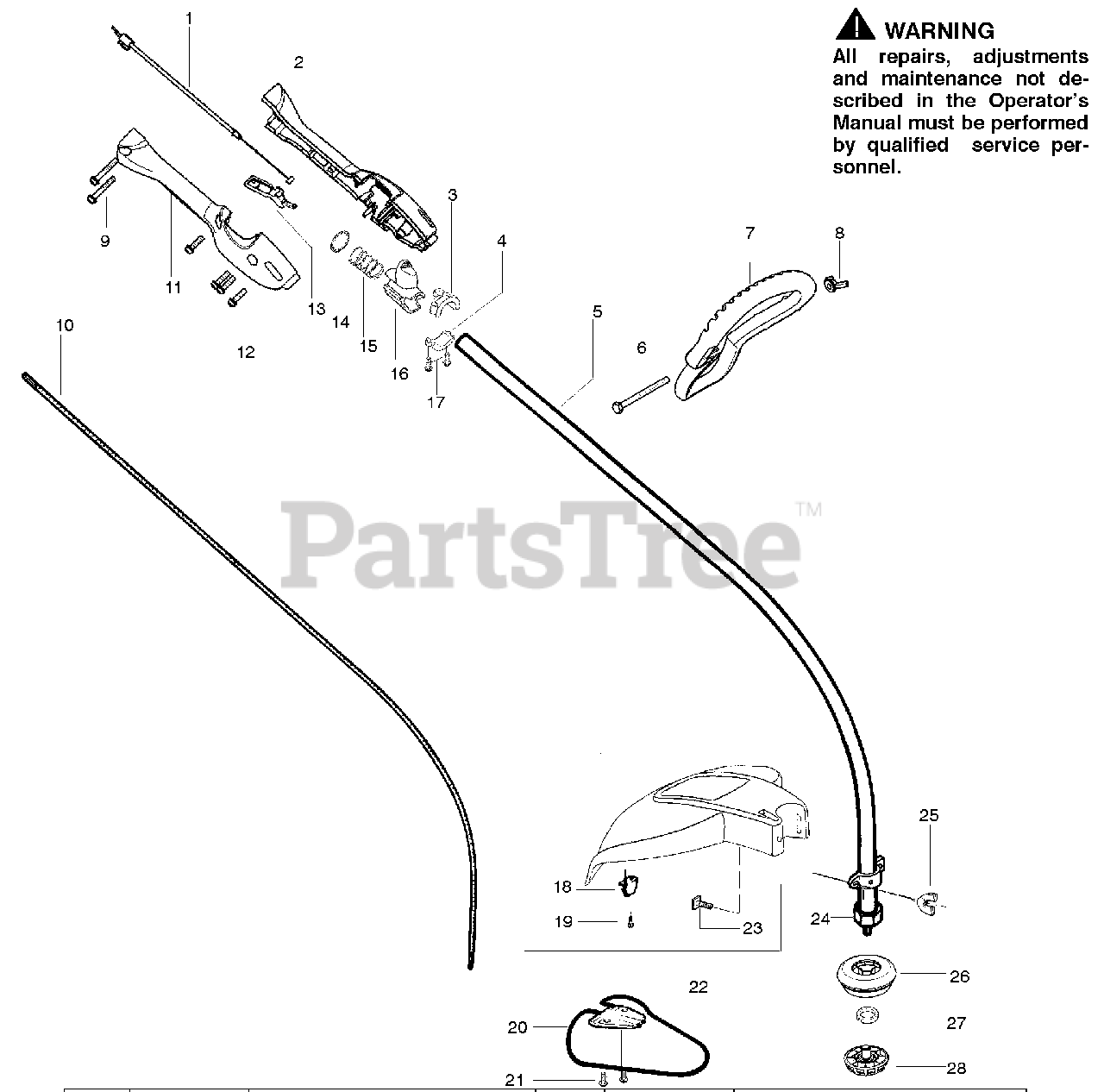

P 3500 - Poulan String Trimmer (2007-10) Shaft Parts Diagram

String Trimmer

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530057785

Assy-Throttle Cable

$

$

Not available

2

Electrolux/AYP 530058747

Throttle Hsg. (Left)

$

$

Not available

3

Electrolux/AYP 530057562

Locator- left

$

$

Not available

4

Electrolux/AYP 530057563

Locator- right

$

$

Not available

5

Electrolux/AYP 530071779

Assy-Drive Shaft Hsg.

Note: (incl. 3,4,14,15,16,17,24)

$

$

Not available

6

Electrolux/AYP 530016422

Bolt-Handle

$

$

Not available

7

Electrolux/AYP 530058752

Handle-Assist

$9.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530016152

Wingnut-Handle
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

9

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 545007502

Shaft- Flex

$15.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530058748

Throttle Hsg. (Right)

$

$

Not available

12

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

13

Electrolux/AYP 530049107

Trigger

$

$

Not available

14

Electrolux/AYP 530016405

Nut-Push

$

$

Not available

15

Electrolux/AYP 530016407

Spring-Actuator

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530057551

Actuator

$

$

Not available

17

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 545081862

Kit - Line Limiter

$6.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 16

0

20

Electrolux/AYP 530054459

Assy-Wire Guard

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530016179

Screw

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530071749

Kit-Shield

Note: (Incl.18,19,23,25)

$24.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530015820

Bolt-Shield

$4.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 530057559

Dust Cup

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 952701720

Accy- Spool w/Line

$

$

Not available

27

Electrolux/AYP 530403949

Guide-Line

$6.49

$

In Stock, only 2 left!

0

28

Electrolux/AYP 530054223

Assy-Cap

$9.99

$

In Stock, Qty 6

0

28

Electrolux/AYP 545154718

Operator Manual

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545144402

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
