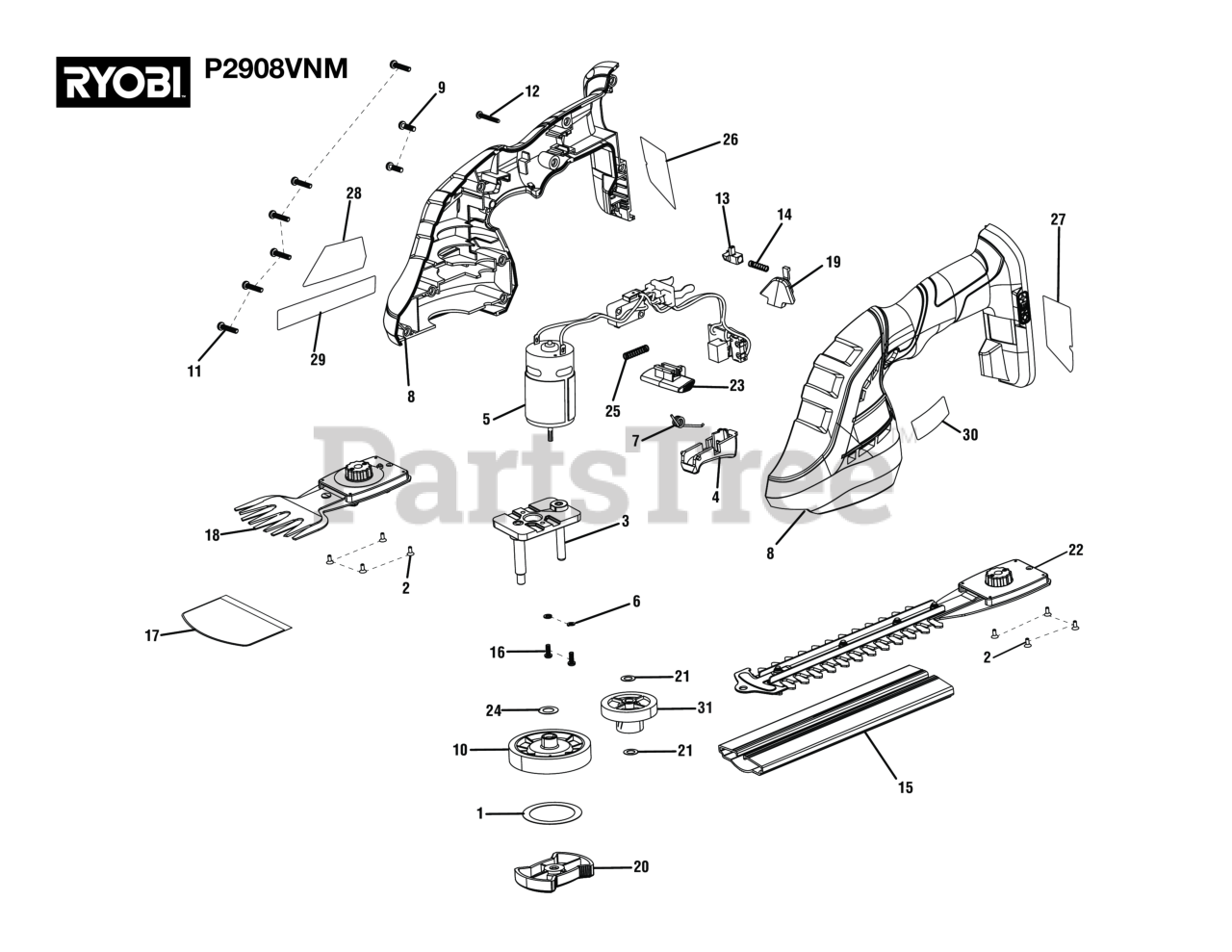

P 2908 VNM (108712001) - Ryobi 18V Hedge Trimmer, Rev 02 (2021-11) General Assembly Parts Diagram

18V Hedge Trimmer, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 672729001

O-Ring

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 660204013

Screw (M3 x 8.5 mm, Flat Hd.)

$

$

Not available

3

Homelite 302347002

Motor Mount Assembly

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 516708006

Trigger

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 318788001

Motor, Circuit Board, and Switch Assembly

$65.99

$

Usually ships in 3-7 days

0

6

Homelite 670028003

Washer (OD5.7 x ID3.1 x 0.8t)

$

$

Currently unavailable

7

Homelite 672752001

Trigger Spring

$

$

Not available

8

Homelite 318823001

Housing Assembly (Inc. Key Nos. 26-30)

Note: (Inc. Key Nos. 26-30)

$39.99

$

Usually ships in 3-7 days

0

9

Homelite 660206058

Screw (M3.5 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 516711001

Gear

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 660206059

Screw, M36.5x16mm, Pan. Head, Steel

$

$

Not available

12

Homelite 660203059

Screw (M3 x 20 mm, Pan Hd.)

$1.86

$

Usually ships in 3-7 days

0

13

Homelite 532175002

Slider for Switch

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 679034001

Compression Spring (Internal Tooth)

$1.99

$

In Stock, Qty 5

0

15

Homelite 516819002

Scabbard

$6.49

$

Usually ships in 3-7 days

0

16

Homelite 660086009

Screw, M3x8mm, Steel

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 903318002

Sheath

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 318824001

Grass Shear Blade Assembly

$49.99

$

Usually ships in 3-7 days

0

19

Homelite 566396001

Rubber Socket Port Cover

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 302311003

Knob Assembly

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

22

Homelite 302350007

Hedge Trimmer Blade Assembly

$94.99

$

Usually ships in 3-7 days

0

23

Homelite 546479001

Lock-Off Button

$1.99

$

Usually ships in 0 days

0

24

Homelite 672728001

Washer, OD15xID8.4xT0.3

$

$

Not available

25

Homelite 670499001

Compression Spring

$

$

Currently unavailable

26

Homelite 941097017

Data Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 941097028

QR Label

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 941097021

Danger Label

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 941097020

Icon Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 940705488

Logo Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 516712001

Step Gear

$4.99

$

Usually ships in 3-7 days

0

Homelite 998000734

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
