P 2907 VNM (108641001) - Ryobi 18V Hedge Trimmer, Rev 03 (2022-02) General Assembly Parts Diagram

18V Hedge Trimmer, Rev 03

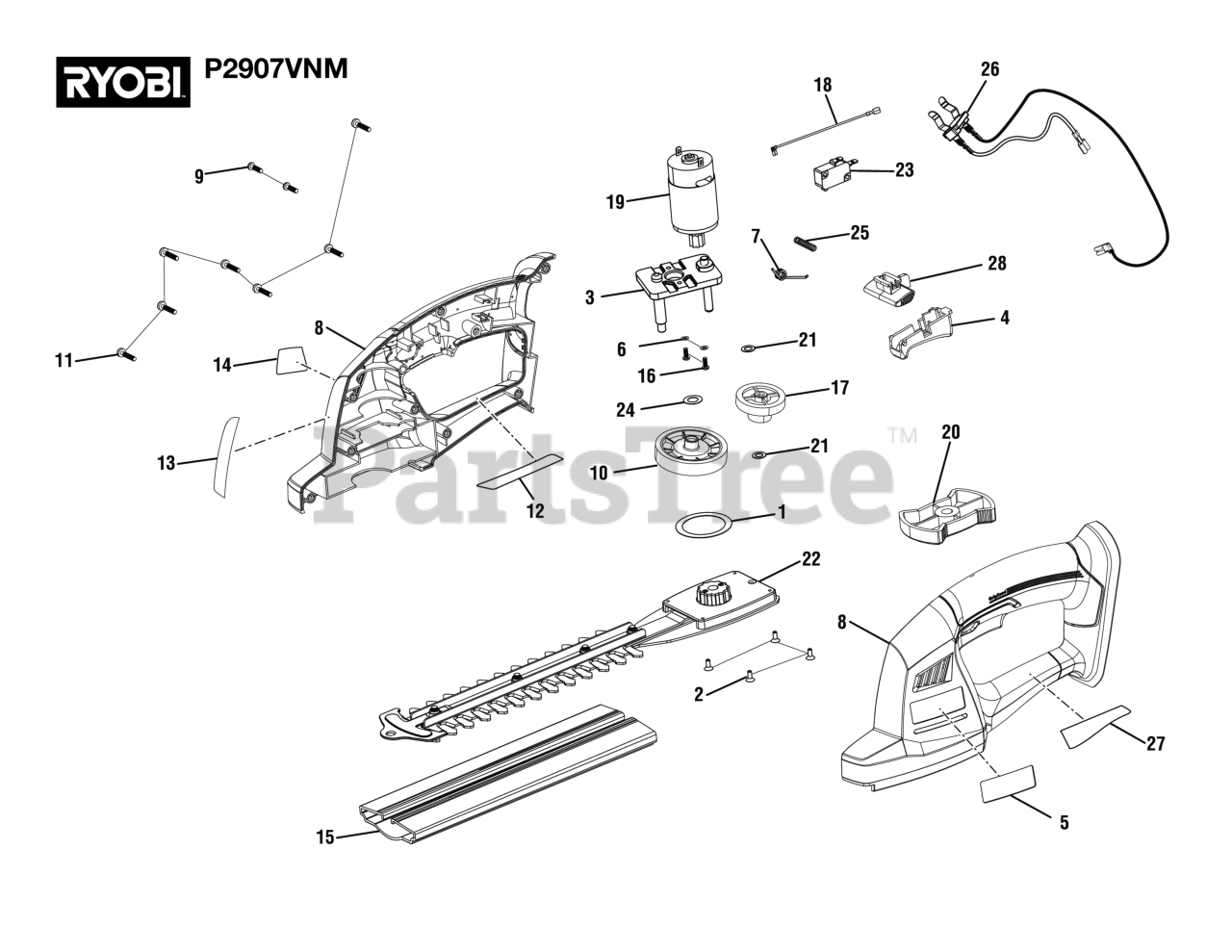

General Assembly Parts Diagram

  • Title

1

Homelite 672729001

O-Ring

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 660204013

Screw (M3 x 8.5 mm, Flat Hd.)

$

$

Not available

3

Homelite 302347001

Motor Mount Assembly

$

$

Not available

4

Homelite 516708004

Trigger

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 940705511

Logo Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 670028003

Washer (OD5.7 x ID3.1 x 0.8t)

$

$

Currently unavailable

7

Homelite 672752001

Trigger Spring

$

$

Not available

8

Homelite 316961001

Housing Assembly

Note: (Inc. Key Nos. 5, 12-14 & 27)

$28.99

$

Usually ships in 3-7 days

0

9

Homelite 660206058

Screw (M3.5 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 516711001

Gear

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 660206059

Screw, M36.5x16mm, Pan. Head, Steel

$

$

Not available

12

Homelite 941657029

Warning Label (Right, P2900VNM)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 941657025

Icon Label

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 941588702

Data Label

$

$

Currently unavailable

15

Homelite 516819003

Scabbard

$6.99

$

Usually ships in 3-7 days

0

16

Homelite 660086009

Screw, M3x8mm, Steel

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 516712001

Step Gear

$4.99

$

Usually ships in 3-7 days

0

18

Homelite 290044002

Receptacle and Wire Assembly

$7.99

$

Usually ships in 3-7 days

0

19

Homelite 230172001

Motor and Pinion Assembly

$33.99

$

Usually ships in 3-7 days

0

20

Homelite 302311001

Knob Assembly

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

22

Homelite 302350003

Hedge Trimmer Blade Assembly

Note: (Inc. Key No. 2 & 15)

$65.99

$

Usually ships in 3-7 days

0

23

Homelite 760689001

On/Off Switch

$5.49

$

Usually ships in 3-7 days

0

24

Homelite 672728001

Washer, OD15xID8.4xT0.3

$

$

Not available

25

Homelite 670499001

Compression Spring

$

$

Currently unavailable

26

Homelite 316962001

Contact Plate Holder Assembly

$9.99

$

Usually ships in 3-7 days

0

27

Homelite 941657026

Danger Label (Left, P2900VNM)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 546479001

Lock-Off Button

$1.99

$

Usually ships in 0 days

0

Homelite 998000279

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
