P 2905 (107419018) - Ryobi 18V Outdoor Patio Cleaner, Rev 03 (2021-06) General Assembly Parts Diagram

18V Outdoor Patio Cleaner, Rev 03

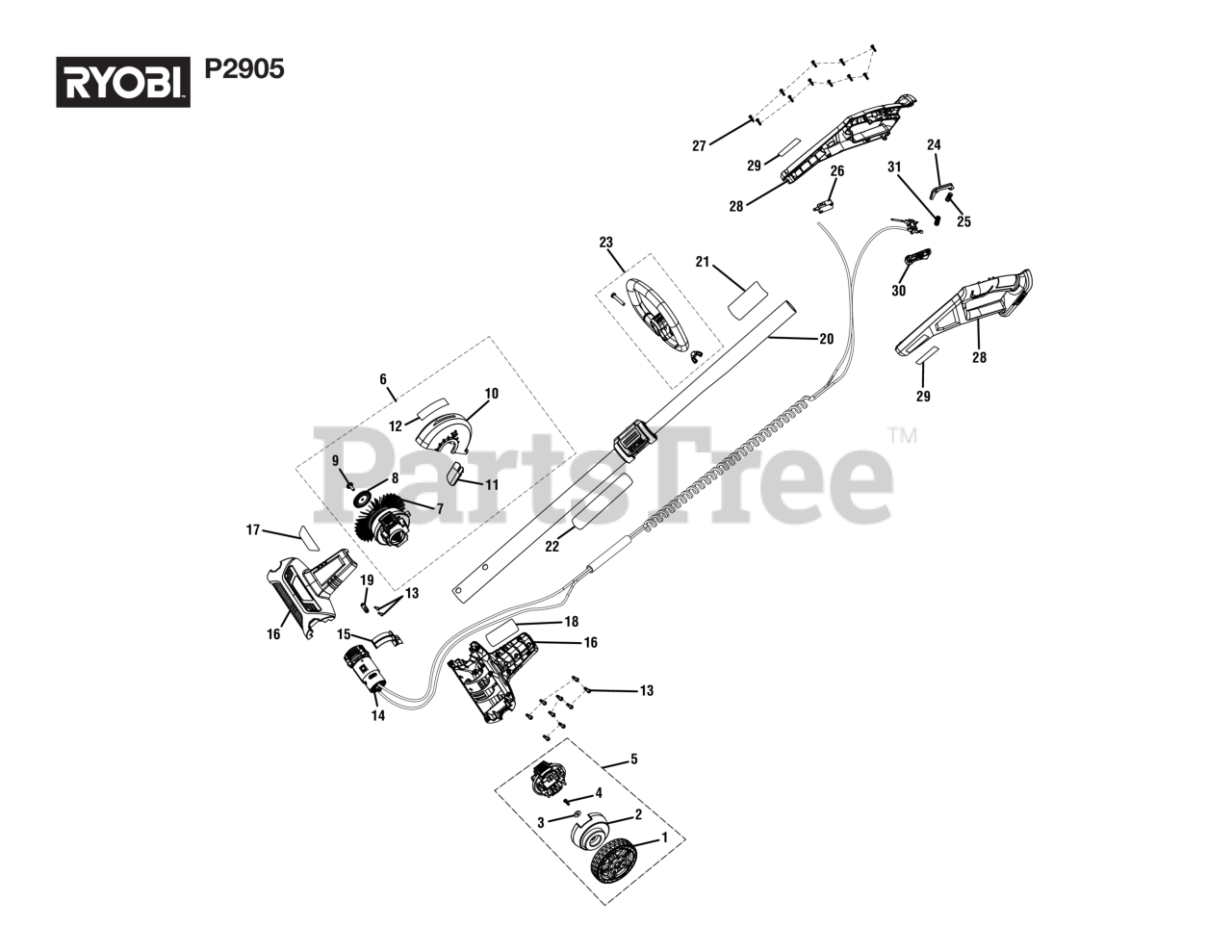

General Assembly Parts Diagram

  • Title

1

Homelite 536760001

Wheel

$5.99

$

Usually ships in 3-7 days

0

2

Homelite 536762001

Base

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 678341001

Washer (OD14 x ID5.1 x 1.4t)
(Superseded to 099069001006)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

5

Homelite 314185002

Wheel Assembly (Inc. Key Nos. 1-4)

$22.99

$

Usually ships in 3-7 days

0

6

Homelite 205523001

Wire Brush Assembly (Inc. Key Nos. 7-12)

$70.99

$

Usually ships in 3-7 days

0

7

Homelite 314184001

Wire Brush

$18.99

$

Usually ships in 3-7 days

0

8

Homelite 613916001

Lock Plate (Left)

$4.49

$

Usually ships in 3-7 days

0

9

Homelite T662835001

Screw (M5 x 13 mm, Hex Recess Hd.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 536758001

Guard (Inc. Key No. 12)

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 564961001

Splash Guard

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 941263009

Icon Label

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660208052

Screw (M4 x 16 mm, Pan Hd.)
(Superseded to 089041033087)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 205519001

Motor and Gear Assembly

$72.99

$

Usually ships in 3-7 days

0

15

Homelite 536684001

Air Channel

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 205522001

Motor Housing Assembly (Inc. Key Nos. 17-18)

$10.99

$

Usually ships in 3-7 days

0

17

Homelite 940705489

Logo Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 941263008

Data Label

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 205518001

Telescope Shaft Assembly (Inc. Key Nos. 21-27)

$21.99

$

Usually ships in 3-7 days

0

21

Homelite 941263010

Icon/Warning Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 941263011

Shaft Warning Label (FR/SP)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 308991003

Auxiliary Handle Assembly

$13.99

$

Usually ships in 3-7 days

0

24

Homelite 525492001

Lock-Out Button

$

$

Not available

25

Homelite 679083001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 760279001

Micro Switch

$

$

Currently unavailable

27

Homelite 660206055

Screw (M3.5 x 14 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 205517001

Rear Handle Assembly (Inc. Key No. 29)

$12.99

$

Usually ships in 3-7 days

0

29

Homelite 940705492

Logo Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 525491002

Switch Trigger

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 679002002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000571

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
