P 2808 VNM (108544001) - Ryobi 18V Electrostatic Sprayer, Rev 01 (2021-10) General Assembly Parts Diagram

18V Electrostatic Sprayer, Rev 01

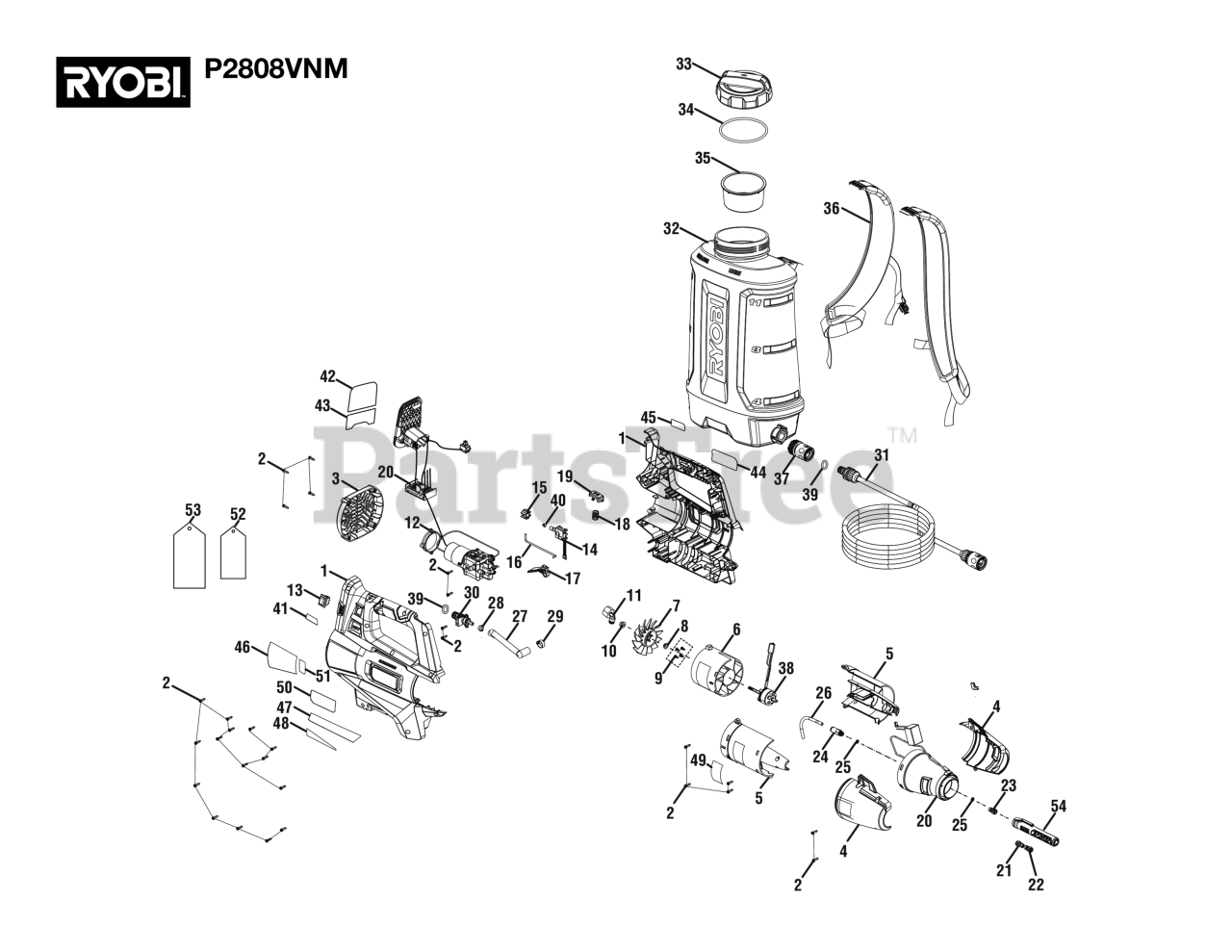

General Assembly Parts Diagram

  • Title

1

Homelite 205544007

Housing Assembly (Inc. Key Nos. 44-48 & 50-51)

Note: (Inc. Key Nos. 44-48 & 50-51)

$92.99

$

Usually ships in 3-7 days

0

2

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

3

Homelite 535434001

Blower Cover

$7.49

$

Usually ships in 3-7 days

0

4

Homelite 205544002

Outlet Tube Assembly

$16.99

$

Usually ships in 3-7 days

0

5

Homelite 205544003

Cone Assembly (Inc. Key No. 49)

Note: (Inc. Key No. 49)

$24.99

$

Usually ships in 3-7 days

0

6

Homelite 535439001

Motor Mount

$12.99

$

Usually ships in 3-7 days

0

7

Homelite 539703001

Fan

$7.99

$

Usually ships in 3-7 days

0

8

Homelite 612854002

Bushing

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 662472001

Screw (M3 x 8 mm, Pan Hd.)

$

$

Currently unavailable

10

Homelite 678774009

Flange Lock Nut (M6 x 1 mm)

$1.99

$

In Stock, only 1 left!

0

11

Homelite 699350001

Adapter

$21.99

$

Usually ships in 3-7 days

0

12

Homelite 535447001

Pump Mount

$

$

Currently unavailable

13

Homelite 760748001

On/Off Switch

$

$

Currently unavailable

14

Homelite 760649006

Switch

$20.99

$

Usually ships in 3-7 days

0

15

Homelite 534149001

Switch Cap

$

$

Not available

16

Homelite 699346001

Trigger Rod

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 535435001

Switch Trigger

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 699363001

Spring

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 535436001

Spray Button

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 205544006

Motor Controller, Switch, and Pump Assembly (Inc. Key Nos. 42-43)

Note: (Inc. Key Nos. 42-43)

$347.99

$

Usually ships in 0 days

0

21

Homelite 699365001

Nozzle (Medium)

$48.99

$

Usually ships in 3-7 days

0

22

Homelite 699364001

Nozzle (High)

$48.99

$

Usually ships in 3-7 days

0

23

Homelite 699347001

Nozzle (Low)

$48.99

$

Usually ships in 3-7 days

0

24

Homelite 699349001

Push Connect

$78.99

$

Usually ships in 3-7 days

0

25

Homelite 566034001

O-Ring

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 535444001

Tube

$1.99

$

Usually ships in 0 days

0

27

Homelite 535445001

Tube

$12.99

$

Usually ships in 0 days

0

28

Homelite 699050002

Clamp

$1.99

$

Usually ships in 0 days

0

29

Homelite 635294005

Clamp

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 542169001

Male Quick Connect

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 205544004

Tube Assembly (Inc. Key No. 39)

Note: (Inc. Key No. 39)

$26.99

$

Usually ships in 3-7 days

0

32

Homelite 205544005

Tank Assembly (Inc. Key Nos. 33-37)

Note: (Inc. Key Nos. 33-37)

$125.99

$

Usually ships in 3-7 days

0

33

Homelite 317473001

Tank Cap Assembly

$

$

Currently unavailable

34

Homelite 565927001

O-Ring

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 542508001

Inlet Filter

$2.49

$

Usually ships in 0 days

0

36

Homelite 317077001

Strap

$37.99

$

Usually ships in 3-7 days

0

37

Homelite 330273002

Shut-off Valve

$4.99

$

Usually ships in 3-7 days

0

38

Homelite 742667002

Motor

$150.99

$

Usually ships in 3-7 days

0

39

Homelite 570742189

O-Ring (ID11.3 x CS2.5)

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 698203001

Compression Spring for Trigger

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 941588843

On/Off Label

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 941588848

Data Label

$

$

Not available

43

Homelite 941588788

Clean Tank and Lines Label

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 940705532

RYOBI ONE+ HP Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940705564

ONE+ HP Logo Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 941263019

Icon/Danger Label

$

$

Not available

47

Homelite 941263020

Warning Label (French)

$

$

Not available

48

Homelite 941263021

Warnings Label (Spanish)

$

$

Not available

49

Homelite 941263022

Caution w/Arrow Label

$

$

Currently unavailable

50

Homelite 941263023

Shoes Caution Label

$

$

Not available

51

Homelite 941263024

QR Label

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 918013132

Instruction Tag (Portuguese)

$

$

Currently unavailable

53

Homelite 918013133

Instruction Tag

$

$

Currently unavailable

54

Homelite 535443001

ES Blower Nozzle Tool

$

$

Currently unavailable

Homelite 998000577

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
