P 2806 (107450001) - Ryobi 18V Backpack Sprayer, Rev 02 (2021-02) General Assembly Parts Diagram

18V Backpack Sprayer, Rev 02

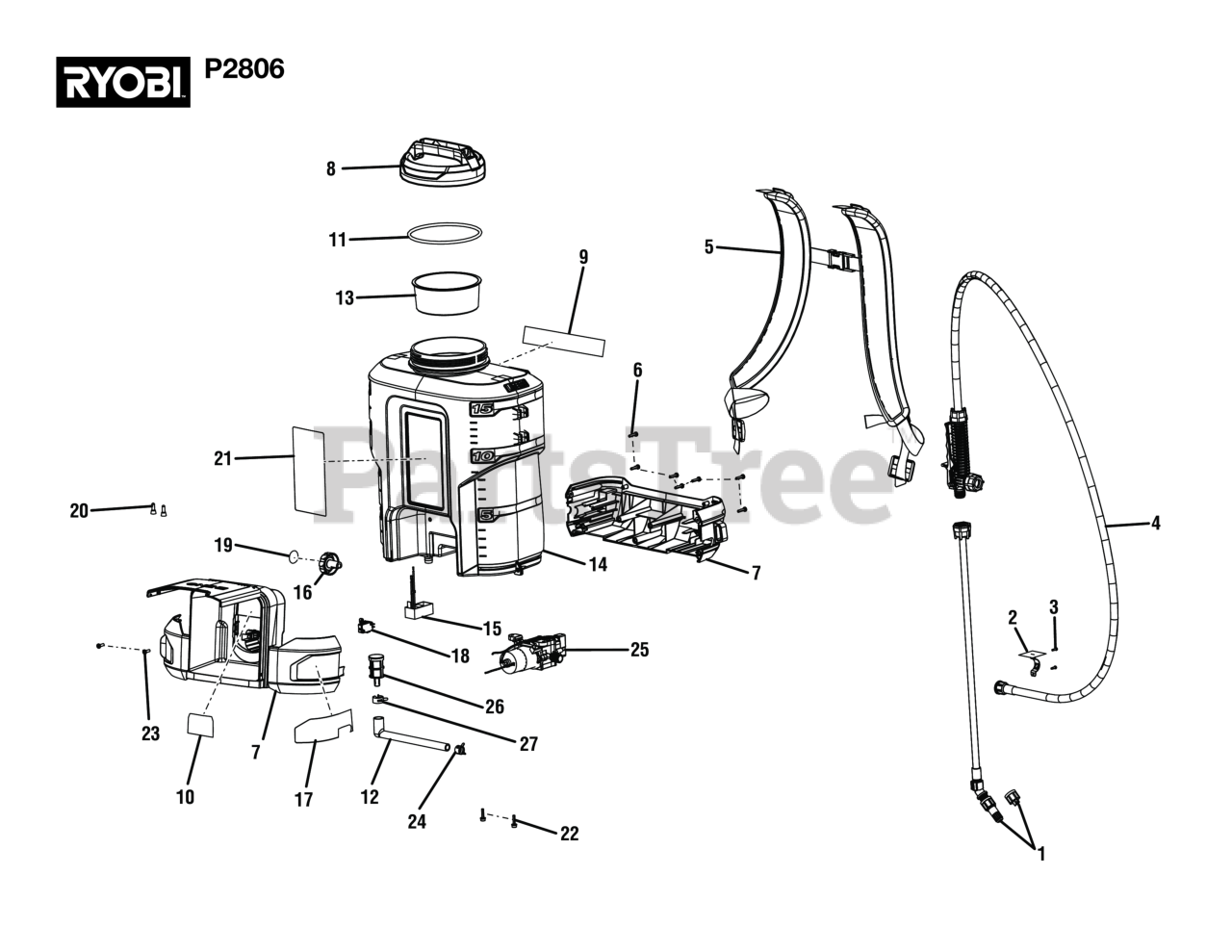

General Assembly Parts Diagram

  • Title

1

Homelite 313969003

Nozzle and Wand Assembly

$20.99

$

Usually ships in 3-7 days

0

2

Homelite 659603001

Fastener

$1.99

$

In Stock, Qty 5

0

3

Homelite 660230011

Screw (M3 x 10 mm, T10 Torx Hd.)

$

$

Currently unavailable

4

Homelite 316622001

Handle and Hose Assembly

$

$

Not available

5

Homelite 316455001

Straps

$37.99

$

Usually ships in 3-7 days

0

6

Homelite 660208049

Screw (M4 x 22 mm Pan Hd.)

$

$

Currently unavailable

7

Homelite 317225001

Housing Assembly (Inc. Key Nos. 10 & 17)

Note: (Inc. Key Nos. 10 & 17)

$41.99

$

Usually ships in 3-7 days

0

8

Homelite 317226001

Tank Lid Assembly (Inc. Key No. 11)

Note: (Inc. Key No. 11)

$21.99

$

In Stock, only 1 left!

0

9

Homelite 941015098

Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 941588779

Data Label

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 565777001

Rubber Gasket

$4.99

$

In Stock, only 2 left!

0

12

Homelite 541717001

Tube

$6.99

$

Usually ships in 3-7 days

0

13

Homelite 541716001

Inlet Filter

$

$

Currently unavailable

14

Homelite 317227001

Tank Assembly (Inc. Key Nos. 9 & 21)

Note: (Inc. Key Nos. 9 & 21)

$70.99

$

Usually ships in 3-7 days

0

15

Homelite 317228001

Flow Rate Control Assembly

$

$

Not available

16

Homelite 317230001

Adjustable Switch Knob Assembly (Inc. Key No. 19)

Note: (Inc. Key No. 19)

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 941588777

Warning Label (FR/SP)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 760746001

Micro Switch

$

$

Not available

19

Homelite 941588778

On\Off Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 941588780

Logo Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 660968001

Screw w/Washer (M4 x 19 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 660033002

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 659631001

Hose Clamp on Pump

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 316620001

Motor and Pump Assembly

$

$

Currently unavailable

26

Homelite 316757001

Filter Assembly

$5.99

$

Usually ships in 3-7 days

0

27

Homelite 659630001

Hose Clamp on Tank

$1.99

$

In Stock, only 1 left!

0

Homelite 998000325

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
