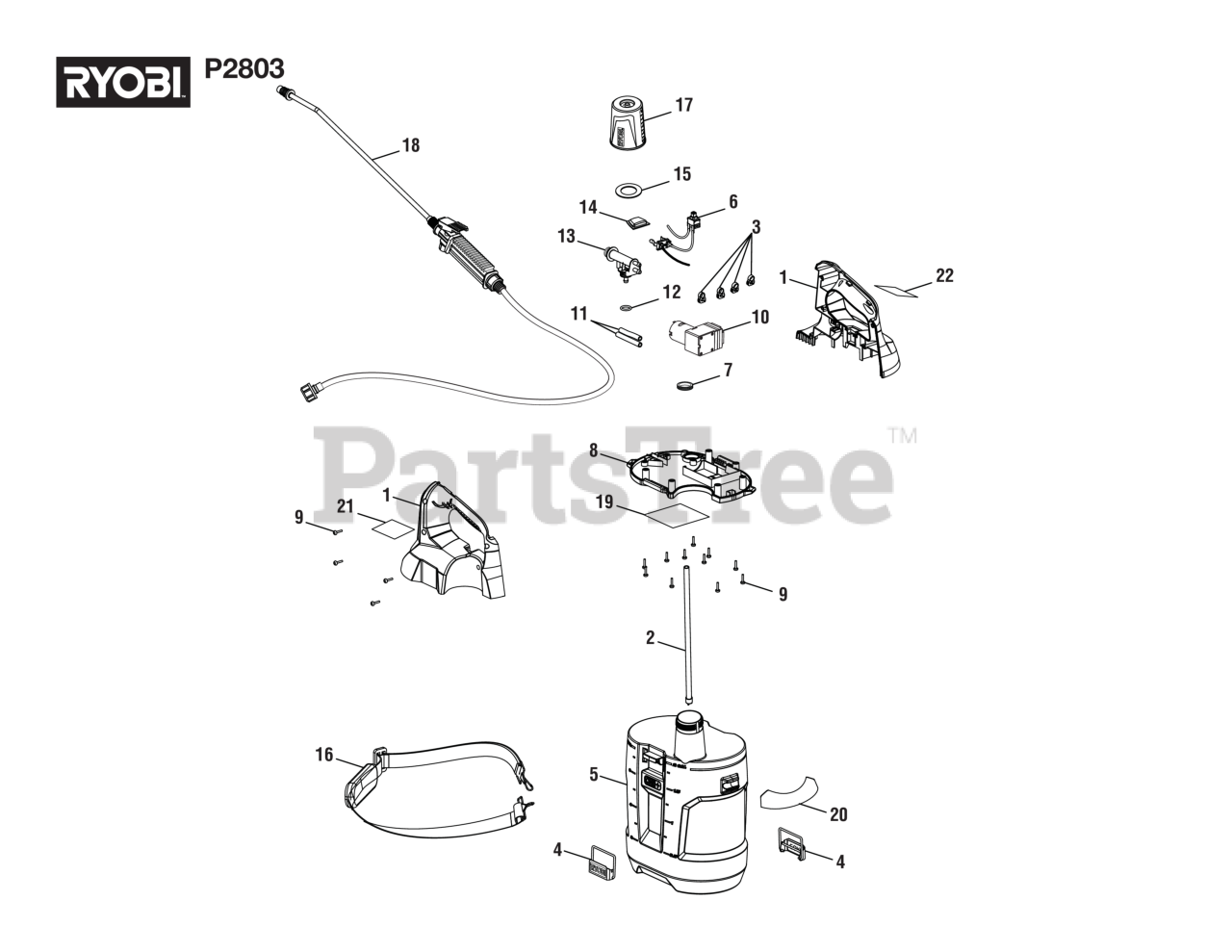

P 2803 (107270002) - Ryobi 18V Sprayer, Rev 05 (2021-08) General Assembly Parts Diagram

18V Sprayer, Rev 05

General Assembly Parts Diagram

  • Title

1

Homelite 311819001

Handle Housing Assembly

Note: (Inc. Key Nos. 21-22)

$9.99

$

Usually ships in 3-7 days

0

2

Homelite 313384001

Tube (Long)

$3.49

$

In Stock, Qty 5

0

3

Homelite 531414001

Hose Clip

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 636345002

Latch

$6.99

$

Usually ships in 3-7 days

0

5

Homelite 311818002

Water Tank Assembly

Note: (Inc. Key No. 20)

$19.99

$

Usually ships in 3-7 days

0

6

Homelite 311822001

Wiring Harness and Switch Assembly

$15.99

$

In Stock, only 1 left!

0

7

Homelite 563916001

Rubber Seal

$1.99

$

In Stock, only 2 left!

0

8

Homelite 311821001

Housing Deck Assembly

Note: (Inc. Key No. 19)

$

$

Not available

9

Homelite 660208106

Screw (M4x14 mm)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 307942003

Pump Diaphragm Assembly

$45.99

$

In Stock, only 1 left!

0

11

Homelite 563631001

Tube (Short)

$1.99

$

In Stock, only 1 left!

0

12

Homelite 564773001

O-Ring

$1.99

$

Usually ships in 0 days

0

13

Homelite 528539001

Connector

$1.99

$

In Stock, only 2 left!

0

14

Homelite 563630001

Switch Cover

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 563910001

Rubber Seal

$1.99

$

In Stock, only 3 left!

0

16

Homelite 903411001

Shoulder Strap

$18.99

$

Usually ships in 3-7 days

0

17

Homelite 313596001

Tank Cap Assembly

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 307479001

Trigger Handle Assembly

$33.99

$

In Stock, only 1 left!

0

19

Homelite 941588211

Data Label

$

$

Not available

20

Homelite 940851324

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 940851052

Notice Label (A)

$

$

Not available

22

Homelite 940851058

Notice Label (B)

$1.99

$

Usually ships in 3-7 days

0

Homelite 120715001

O-Ring Kit

Note: Not Shown

$9.49

$

Usually ships in 3-7 days

0

Homelite 995000275

Operator's Manual

Note: Not Shown

$

$

Not available
