P 28014 VNM (108744001) - Ryobi 18V Compact Sprayer, Rev 02 (2021-10) General Assembly Parts Diagram

18V Compact Sprayer, Rev 02

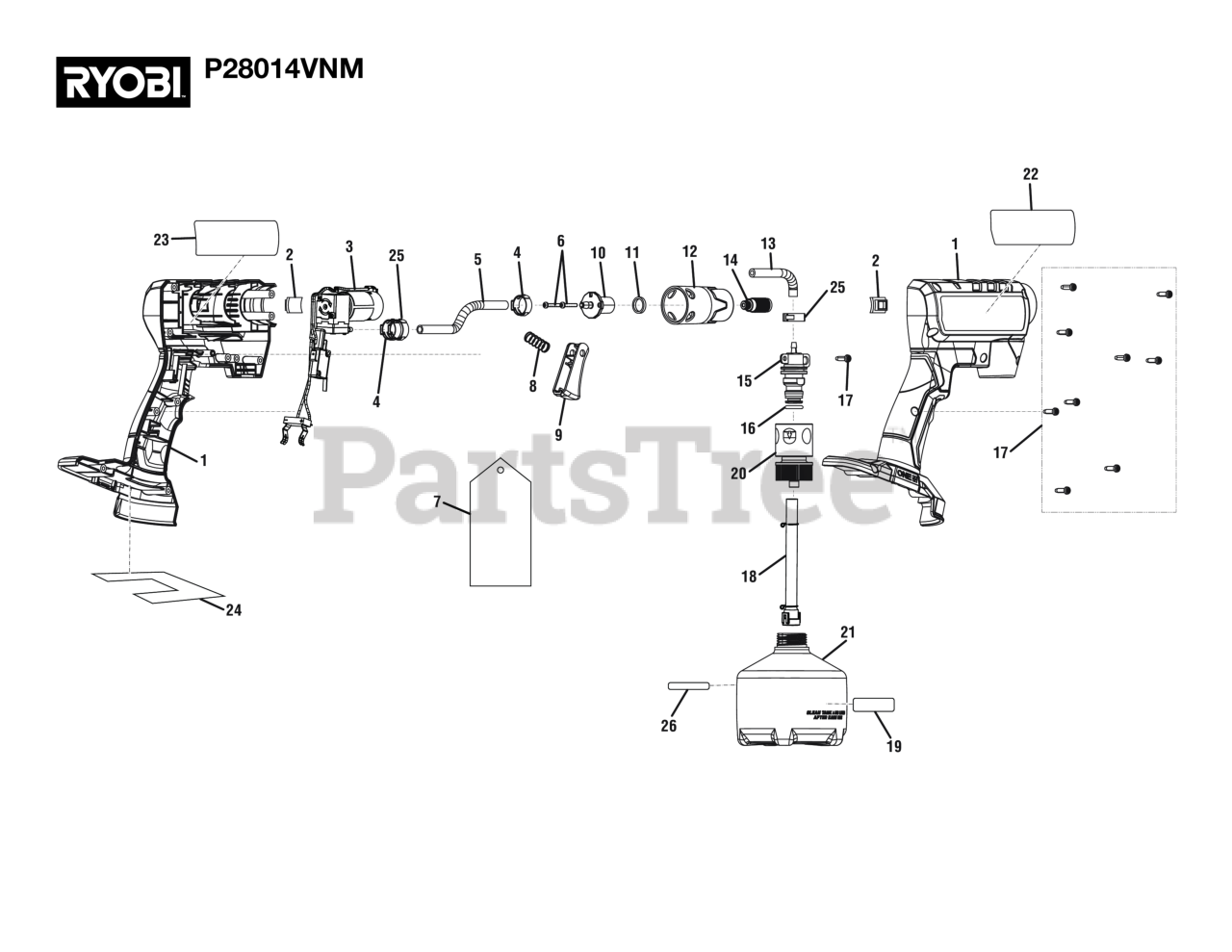

General Assembly Parts Diagram

  • Title

1

Homelite 205679001

Motor Housing Assembly (Inc. Key Nos. 22-24)

Note: (Inc. Key Nos. 22-24)

$45.99

$

Usually ships in 3-7 days

0

2

Homelite 566306001

Rubber Pad

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 318496001

Pump and Switch Assembly

$83.99

$

Usually ships in 3-7 days

0

4

Homelite 656607001

Hose Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 544575001

Hose (Pump Outlet)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 660923003

Screw (M3 x 17.5 mm)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 941110075

Instructions Tag/SP Warnings

$

$

Currently unavailable

8

Homelite 679002002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 544566001

Trigger

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 318209001

One-Way Valve

$11.99

$

Usually ships in 3-7 days

0

11

Homelite 566305001

Back-Up Oring

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 544543001

Outlet Tube Housing

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 544576001

Hose (Pump Inlet)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 699934002

Nozzle

$57.99

$

Usually ships in 3-7 days

0

15

Homelite 544565001

Male QC

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 570742189

O-Ring (ID11.3 x CS2.5)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

18

Homelite 205681001

Filter Assembly

$11.99

$

Usually ships in 3-7 days

0

19

Homelite 941110074

QR Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 318210001

Shutoff Valve

$4.99

$

Usually ships in 3-7 days

0

21

Homelite 205680001

Tank Assembly (Inc. Key Nos. 19 & 26)

Note: (Inc. Key Nos. 19 & 26)

$20.99

$

Usually ships in 3-7 days

0

22

Homelite 941110046

EN/FR Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 940705491

Logo Label

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 941110058

Data Label

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 656231001

Hose Clamp

$

$

Currently unavailable

26

Homelite 941097051

Max Fill Tank Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000670

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
