P 2700 - Ryobi 18V Cultivator, Rev 03 (2016-12) General Assembly Parts Diagram

18V Cultivator, Rev 03

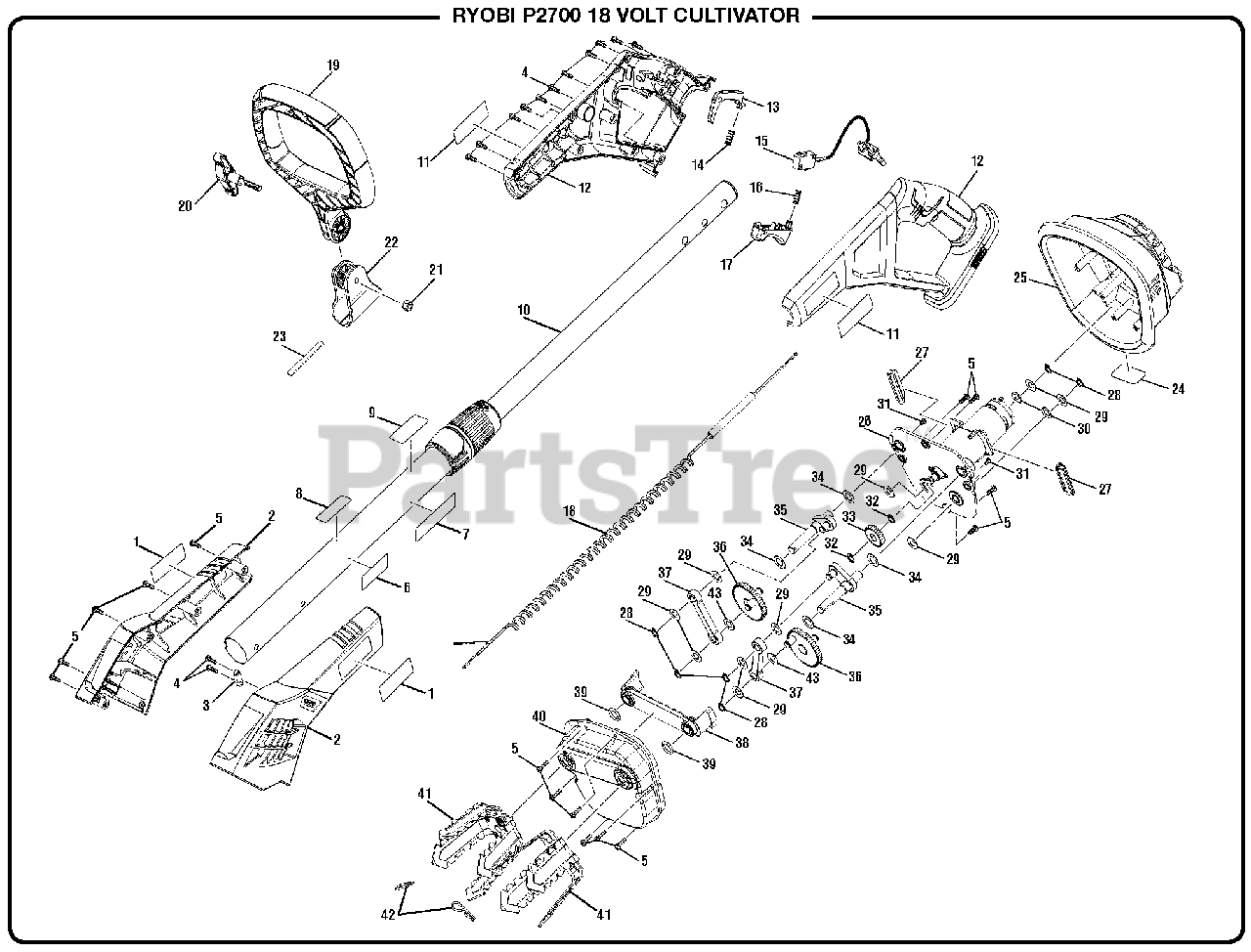

General Assembly Parts Diagram

  • Title

1

Homelite 940705179

Logo Label (Housing)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 202997001

Housing Assembly

Note: (Inc. Key No. 1)

$

$

Not available

3

Homelite 523001001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 660206055

Screw (M3.5 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 941588052

Data Label

$

$

Not available

7

Homelite 641645004

Warning Label (French/Spanish)

$

$

Currently unavailable

8

Homelite 941527003

Lithium-ion Label

$

$

Not available

9

Homelite 940667138

Warning Icon Label

$

$

Not available

10

Homelite 202989001

Pole/Telescoping Shaft Assembly

Note: (Inc. Key Nos. 6-9)

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 941797001

Logo Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 202996001

Rear Handle Assembly

Note: (Inc. Key No. 11)

$12.99

$

Usually ships in 3-7 days

0

13

Homelite 525492001

Lock-Out Button

$

$

Not available

14

Homelite 679083001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 203011001

Switch Assembly

$9.99

$

Usually ships in 3-7 days

0

16

Homelite 679002002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 525491002

Switch Trigger

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 290989003

Wire Assembly

$

$

Not available

19

Homelite 310914006

Front Handle Assembly

Note: (Inc. Key Nos. 20-23)

$

$

Not available

20

Homelite 522983001

Wing Bolt (M6 x 1 in.)
(Superseded to 314754001)

$1.49

$

In Stock, only 1 left!

0

21

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 310921002

Clamp Assembly

Note: (Inc. Key No. 23)

$8.49

$

Usually ships in 3-7 days

0

23

Homelite 570112002

Rubber Plate

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 941843002

No Hands Label

$

$

Not available

25

Homelite 202990001

Lower Housing

Note: (Inc. Key No. 24)

$4.99

$

Usually ships in 3-7 days

0

26

Homelite 202991001

Motor and Clutch Assembly

$55.99

$

Usually ships in 3-7 days

0

Homelite 230631001

Motor and Pinion Assembly
(Superseded to 202991001)

$55.99

$

Usually ships in 3-7 days

0

27

Homelite 563412001

Rubber Plate

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 693108002

C-Ring (Retaining Ring)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 639231001

Washer

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 638587001

Wavy Washer

$

$

Not available

31

Homelite 660211001

Screw (M3 x 8 mm, Pan Hd.)

$

$

Not available

32

Homelite 679995001

Retaining Ring

$1.99

$

In Stock, only 1 left!

0

33

Homelite 642232001

Clutch Gear

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 639220001

Washer

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 202995001

Pivot Arm Assembly

$10.99

$

Usually ships in 3-7 days

0

36

Homelite 202994001

Drive Gear Assembly

$8.99

$

Usually ships in 3-7 days

0

37

Homelite 642230001

Connecting Rod

$3.49

$

Usually ships in 3-7 days

0

38

Homelite 306909001

Bracket Assembly

$9.99

$

Usually ships in 3-7 days

0

39

Homelite 570841001

O-Ring

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 527660001

Gear Box Cover

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 306694001

Tine Assembly

$14.99

$

Usually ships in 3-7 days

0

42

Homelite 639223001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 639219001

Washer

$

$

Not available

Homelite 130429046

Battery Pack
(Superseded to 130429102)

Note: Not Shown

$74.99

$

Usually ships in 3-7 days

0

Homelite 140185009

Charger

$76.99

$

Usually ships in 3-7 days

0

Homelite 990000830

Operator's Manual

$

$

Not available
