P 2609 VNM (108711001) - Ryobi 18V Hedge Trimmer, Rev 01 (2022-02) General Assembly Parts Diagram

18V Hedge Trimmer, Rev 01

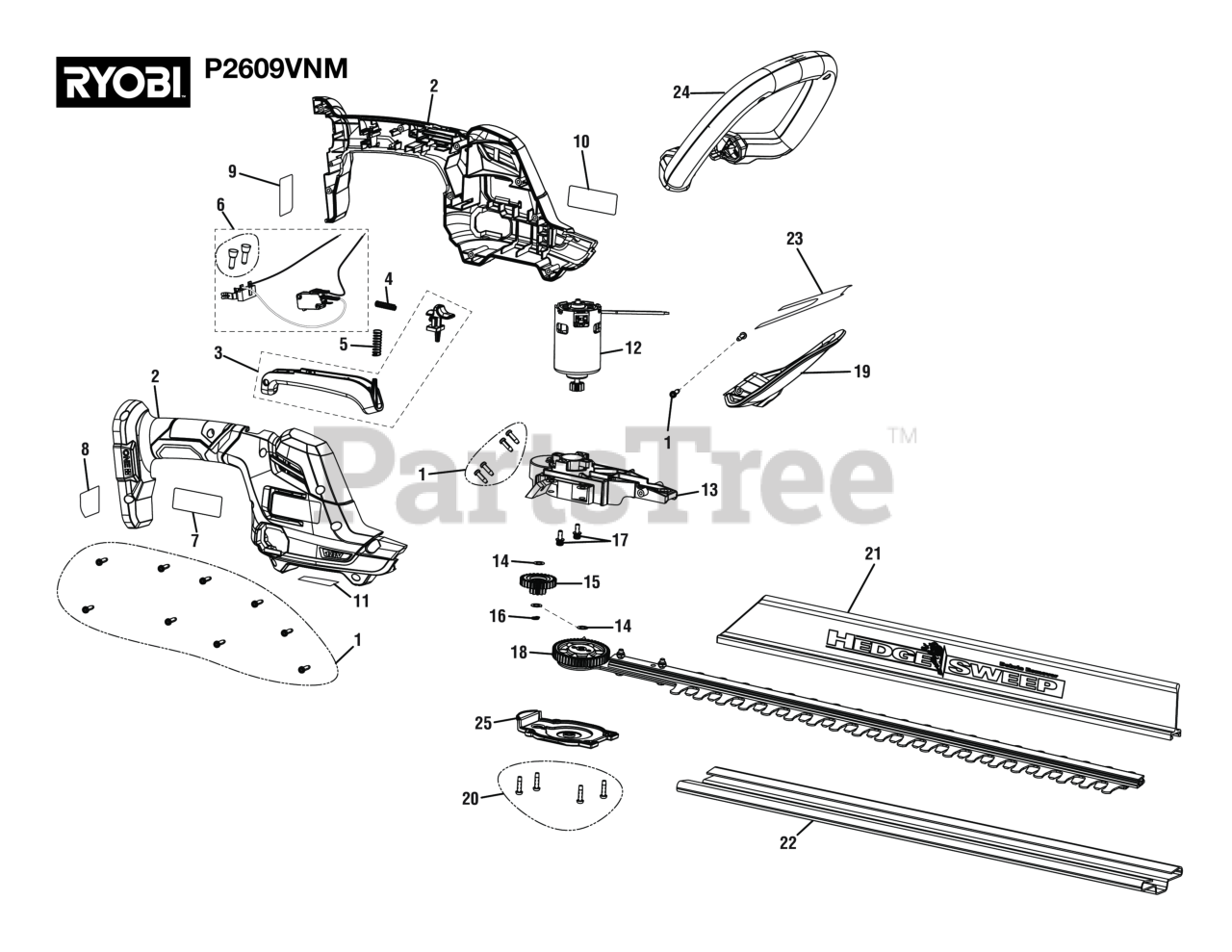

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 205834001

Housing Assembly

Note: (Inc. Key Nos. 7-11)

$26.99

$

Usually ships in 3-7 days

0

3

Homelite 318470001

Trigger and Lockout Button Assembly

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 679055010

Spring, Lockout Button, Dia. 4.6, Soring

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 679055008

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 205696001

Wiring Harness

$17.99

$

Usually ships in 3-7 days

0

7

Homelite 941097130

Data Label

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 941263084

Battery Statement Label

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 941263134

QR Label

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 940705492

Logo Label

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 941263083

Warning Label (SP)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 292376001

Motor and Pinion Assembly

$90.99

$

Usually ships in 3-7 days

0

13

Homelite 545209001

Gear Box Base

$14.99

$

Usually ships in 3-7 days

0

14

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

15

Homelite 610114001

Center Gear

$5.49

$

In Stock, only 1 left!

0

16

Homelite 670704001

RETAINING RING (EXTERNAL)

$1.99

$

In Stock, only 2 left!

0

17

Homelite 661875002

Screw w/Washer (#10-24 x 15 mm, Pan Hd)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 311826001

Blade Assembly

$83.99

$

Usually ships in 3-7 days

0

19

Homelite 205835001

Guard Assembly

Note: (Inc Key No. 23)

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 660208052

Screw (M4 x 16 mm, Pan Hd.)
(Superseded to 089041033087)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 526799004

Hedge Sweep

$9.49

$

Usually ships in 3-7 days

0

22

Homelite 525406005

Blade Shield

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 941588705

Icon Warning Label (ENG/FR)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 318469001

Front Handle Assembly

$18.99

$

Usually ships in 3-7 days

0

25

Homelite 545210001

Gear Box Cover

$5.99

$

Usually ships in 3-7 days

0

Homelite 998000690

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
