P 2608 VNM (108648001) - Ryobi 18V Brushless Hedge Trimmer, Rev 01 (2020-09) General Assembly Parts Diagram

18V Brushless Hedge Trimmer, Rev 01

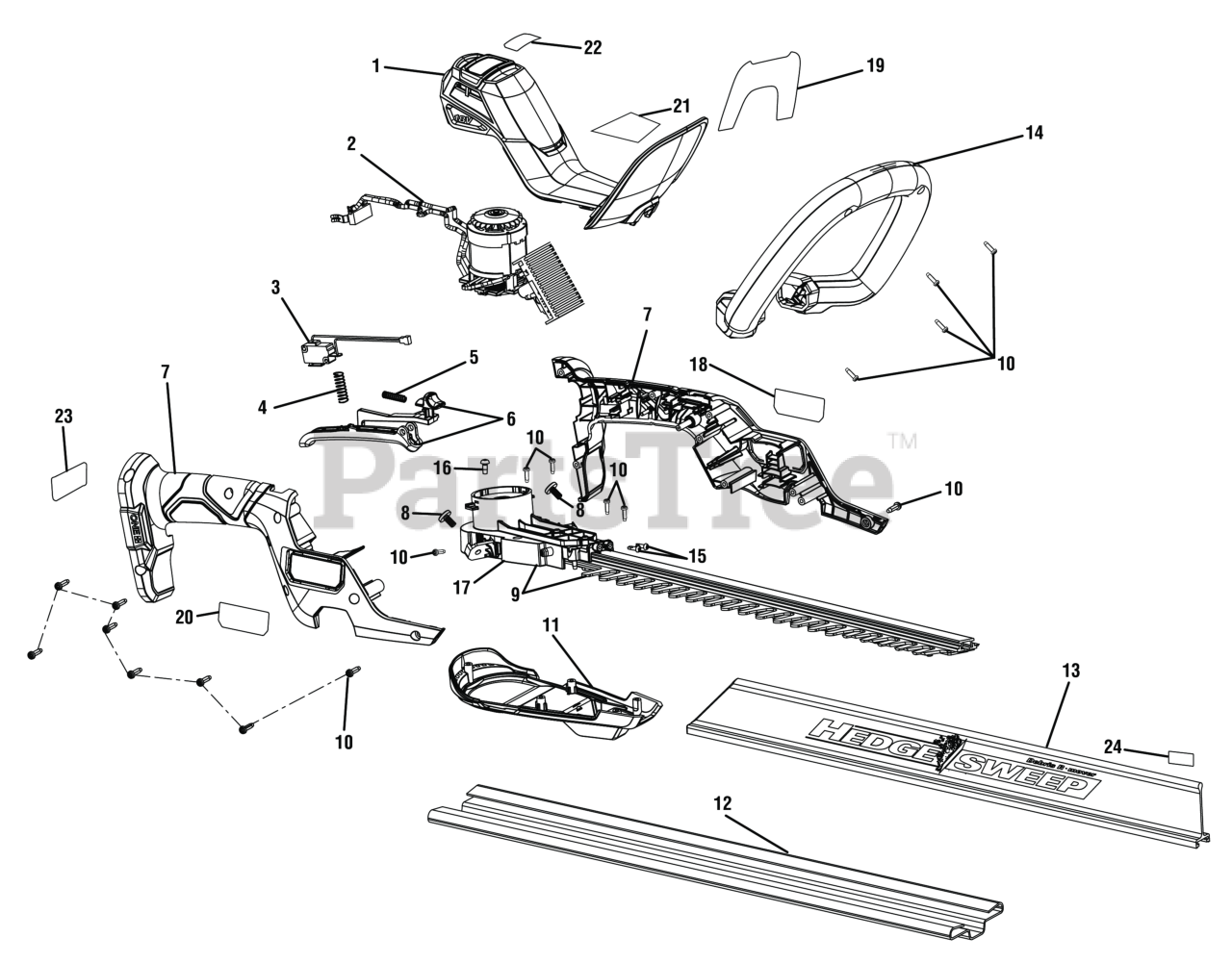

General Assembly Parts Diagram

  • Title
1

Homelite 205416001

Top Cover Assembly

Note: (Inc. Key Nos. 21-22)

$12.99

$

Usually ships in 3-7 days

0

2

Homelite 205418001

Motor, Controller, and Battery Holder Assembly

$235.99

$

Usually ships in 3-7 days

0

3

Homelite 292266001

Switch Assembly

$10.99

$

Usually ships in 0 days

0

4

Homelite 679055008

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 679055010

Spring, Lockout Button, Dia. 4.6, Soring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 205415001

Trigger Assembly

$5.99

$

Usually ships in 0 days

0

7

Homelite 205414001

Housing Assembly

Note: (Inc. Key Nos. 18, 20 & 23)

$37.99

$

Usually ships in 3-7 days

0

8

Homelite 660299021

Screw (M5 x 13 mm, Pan Hd.)

$

$

Currently unavailable

9

Homelite 205417001

Gearbox and Blade Assembly

Note: (Inc. 5 Key No. 10 and Key No. 17)

$174.99

$

Usually ships in 3-7 days

0

10

Homelite 661817002

Screw (M4 x 13.5 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 541587001

Gearbox Cover

$8.99

$

Usually ships in 3-7 days

0

12

Homelite 525406005

Blade Shield

$6.49

$

Usually ships in 3-7 days

0

13

Homelite 205419001

Hedge Sweep Assembly

Note: (Inc. Key No. 24)

$12.99

$

Usually ships in 3-7 days

0

14

Homelite 316916001

Front Handle Assembly

Note: (Inc. 4 Key No. 10)

$20.99

$

Usually ships in 3-7 days

0

15

Homelite 660005006

Screw (M3 x 10 mm)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 661189001

Screw (M4 x 9 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 541588001

Gearbox Housing

$8.99

$

Usually ships in 3-7 days

0

18

Homelite 941588704

Logo Label

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 941588705

Icon Warning Label (ENG/FR)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941588707

Data Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 941588808

Warning Label (SP)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 941588706

Brushless Label

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 941588807

Battery Foot Label

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 941769001

Warning Label

$

$

Not available

Homelite 998000352

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
