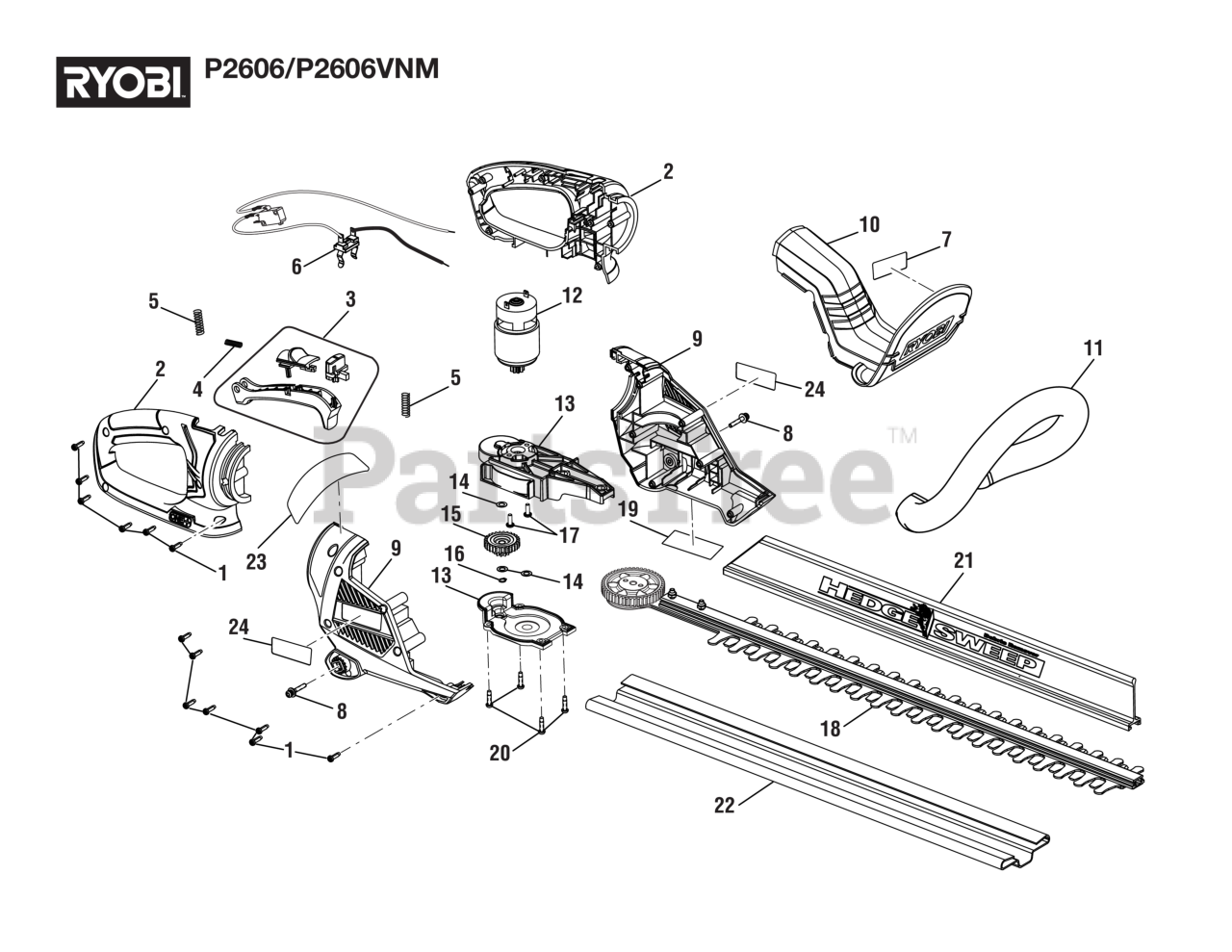

P 2606 (107266001) - Ryobi 18V Hedge Trimmer, Rev 04 (2022-03) General Assembly Parts Diagram

18V Hedge Trimmer, Rev 04

General Assembly Parts Diagram

  • Title
1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

2

Homelite 311825001

Handle Assembly

$21.99

$

Usually ships in 3-7 days

0

3

Homelite 311829001

Trigger Assembly

$11.99

$

Usually ships in 3-7 days

0

4

Homelite 679055012

Lock-Off Button Spring

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 679055008

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 311827001

Wiring Harness

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 941769001

Warning Label

$

$

Not available

8

Homelite 660137010

Screw w/Washers (M4 x 26 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

9

Homelite 311824001

Housing Assembly

Note: (Inc. Key Nos. 19, 23-24) (P2606)

$14.99

$

Usually ships in 3-7 days

0

10

Homelite 317345001

Top Cover Assembly

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 529546001

Front Handle

$16.99

$

Usually ships in 3-7 days

0

12

Homelite 311828001

Motor and Pinion Assembly

$44.99

$

Usually ships in 3-7 days

0

13

Homelite 307878001

Gear Box w/Cover Assembly

$18.99

$

Usually ships in 3-7 days

0

14

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

15

Homelite 610114001

Center Gear

$5.49

$

In Stock, only 1 left!

0

16

Homelite 670704001

RETAINING RING (EXTERNAL)

$1.99

$

In Stock, only 2 left!

0

17

Homelite 660137001

Screw w/Tooth Washer (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

18

Homelite 311826001

Blade Assembly

$83.99

$

In Stock, only 1 left!

0

19

Homelite 941588102

Data Label

Note: (P2606)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 660208052

Screw (M4 x 16 mm, Pan Hd.)
(Superseded to 089041033087)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 526799004

Hedge Sweep

$9.49

$

Usually ships in 3-7 days

0

22

Homelite 525406005

Blade Shield

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 940851647

Rotating Handle Label

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 940705490

Logo Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000689

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
