P 26010 VNM (108683001) - Ryobi 18V Pole Hedge Trimmer, Rev 03 (2022-01) General Assembly Parts Diagram

18V Pole Hedge Trimmer, Rev 03

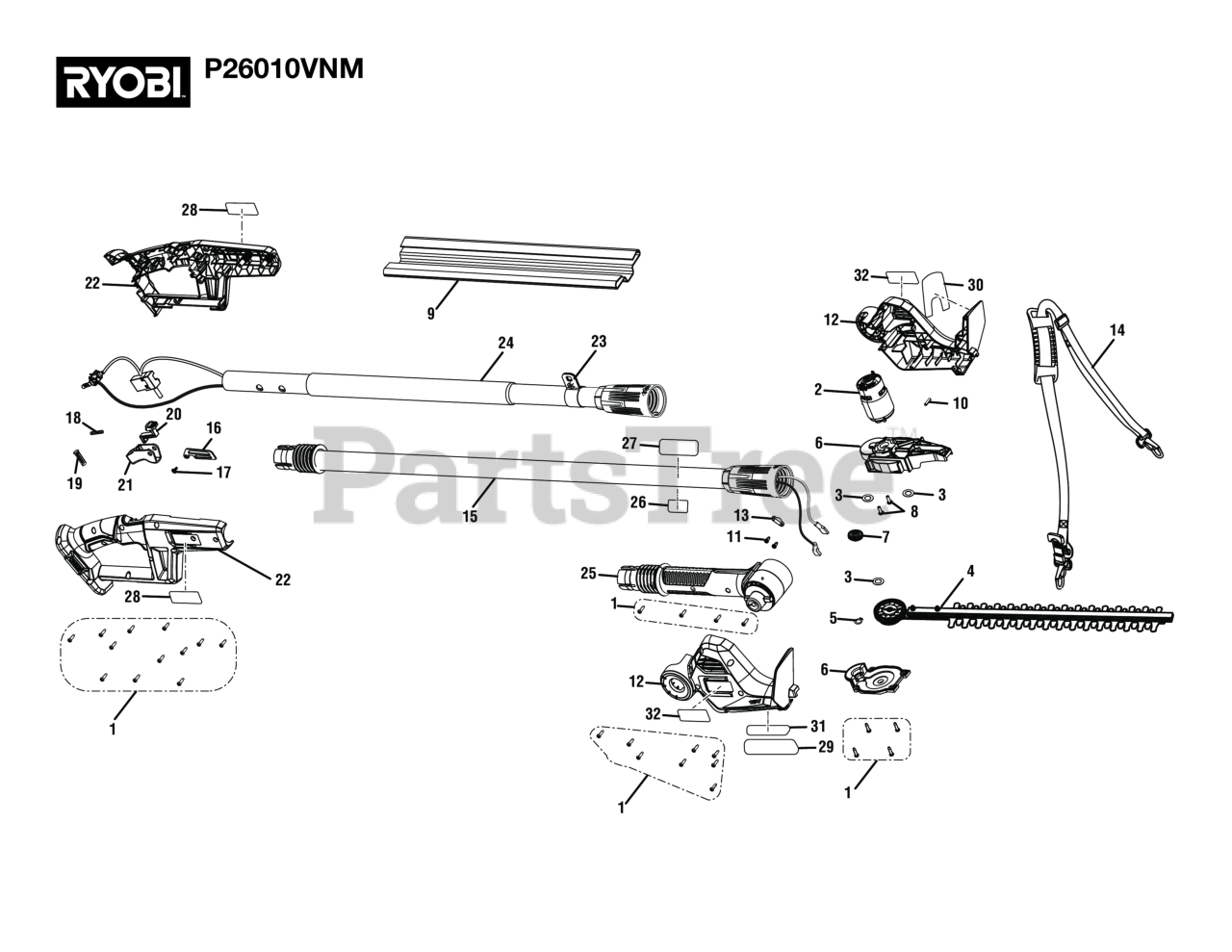

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

2

Homelite 316912001

Motor and Pinion Assembly

$59.99

$

Usually ships in 3-7 days

0

3

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

4

Homelite 205636001

Blade Assembly

$101.99

$

Usually ships in 3-7 days

0

5

Homelite 670704001

RETAINING RING (EXTERNAL)

$1.99

$

In Stock, only 2 left!

0

6

Homelite 205635001

Gear Box W/Cover Asembly

$20.99

$

Usually ships in 3-7 days

0

7

Homelite 610114001

Center Gear

$5.49

$

In Stock, only 1 left!

0

8

Homelite 660137001

Screw w/Tooth Washer (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

9

Homelite 525406007

Scabbard

$

$

Currently unavailable

10

Homelite 671099001

Spring Pin (Small)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 662364001

Screw (M4 x 8 mm, T15 Torx Pan Hd.)

$

$

Currently unavailable

12

Homelite 205637001

Motor Housing Assembly (Inc. Key Nos. 29-32)

Note: (Inc. Key Nos. 29-32)

$26.99

$

Usually ships in 3-7 days

0

13

Homelite 523001003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 308319004

Harness Assembly

$23.99

$

Usually ships in 3-7 days

0

15

Homelite 310980006

Middle Pole Assembly (Inc. Key Nos. 26-27)

Note: (Inc. Key Nos. 26-27)

$59.99

$

Usually ships in 3-7 days

0

16

Homelite 634052001

Strap Hanger

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 660960002

Screw (M3 x 8 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 694143001

Compression Spring (Trigger Lock)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 679055008

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 541725001

Lock Off

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 541929002

Rear Trigger

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 205638001

Rear Handle Assembly (Inc. Key No. 28)

Note: (Inc. Key No. 28)

$28.99

$

Usually ships in 3-7 days

0

23

Homelite 316769001

Clamp Assembly

$3.99

$

Usually ships in 3-7 days

0

24

Homelite 205639001

Lower Pole Assembly

$88.99

$

Usually ships in 3-7 days

0

25

Homelite 318081001

Pole Hedge Trimmer Handle

$41.99

$

Usually ships in 3-7 days

0

26

Homelite 941263117

QR Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 941851103

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 941588712

Handle Logo Label

$1.99

$

Usually ships in 0 days

0

29

Homelite 941263201

Data Label

$

$

Currently unavailable

30

Homelite 941263042

Icon Warning Danger Label (EN/FR)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 941263043

Warning Label (SP)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 940705490

Logo Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000651

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
