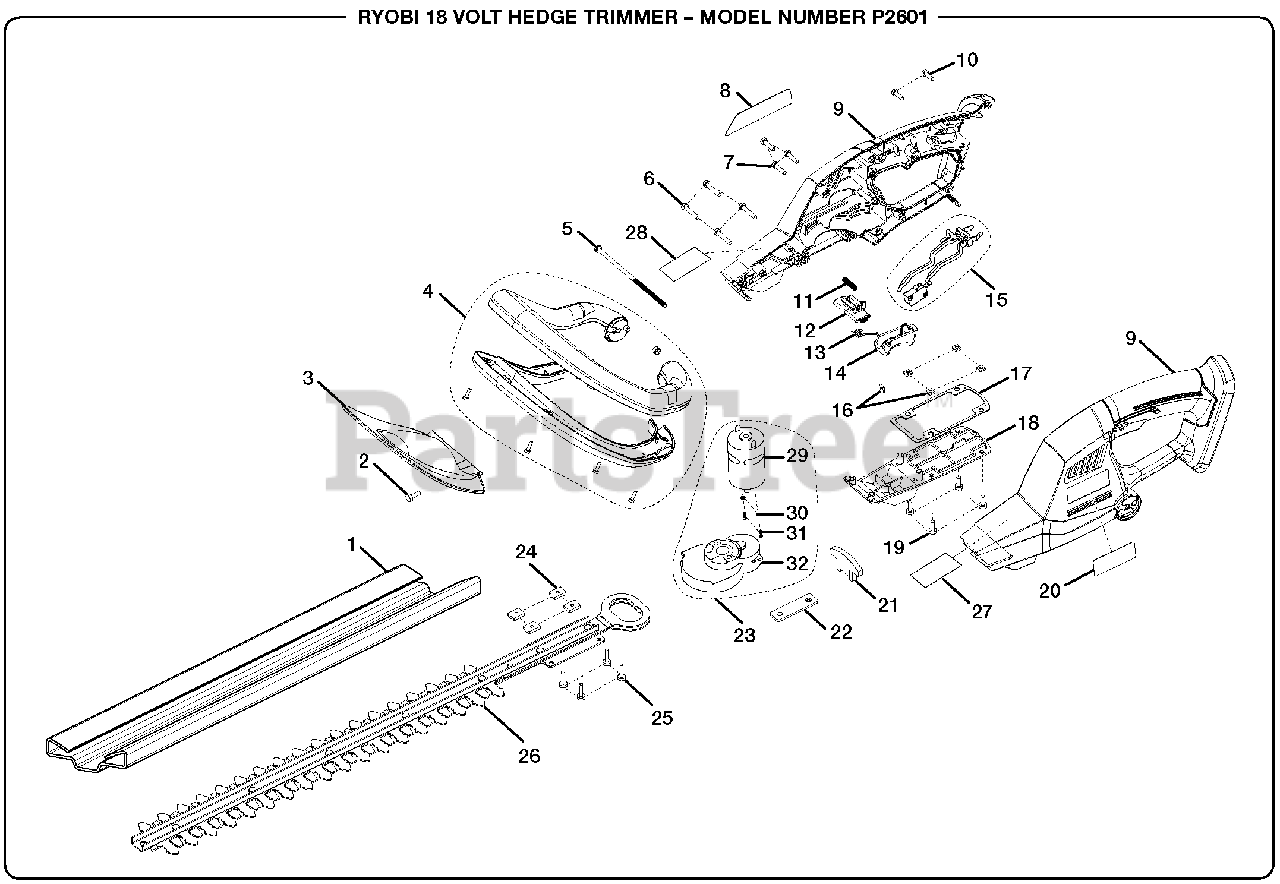

P 2601 - Ryobi 18V Hedge Trimmer General Assembly Parts Diagram

18V Hedge Trimmer

General Assembly Parts Diagram

  • Title

1

Homelite 518463005

Blade Cover

$1.98

$

Usually ships in 3-7 days

0

2

Homelite 660033002

Screw (M4 x 12 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 516833001

Guard Block

$3.49

$

Usually ships in 3-7 days

0

4

Homelite 302373002

Front Handle Assembly

$

$

Not available

5

Homelite 660208095

Screw (M4 x 114 mm)

Note: Purchase locally

$

$

Not available

6

Homelite 660208049

Screw (M4 x 22 mm Pan Hd.)

Note: Purchase locally

$

$

Currently unavailable

7

Homelite 660208052

Screw (M4 x 16 mm Pan Hd.)
(Superseded to 089041033087)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 940304437

Data Label

$

$

Not available

9

Homelite 200208012

Housing Assembly

$

$

Not available

10

Homelite 660208055

Screw (M4 x 12 mm Pan Hd.)

Note: Purchase locally

$1.99

$

In Stock, only 4 left!

0

11

Homelite 670499001

Compression Spring

$

$

Currently unavailable

12

Homelite 516837001

Trigger Lock

$

$

Not available

13

Homelite 672752001

Trigger Spring

$

$

Not available

14

Homelite 516838001

Trigger

$

$

Not available

15

Homelite 270015144

Switch and Circuit Assembly

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 660126001

Square Nut (M4 x 2.2 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 561971001

Rubber Seal

$

$

Not available

18

Homelite 516834001

Bottom Cover

$

$

Not available

19

Homelite 660137001

Screw (M4 x 12 mm)

$1.99

$

In Stock, only 1 left!

0

20

Homelite 940015138

Logo Label

$

$

Not available

21

Homelite 561998001

Sponge Seal

$

$

Not available

22

Homelite 690405001

Bar Plate

$

$

Not available

23

Homelite 210010041

Motor & Gear Train Assembly (Inc. Key Nos. 9-32)

$

$

Not available

24

Homelite 660561001

Square Nut (M4 x 15 x 10.9)

Note: Purchase locally

$1.06

$

Usually ships in 3-7 days

0

25

Homelite 660137003

Screw (M4 x 16 mm)

Note: Purchase locally

$

$

Not available

26

Homelite 302374001

Blade Assembly

$

$

Not available

27

Homelite 940304544

Warning Label

$

$

Not available

28

Homelite 940006202

Warning Label

$

$

Not available

29

Homelite 230033035

Motor Assembly

$18.99

$

Usually ships in 3-7 days

0

30

Homelite 670704001

Retaining Ring (External)

$1.99

$

In Stock, only 2 left!

0

31

Homelite 660137001

Screw (M4 X 1 mm)

$1.99

$

In Stock, only 1 left!

0

32

Homelite 301705001

Gear Train Assembly

$20.62

$

Usually ships in 3-7 days

0

Homelite 98700014

Operator's Manual (960009363)

$

$

Currently unavailable
