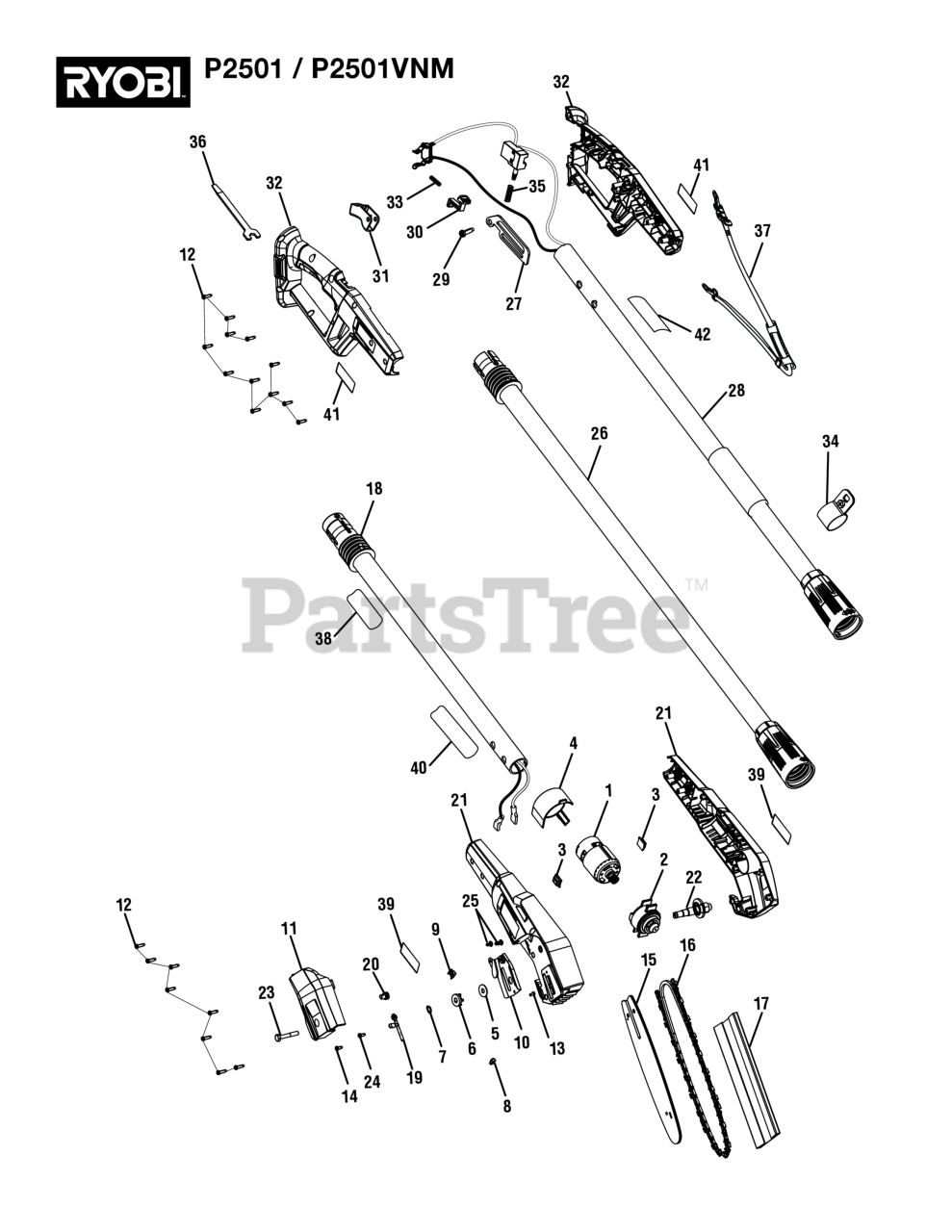

P 2501 VNM (107581101) - Ryobi 18V Pole Saw, Rev 03 (2022-11) General Assembly Parts Diagram

18V Pole Saw, Rev 03

General Assembly Parts Diagram

  • Title

1

Homelite 316686001

Motor and Pinion Assembly

$47.99

$

Usually ships in 3-7 days

0

2

Homelite 205514001

Output Gear Assembly

$19.99

$

Usually ships in 3-7 days

0

3

Homelite 570115001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 541930001

Volute Cover

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, only 2 left!

0

6

Homelite 610323001

Sprocket

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 670608002

Retaining Ring

$1.99

$

In Stock, Qty 7

0

8

Homelite 541509001

Small Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 541544001

Big Pressure Plate

$1.99

$

In Stock, only 4 left!

0

10

Homelite 674154001

Guide Plate

$2.99

$

In Stock, Qty 6

0

11

Homelite 541934001

Chain/Bar Cover

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 662408001

Screw (M3 x 8 mm, T15 Torx Pan Hd.)

$

$

Currently unavailable

14

Homelite 660005006

Screw (M3 x 10 mm)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 316670001

Guide Bar

$33.99

$

Usually ships in 3-7 days

0

16

Homelite 682502001

8 in. Saw Chain

$

$

Currently unavailable

17

Homelite 518405002

Scabbard

$

$

Currently unavailable

18

Homelite 205510001

Upper Pole Assembly (Inc Key Nos. 38 & 40)

Note: CN

$18.99

$

In Stock, only 1 left!

0

18

Homelite 205510003

Upper Pole Assembly (Inc Key Nos. 38 & 40)

Note: VN

$40.99

$

Usually ships in 0 days

0

19

Homelite 315118004

Adjust Screw Assembly

$5.49

$

In Stock, only 2 left!

0

20

Homelite 610624004

Bar Adjust Gear

$2.99

$

In Stock, only 2 left!

0

21

Homelite 205511001

Motor Housing Assembly (Inc. Key No. 39)

Note: (Inc. Key No. 39)

$18.99

$

Usually ships in 3-7 days

0

22

Homelite 316943001

Output Shaft Assembly

$

$

Currently unavailable

23

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$1.99

$

Usually ships in 0 days

0

24

Homelite 662364001

Screw (M4 x 8 mm, T15 Torx Pan Hd.)

$

$

Currently unavailable

25

Homelite 660922002

Screw (M4x 7 mm, T20 Torx Hd)

$1.99

$

In Stock, only 1 left!

0

26

Homelite 310980002

Middle Pole Assembly

$52.99

$

Usually ships in 3-7 days

0

27

Homelite 634052001

Strap Hanger

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 205512001

Lower Pole Assembly (Inc. Key Nos. 34 & 42)

Note: (Inc. Key Nos. 34 & 42)

$29.99

$

In Stock, only 1 left!

0

29

Homelite 660960002

Screw (M3 x 8 mm)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 541725002

Lock-Off

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 541929001

Trigger

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 205513001

Rear Handle Assembly (Inc. Key No. 41)

Note: (Inc. Key No. 41)

$16.99

$

Usually ships in 3-7 days

0

33

Homelite 694143001

Compression Spring (Trigger Lock)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 316769001

Clamp Assembly

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 679055008

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 639255002

Wrench

$

$

Currently unavailable

37

Homelite 308319004

Harness Assembly

$23.99

$

Usually ships in 3-7 days

0

38

Homelite 941588711

Data Label

Note: CN

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 941097308

Data Label

Note: VN

$1.99

$

Usually ships in 0 days

0

39

Homelite 940705493

Motor Housing Logo Label

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 941851098

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 941588712

Handle Logo Label

$1.99

$

Usually ships in 0 days

0

42

Homelite 941588713

Danger Icon Warning Label

$1.99

$

Usually ships in 0 days

0

Homelite 998000281

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
