P 2500 - Poulan String Trimmer Shaft and Handle Parts Diagram

String Trimmer

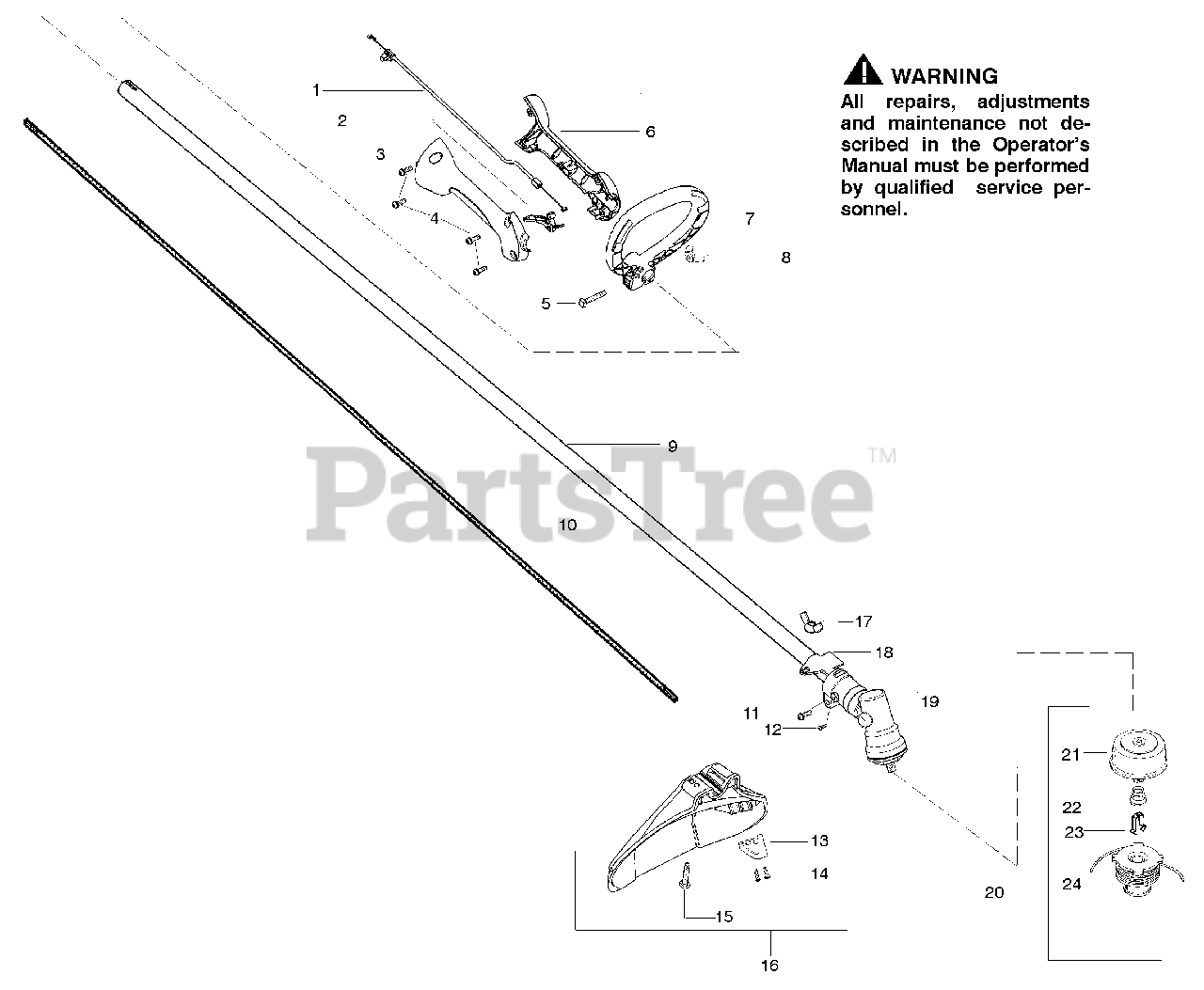

Shaft and Handle Parts Diagram

  • Title

1

Poulan 530057991

Assy-Throttle Cable

$11.99

$

In Stock, only 2 left!

0

2

Poulan 530049107

Trigger

$

$

Not available

3

Poulan 530057582

Throttle Hsg. (Right)

$10.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

Screw-Throttle Hsg.

$4.99

$

In Stock, Qty 8

0

5

Poulan 530015821

Bolt-Handle/Shield

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 530057581

Throttle Hsg. (Left)

$11.99

$

Usually ships in 3-10 days

0

7

Poulan 530058580

Assy-Handle Assist
(Superseded to 530071747)

Note: (Incl. 5,8)

$

$

Not available

8

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

9

Poulan 530071662

Assy-Drive Shaft Hsg.
(Superseded to 530071661)

$40.99

$

Usually ships in 3-10 days

0

10

Poulan 530096075

Shaft- Flex

$9.49

$

Usually ships in 3-10 days

0

11

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

12

Poulan 530016224

Screw- Alignment

$4.99

$

In Stock, Qty 5

0

13

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

16

Poulan 530071771

Kit-Shield Assy

Note: (Incl. 13,14,15,17)

$26.99

$

In Stock, only 2 left!

0

17

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

18

Poulan 530096067

Bracket-Shield

$

$

Not available

19

Poulan 530096068

Assy-Gearbox

$53.99

$

In Stock, only 1 left!

0

20

Poulan 952701724

Accy-TNG VI Cutting Head
(Superseded to 952711550)

Note: (Incl. 21,22,23,24)

$

$

Not available

21

Poulan 530095772

Assy-Hub

$

$

Not available

22

Poulan 530053241

Spring-Compression

$

$

Not available

23

Poulan 530401957

Clip-Retainer-Head

$4.99

$

In Stock, only 4 left!

0

24

Poulan 952701721

Accy- Spool w/Line

$9.99

$

Usually ships in 3-10 days

0

24

Poulan 545154717

Operator Manual

Note: Not Shown

$

$

Not available

24

Poulan 545144402

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
