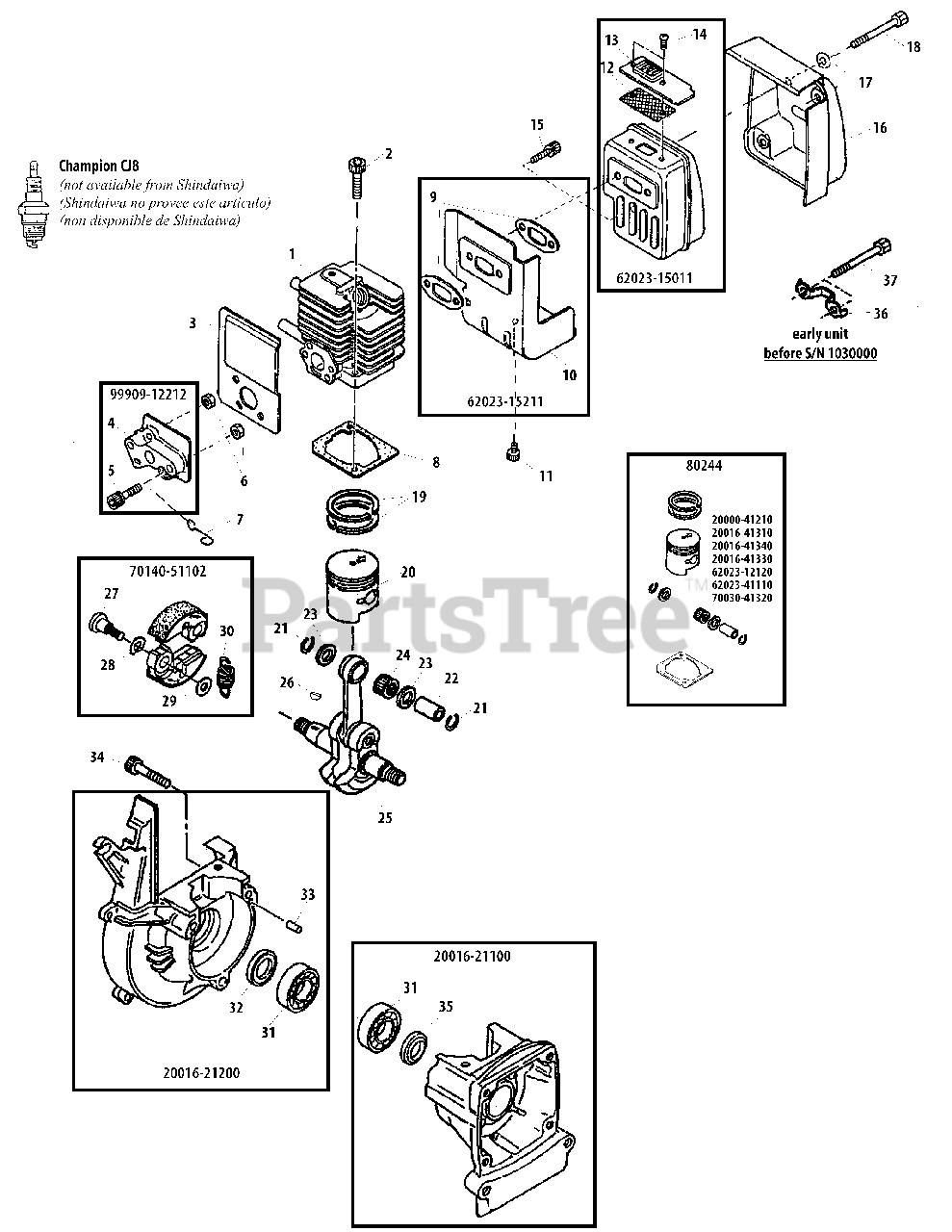

P 231 - Shindaiwa Pole Saw / Pruner Crankcase, Cylinder, Muffler Parts Diagram

Pole Saw / Pruner

Crankcase, Cylinder, Muffler Parts Diagram

  • Title

1

Echo 62023-12110

CYLINDER
(Superseded to 62023-12111)

$54.99

$

In Stock, Qty 8

0

2

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

3

Echo 62023-12220

SHIELD, INTAKE
(Superseded to V103000750)

$3.99

$

Usually ships in 2-4 days

0

99909-12212

Echo 99909-12212

INSULATOR ASSY

Note: PR192

$11.99

$

In Stock, only 1 left!

0

4

Echo 20016-12212

INSULATOR
(Superseded to 99909-12212)

$11.99

$

In Stock, only 1 left!

0

5

Echo 11022-05305

SCREW - 5X30
(Superseded to V203000480)

$3.99

$

In Stock, Qty 5

0

6

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 13

0

7

Echo 20016-12310

HOLDER, VENT
(Superseded to A358000040)

$0.99

$

In Stock, Qty 6

0

8

Echo 62023-12120

GASKET, CYLINDER
(Superseded to V100000360)

$1.99

$

In Stock, Qty 7

0

9

Echo 62023-15430

SHIELD, EXHAUST
(Superseded to V104001470)

$1.99

$

In Stock, only 4 left!

0

10

Echo 62023-15421

GASKET
(Superseded to V104001140)

$8.49

$

Usually ships in 2-4 days

0

11

Echo 01020-05080

SCREW - 5X8
(Superseded to 90010505008)

$0.99

$

In Stock, Qty 20+

0

62023-15011

Echo 62023-15011

MUFFLER ASSY
(Superseded to A030000141)

$162.99

$

Usually ships in 2-4 days

0

12

Echo 62023-15130

SCREEN, SPARK ARRESTOR
(Superseded to A310000250)

$2.49

$

Usually ships in 2-4 days

0

13

Echo 62023-15160

TAIL PLATE
(Superseded to A313001371)

$3.49

$

In Stock, only 2 left!

0

14

Echo 11203-04060

SCREW - 4X6
(Superseded to 9157804006)

$0.99

$

In Stock, Qty 16

0

15

Echo 01020-05200

SCREW - 5X20
(Superseded to 90010505020)

$1.49

$

In Stock, Qty 20+

0

16

Echo 62023-15380

COVER, EXHAUST
(Superseded to 62023-15381)

$

$

Not available

17

Echo 01610-05085

WASHER - 5
(Superseded to 90060400005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 9110905060

SCREW - 5X60

$1.49

$

In Stock, only 3 left!

0

80244

Echo 80244

PISTON ASSY
(Superseded to 60023-98040)

Note: (KIT)

$70.99

$

Usually ships in 2-4 days

0

19

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.49

$

In Stock, only 4 left!

0

20

Echo 62023-41110

PISTON
(Superseded to A100000720)

$40.99

$

Usually ships in 2-4 days

0

21

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

22

Echo 20016-41310

PIN, PISTON
(Superseded to V606000060)

$3.49

$

In Stock, only 1 left!

0

23

Echo 20016-41340

WASHER, THRUST
(Superseded to V306000260)

$1.49

$

Usually ships in 2-4 days

0

24

Echo 20016-41330

BEARING, NEEDLE
(Superseded to 81593)

$7.99

$

In Stock, only 1 left!

0

8

Echo 62023-12120

GASKET, CYLINDER
(Superseded to V100000360)

$1.99

$

In Stock, Qty 7

0

25

Echo 20016-42002

CRANKSHAFT ASSY
(Superseded to A011000930)

$67.99

$

Usually ships in 2-4 days

0

26

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

70140-51102

Echo 70140-51102

CLUTCH ASSY
(Superseded to A056000260)

$32.99

$

In Stock, Qty 20+

0

27

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

28

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

29

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

30

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.49

$

In Stock, Qty 6

0

20016-21200

Echo 20016-21200

CRANKCASE ASSY - FRONT
(Superseded to P021017920)

$42.99

$

Usually ships in 2-4 days

0

31

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

32

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 13

0

33

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

34

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

20016-21100

Echo 20016-21100

CRANKCASE ASSY - REAR
(Superseded to P021017910)

$37.99

$

Usually ships in 2-4 days

0

31

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

35

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 3 left!

0

36

Echo 62023-15390

PLATE, LOCK

$1.49

$

Usually ships in 2-4 days

0

37

Echo 62023-15410

BOLT

$0.99

$

Usually ships in 2-4 days

0
