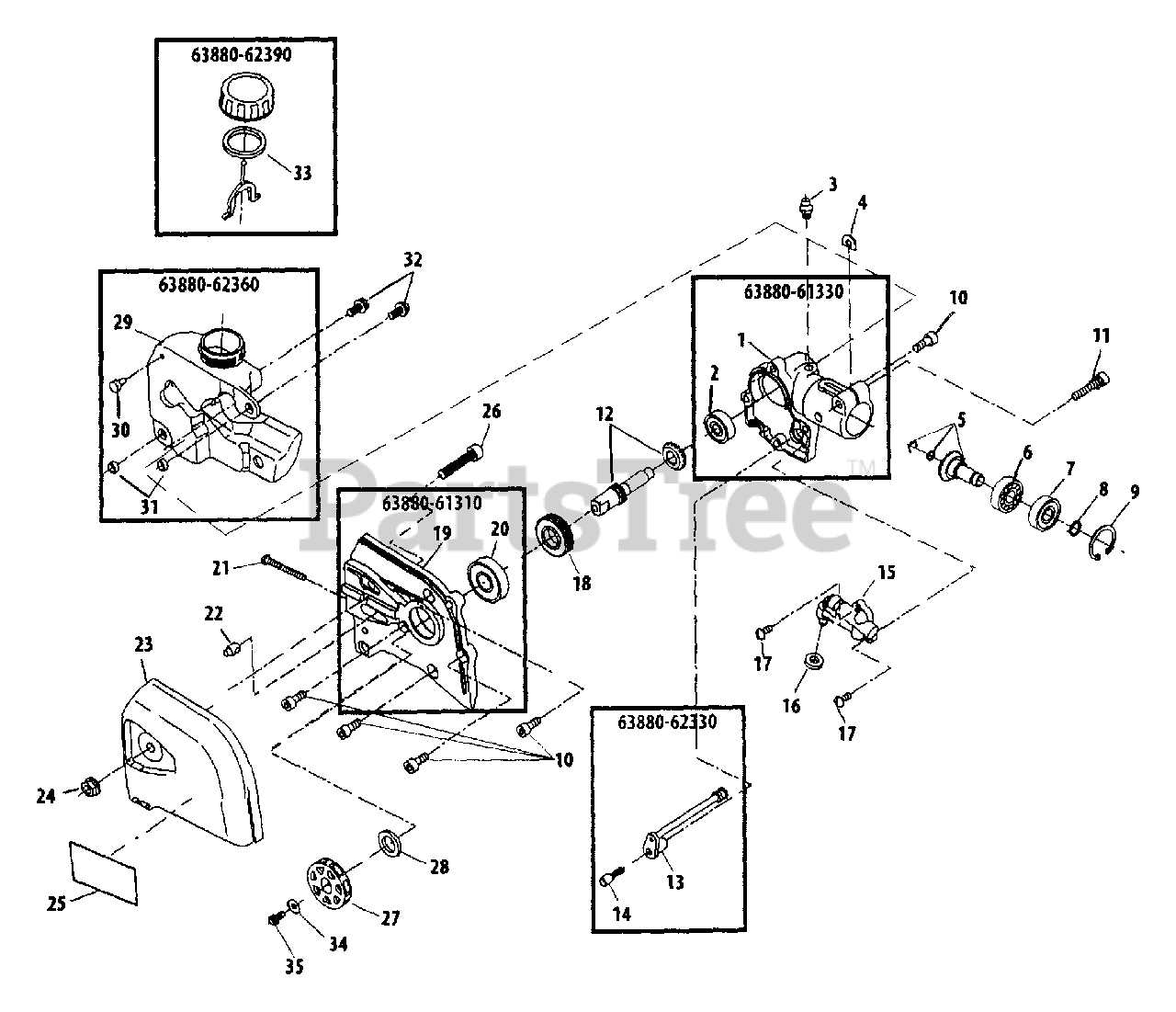

P 230 - Shindaiwa Pole Saw / Pruner Gearcase Parts Diagram

Pole Saw / Pruner

Gearcase Parts Diagram

  • Title

63880-61330

Echo 63880-61330

GEAR CASE ASSY - RIGHT
(Superseded to 63880-61331)

$118.99

$

In Stock, only 1 left!

0

1

Echo 63880-61340

CASE, GEAR - RIGHT
(Superseded to 63880-61342)

$118.99

$

In Stock, only 1 left!

0

2

Echo 02002-00627

BEARING, BALL - 627ZZ
(Superseded to 90081400627)

$13.99

$

In Stock, only 1 left!

0

3

Echo 20870-61640

FITTING, GREASE
(Superseded to V187000080)

$1.99

$

In Stock, Qty 11

0

4

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

5

Echo 63880-63020

GEAR - BEVEL
(Superseded to V000000130)

$55.99

$

Usually ships in 2-4 days

0

6

Echo 02000-00609

BEARING, BALL - 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

7

Echo 02002-00609

BEARING, BALL - 609ZZ
(Superseded to 90080400609)

$15.99

$

In Stock, Qty 5

0

8

Echo 22420-13350

RING, RETAINING
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0

9

Echo 02432-24120

RING, RETAINING - 24
(Superseded to 9242424000)

$0.99

$

In Stock, Qty 5

0

10

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

11

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, Qty 6

0

12

Echo 63880-63121

GEAR - SHAFT
(Superseded to 63880-63011)

$55.99

$

Usually ships in 2-4 days

0

63880-62330

Echo 63880-62330

OIL TUBE ASSY
(Superseded to P021028850)

$15.99

$

Usually ships in 2-4 days

0

13

Echo 63880-62340

PIPE - OIL
(Superseded to V470000910)

$6.49

$

Usually ships in 2-4 days

0

14

Echo 63880-62350

FILTER
(Superseded to C209000040)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 22156-55200

AUTO-OILER ASSY
(Superseded to 22197-55201)

$63.99

$

In Stock, only 2 left!

0

16

Echo 63880-62320

GASKET, PUMP
(Superseded to V111000050)

$1.99

$

In Stock, only 2 left!

0

17

Echo 11205-04100

SCREW - 4X10
(Superseded to 9157304010)

$0.99

$

In Stock, only 4 left!

0

18

Echo 63880-62310

GEAR - WORM
(Superseded to V652000090)

$2.99

$

Usually ships in 2-4 days

0

63880-61310

Echo 63880-61310

GEAR CASE ASSY - LEFT
(Superseded to 63880-61311)

$88.99

$

Usually ships in 2-4 days

0

19

Echo 63880-61320

GEAR CASE ASSY - LEFT
(Superseded to 63880-61321)

$88.99

$

Usually ships in 2-4 days

0

20

Echo 02006-06001

BEARING, BALL - 6001DDU
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

21

Echo 11260-04351

SCREW - 4X35
(Superseded to V252000110)

$0.99

$

In Stock, only 4 left!

0

22

Echo 1711004000

TENSIONER, CHAIN
(Superseded to C309000080)

$3.49

$

In Stock, only 1 left!

0

23

Echo 63880-61350

COVER
(Superseded to C300000480)

$15.99

$

In Stock, only 1 left!

0

24

Echo 11526-06100

NUT - 6 -- FLANGE
(Superseded to V264000270)

$0.99

$

In Stock, Qty 12

0

25

Echo 19402-00172

LABEL - CAUTION
(Superseded to X505003500)

$4.49

$

Usually ships in 2-4 days

0

26

Echo 01020-06300

SCREW - 6X30
(Superseded to 9110006030)

$0.99

$

In Stock, Qty 5

0

27

Echo 12032-07102

SPROCKET
(Superseded to C580000570)

$19.99

$

In Stock, only 4 left!

0

28

Echo 15401-21020

COLLAR
(Superseded to V357000190)

$3.49

$

In Stock, only 1 left!

0

63880-62360

Echo 63880-62360

OIL TANK ASSY
(Superseded to 63880-62361)

$13.99

$

Usually ships in 2-4 days

0

29

Echo 63880-62380

TANK, OIL
(Superseded to 63880-62381)

$9.99

$

Usually ships in 2-4 days

0

30

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

$4.49

$

Usually ships in 2-4 days

0

31

Echo 1790106030

COLLAR

$

$

Currently unavailable

32

Echo 11207-05120

SCREW - 5X12
(Superseded to 9157705012)

$0.99

$

In Stock, only 4 left!

0

63880-62390

Echo 63880-62390

OIL CAP ASSY
(Superseded to 63880-62391)

$4.99

$

Usually ships in 2-4 days

0

33

Echo 70030-85221

GASKET, CAP
(Superseded to V107000020)

$1.99

$

In Stock, only 3 left!

0

34

Echo 20870-62131

WASHER - 6
(Superseded to V304000240)

$0.99

$

In Stock, Qty 20+

0

35

Echo 11210-06140

SCREW - 6X14
(Superseded to 9114206014)

$0.99

$

In Stock, only 4 left!

0
