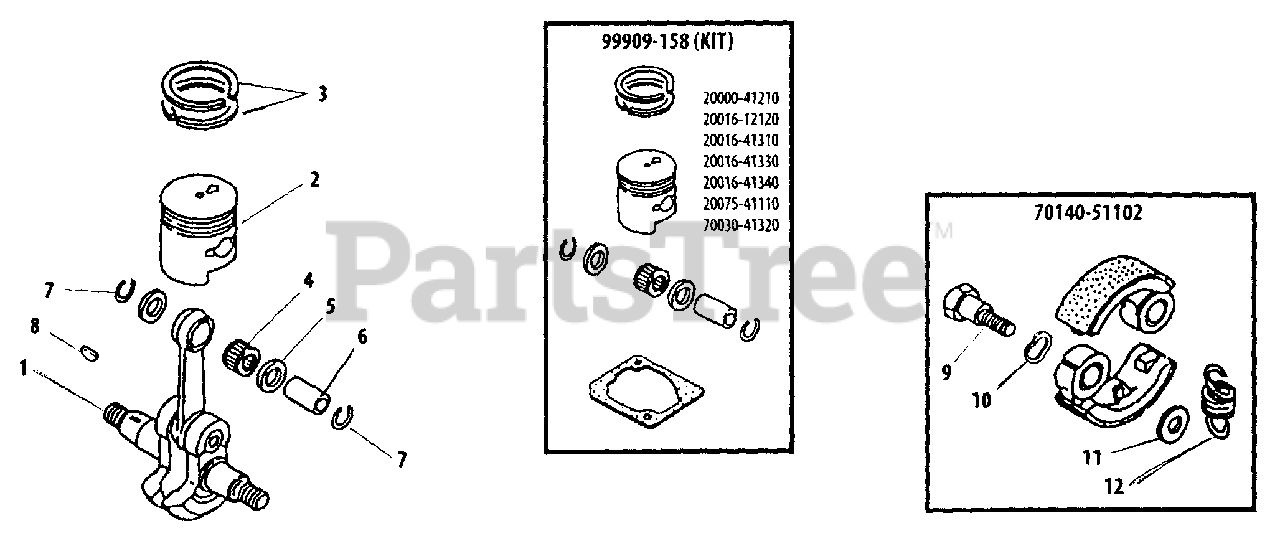

P 230 - Shindaiwa Pole Saw / Pruner Clutch, Piston Parts Diagram

Pole Saw / Pruner

Clutch, Piston Parts Diagram

  • Title

1

Echo 20016-42002

CRANKSHAFT ASSY
(Superseded to A011000930)

$67.99

$

Usually ships in 2-4 days

0

99909-158

Echo 99909-158

PISTON ASSY
(Superseded to 70234-98010)

$60.99

$

In Stock, Qty 6

0

2

Echo 20075-41110

PISTON
(Superseded to 70234-98310)

$35.99

$

Usually ships in 2-4 days

0

3

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.49

$

In Stock, only 2 left!

0

4

Echo 20016-41330

BEARING, NEEDLE
(Superseded to 81593)

$7.99

$

In Stock, only 1 left!

0

5

Echo 20016-41340

WASHER, THRUST
(Superseded to V306000260)

$1.49

$

Usually ships in 2-4 days

0

6

Echo 20016-41310

PIN, PISTON
(Superseded to V606000060)

$3.49

$

In Stock, only 1 left!

0

7

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

Note: See "Cylinder/Muffler" illustration and parts list.

$1.99

$

In Stock, Qty 11

0

8

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

70140-51102

Echo 70140-51102

CLUTCH ASSY
(Superseded to A056000260)

$32.99

$

In Stock, Qty 20+

0

9

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.49

$

In Stock, only 3 left!

0
