P 2260 A - Poulan Pro Walk-Behind Mower Rotory Lawn Mower Parts Diagram

Walk-Behind Mower

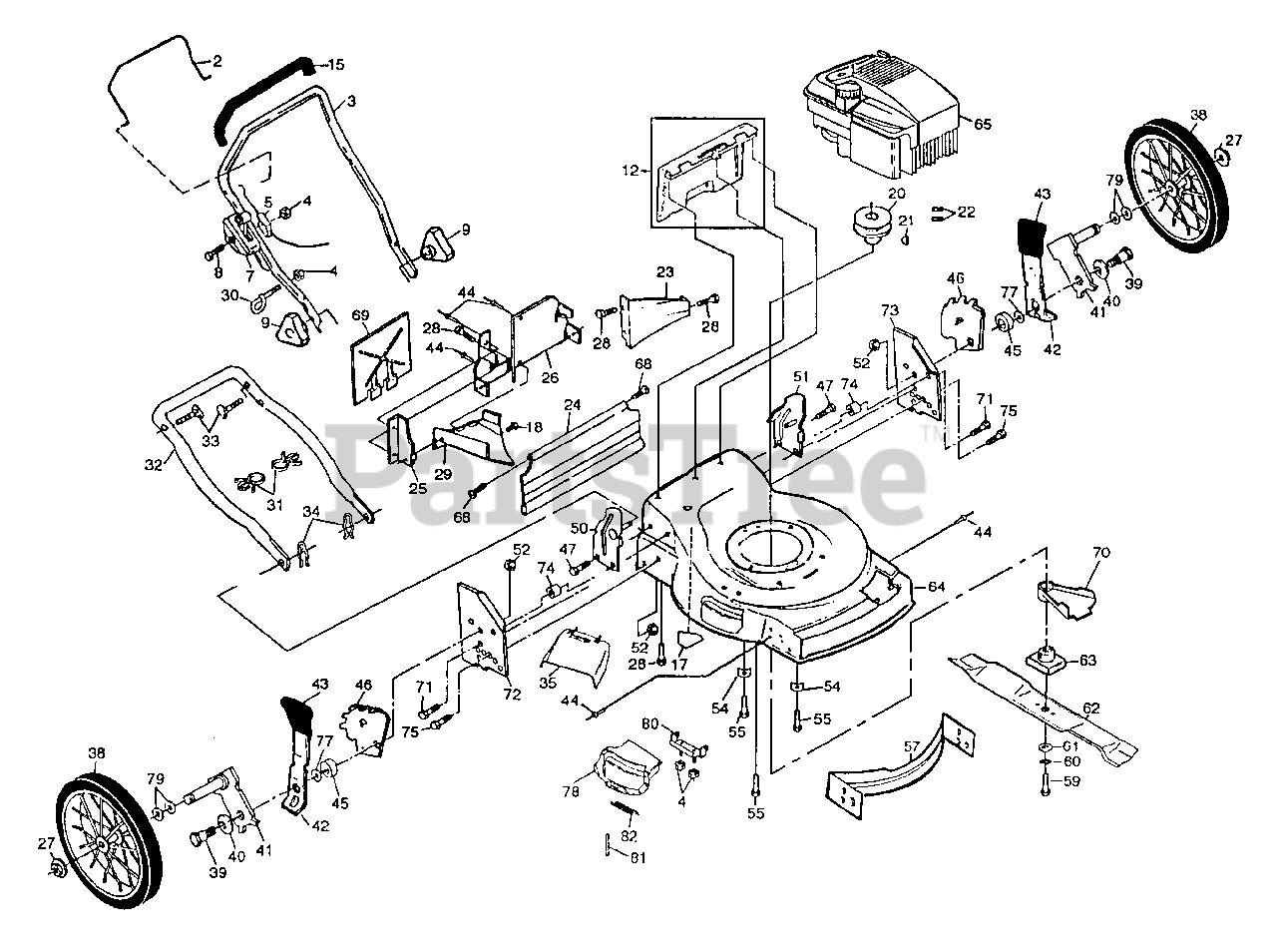

Rotory Lawn Mower Parts Diagram

  • Title
2

Poulan 154507

Control Bar (AYP part number)

$

$

Not available

3

Poulan 145642X479

Upper Handle
(Superseded to 166268X479)

$

$

Not available

4

Poulan 63601

Locknut

$

$

Not available

5

Poulan 130861

Engine Zone Control Cable
(Superseded to 532130861)

$

$

Not available

7

Poulan 700417

Throttle Control
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

8

Poulan 144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 136376

Handle Knob (AYP part number)
(Superseded to 532183724)

$

$

Not available

12

Poulan 151023

Rear Door Kit
(Superseded to 532151023)

$21.99

$

Usually ships in 3-10 days

0

15

Poulan 155890

Handle Grip
(Superseded to 585161003)

$

$

Not available

17

Poulan 107339X

Danger Decal
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 150050

Screw #10
(Superseded to 532150050)

$4.99

$

In Stock, only 1 left!

0

20

Poulan 85543

Engine Pulley
(Superseded to 582940301)

$15.99

$

Usually ships in 3-10 days

0

21

Poulan 87677

Hi Pro Key #505
(Superseded to 532087677)

$

$

Not available

22

Poulan 532059708

Set Screw 1/4-20 x 5/16 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 133040

Baffle, Rear (AYP part number)

$

$

Not available

24

Poulan 140539

Rear Skirt
(Superseded to 532140539)

$

$

Not available

25

Poulan 700365

Side Baffle (AYP part number)

$

$

Not available

26

Poulan 700360

Back Plate (AYP part number)

$

$

Not available

27

Poulan 83923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

28

Poulan 54583

Screw Hex Head 1/4-20 x 1/2
(Superseded to 532054583)

$

$

Not available

29

Poulan 133190X479

Discharge Baffle

$

$

Not available

30

Poulan 132001

Rope Guide (AYP part number)
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

31

Poulan 151517

Cable Clip
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

32

Poulan 157081X479

Lower Handle
(Superseded to 532157081)

$

$

Not available

33

Poulan 131959

Handle Bolt (AYP part number)
(Superseded to 532183724)

$

$

Not available

34

Poulan 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 145285

Clip-on Discharge Deflector
(Superseded to 532145285)

$

$

Not available

38

Poulan 752063

Wheel & Tire Assembly
(Superseded to 532752063)

$84.99

$

Usually ships in 3-10 days

0

39

Poulan 142748

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

40

Poulan 61651

Spring Washer

$2.99

$

Usually ships in 3-10 days

0

41

Poulan 750913X004

Axle Arm
(Superseded to 532750913)

$

$

Not available

42

Poulan 700331X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

43

Poulan 701037

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

44

Poulan 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

45

Poulan 146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

46

Poulan 700325X007

Wheel Adjusting Bracket
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

47

Poulan 150078

Self-tapping Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

50

Poulan 151588X479

Handle Bracket (Right)

$

$

Not available

51

Poulan 151589X479

Handle Bracket (Left)

$

$

Not available

52

Poulan 751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

55

Poulan 150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 532132255

Front Baffle (AYP part number)
(Superseded to 532144964)

$34.99

$

Usually ships in 3-10 days

0

59

Poulan 851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

60

Poulan 850263

Helical Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

61

Poulan 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

62

Poulan 141114

Blade 22"
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

63

Poulan 851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

64

Poulan 158934

Lawn Mower Housing Kit

Note: Includes Key No. 17

$125.99

$

Usually ships in 3-10 days

0

65

Engine (See Breakdown)

$

$

Not available

68

Poulan 88652

Hinge Screw
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

69

Poulan 133170X479

Mulcher Plate (AYP part number)
(Superseded to 532166649)

$

$

Not available

70

Poulan 134612

Debris Shield (AYP part number)

$

$

Not available

71

Poulan 149588

Thread Cutting Screw 5/16 - 18 x 1-1/2
(Superseded to 532149588)

$6.49

$

Usually ships in 3-10 days

0

72

Poulan 170641X479

Support Bracket (RH) (AYP part number)

$

$

Not available

73

Poulan 107610X479

Support Bracket (LH) (AYP part number)

$

$

Not available

74

Poulan 73713

Spacer

$

$

Not available

75

Poulan 74780612

Bolt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

77

Poulan 88348

Flat Washer
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

78

Poulan 145281

Combi-cut Door
(Superseded to 582964201)

$9.99

$

Usually ships in 3-10 days

0

79

Poulan 57143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

80

Poulan 147775

Hinge Bracket
(Superseded to 532147775)

$3.99

$

Usually ships in 3-10 days

0

81

Poulan 147286

Rod
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

82

Poulan 152186

Hinge Spring
(Superseded to 532152186)

$6.49

$

Usually ships in 3-10 days

0

Poulan 145658

Operator's Manual (English)
(Superseded to 917145658)

$5.99

$

Usually ships in 3-10 days

0

Poulan 145659

Operator's Manual (French)

$

$

Not available

Poulan 158932

Replacement Parts Manual

$3.49

$

Usually ships in 3-10 days

0
