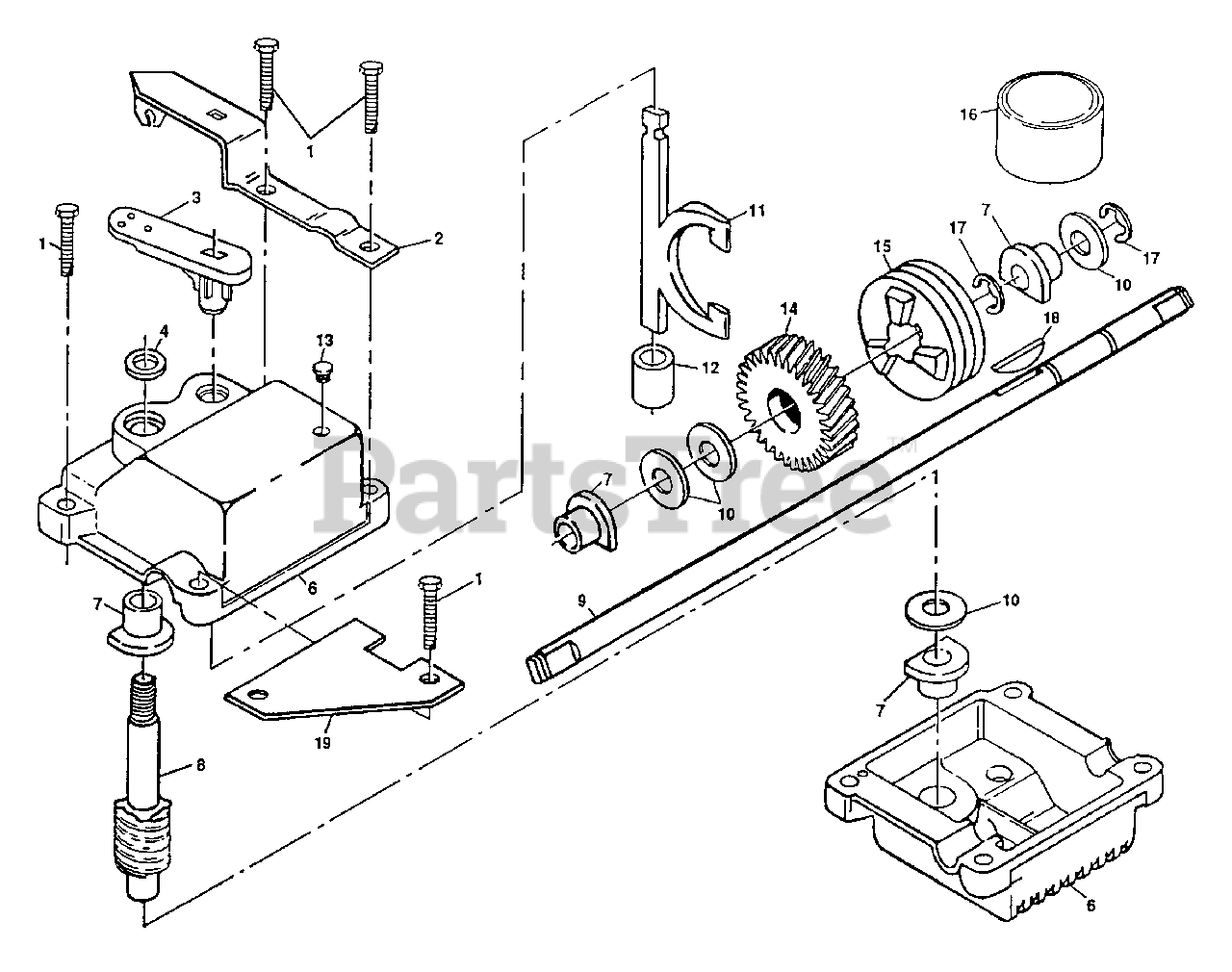

P 2260 A - Poulan Pro Walk-Behind Mower Gear Case Assembly Parts Diagram

Walk-Behind Mower

Gear Case Assembly Parts Diagram

  • Title
1

Poulan 17490416

Tapping Screw 1/4-20 x 1-1/4
(Superseded to 583608301)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 137055X004

Engagement Bracket
(Superseded to 532137055)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 137053

Shifter
(Superseded to 532137053)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 57072

Seal
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 48373

Gear Case Halves Kit

Note: Includes Key Nos. 4, 5, and 7

$

$

Not available

7

Poulan 77881

Bearing
(Superseded to 532077881)

$30.99

$

Usually ships in 3-10 days

0

8

Poulan 137051

Worm Shaft
(Superseded to 532183863)

$

$

Not available

9

Poulan 137074

Drive Shaft

$

$

Not available

10

Poulan 57079

Hardened Washer
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

11

Poulan 131484

Clutch Yoke
(Superseded to 532131484)

$

$

Not available

12

Poulan 700343

Bushing
(Superseded to 532700343)

$

$

Not available

13

Poulan 86447

Plug
(Superseded to 532086447)

$

$

Not available

14

Poulan 137050

Helical Gear
(Superseded to 532137050)

$46.99

$

In Stock, only 1 left!

0

15

Poulan 750436X

Clutch Jaw
(Superseded to 532750436)

$

$

Not available

16

Poulan 750369

Grease (AYP part number)

$

$

Not available

17

Poulan 12000003

E-Ring
(Superseded to 812000003)

$

$

Not available

18

Poulan 850848

Hi-Pro Key
(Superseded to 532850848)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 81585X004

Spring Bracket

$2.99

$

Usually ships in 3-10 days

0
