P 2187520E (7800949-00) - Snapper 21" Walk-Behind Mower, 8.75hp Wheel & Height-of-Cut Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

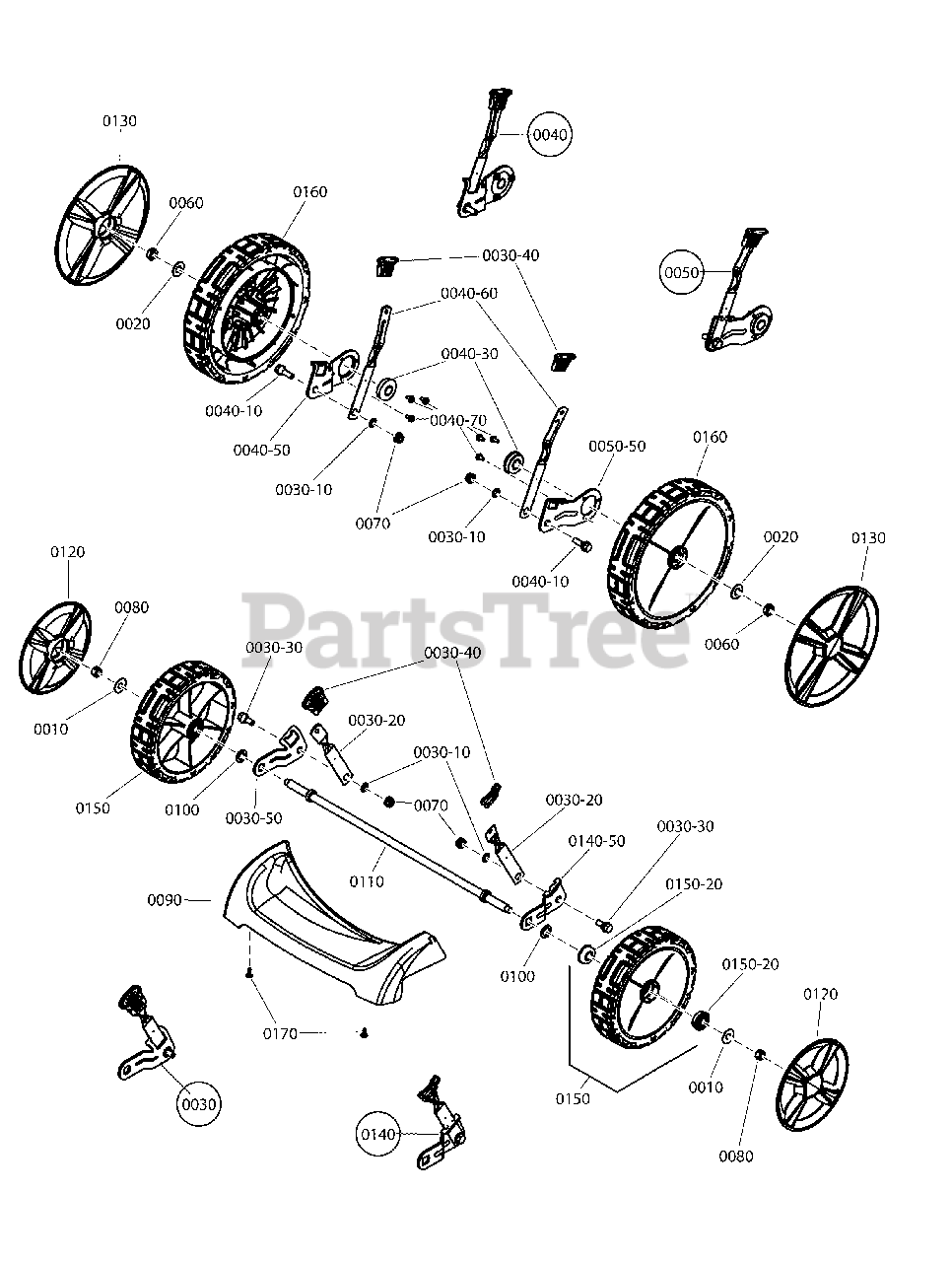

Wheel & Height-of-Cut Group Parts Diagram

  • Title

0010

Snapper 703966

WASHER, 1 OD x .387 ID, Flat

$4.49

$

In Stock, only 2 left!

0

0020

Snapper 703964

WASHER, 7/16" ID, 1" OD, .060 Thk, Flat, ZC/CL

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 7600180YP

KIT, Front Wheel Arm Assembly, RH

$

$

Not available

0030-10

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0030-20

Snapper 7012325YP

LATCH, Height

$5.99

$

In Stock, Qty 20+

0

0030-30

Snapper 703839

BOLT, 5/16-18 X .750, Hex Washer Head Shoulder, Zinc/Clear

$5.49

$

In Stock, only 2 left!

0

0030-40

Snapper 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 8

0

0030-50

Snapper 7031017YP

WHEEL ARM, Front, Round Hole, RH, Clear

$14.99

$

Usually ships in 2-12 days

0

0040

Snapper 7054246YP

ASSEMBLY, Wheel Arm, Long, RR

$

$

Not available

0040-10

Snapper 703840

BOLT, 5/16-18 X 1.0, Hex Washer Head .435 Dia. Shoulder, ZC/CL

$5.49

$

In Stock, only 2 left!

0

0040-30

Snapper 7012312YP

BEARING, 9/16" ID

$11.99

$

In Stock, Qty 20+

0

0040-50

Snapper 7032722YP

ARM, Wheel, Right Rear, Zinc/Clear

$

$

Not available

0040-60

Snapper 7035717YP

LATCH, Height Adjusting, (long)

$6.99

$

In Stock, Qty 10

0

0040-70

Snapper 703967

SCREW, #10-32 x 3/8, Torx Hex Washer Head Self-Tap, ZC/CL

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 7054247YP

ASSEMBLY, Wheel Arm, Left Rear, Long

$40.99

$

In Stock, Qty 9

0

0050-50

Snapper 7032723YP

ARM, Wheel, Left Rear, Zinc/Clear

$6.49

$

In Stock, Qty 8

0

0060

Snapper 703348

NUT, 7/16-20, Hex Jam Center Lock, GR B, Zinc/Clear

$5.49

$

In Stock, Qty 20+

0

0070

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0080

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0090

Snapper 7100196YP

COVER, Front 21 Walk

$23.99

$

Usually ships in 2-12 days

0

0100

Snapper 703835

WASHER, Shim, .875 x .531 x .060

$4.49

$

In Stock, Qty 15

0

0110

Snapper 7100752YP

AXLE, Easy Line (20.44" L, 3/8-16 Threads)

$

$

Not available

0120

Snapper 7101350YP

HUBCAP, 8" & 9" Spoked Wheel, Cool Gray

$10.99

$

In Stock, Qty 19

0

0130

Snapper 7102625YP

HUBCAP, 10 Wheel, Spoked - Cool Gray

$4.99

$

In Stock, Qty 9

0

0140

Snapper 7600183YP

ASSEMBLY, Front Left Wheel Arm (.512 Square Hole)

$

$

Not available

0140-50

Snapper 7011393YP

WHEEL ARM, L.H. Front (.512 Square Hole) CZ/CL

$

$

Not available

0150

Snapper 7500540YP

ASSEMBLY, Wheel, 8 x 2 Idle, Snapper Tread, Charcoal Gray

$40.99

$

In Stock, only 2 left!

0

0150-20

Snapper 7101380YP

BALL BEARING, 1-1/8 O.D., Flange
(Superseded to 071579MA)

$40.99

$

In Stock, only 1 left!

0

0160

Snapper 7501078YP

ASSEMBLY, Wheel, 10"X2" "DD" Insert Drive, Charcol Gray

$47.99

$

In Stock, Qty 20+

0

0170

Snapper 703834

SCREW, 4.8MM X 1.59MM X 13MM, Torx Round Washer Head, HI-LO, ZC/CL

$4.49

$

In Stock, only 4 left!

0
