P 2187520E (7800949-00) - Snapper 21" Walk-Behind Mower, 8.75hp Handle Group, P21 Parts Diagram

21" Walk-Behind Mower, 8.75hp

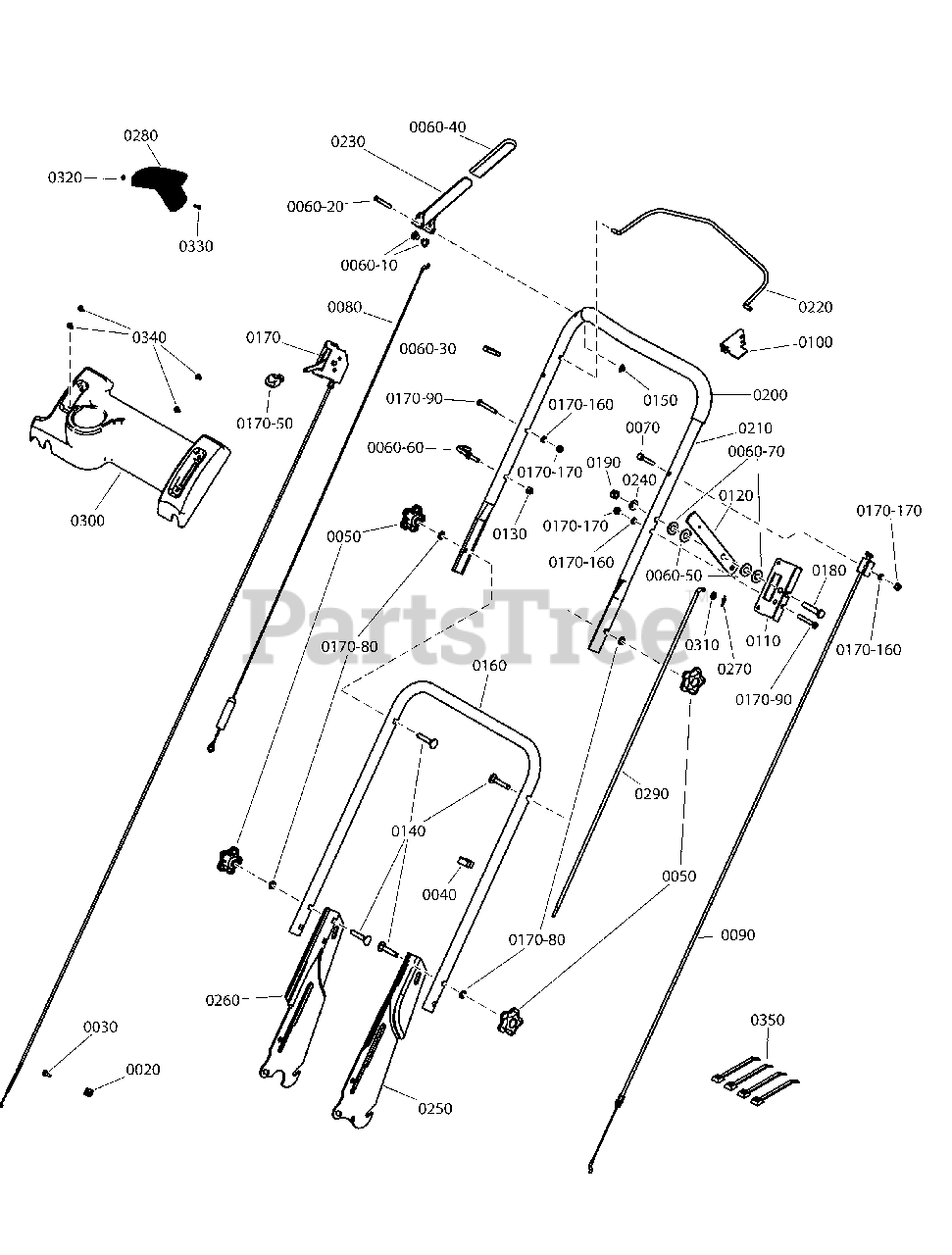

Handle Group, P21 Parts Diagram

  • Title

0020

Snapper 690798

CLAMP, Casing

$5.49

$

In Stock, only 1 left!

0

0030

Snapper 704324

SCREW, #10-32 X .615, Hex Head Cap Slotted, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0040

Snapper 7023813SM

CLIP, Wiring Harness

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 7105085YP

KNOB, 5/16-18, Handle, Fluted 5 Prong, Black

$3.99

$

In Stock, Qty 20+

0

0060-10

Snapper 7014343YP

BUSHING, Flanged, .27 ID, Nylon, Black

$3.99

$

In Stock, Qty 20+

0

0060-20

Snapper 704031

PIN, 1/4 X 1.5", Clevis, ZC/CL

$3.99

$

In Stock, Qty 20+

0

0060-30

Snapper 7026219YP

CLAMP, 7/8" Double Cable

$4.49

$

In Stock, Qty 10

0

0060-40

Snapper 7028407YP

GRIP, International Symbol, 4.6" Black

$5.49

$

In Stock, only 4 left!

0

0060-50

Snapper 704004

WASHER, .406 ID X 1.0 OD X .063 Thk, Flat Nylon

$3.99

$

In Stock, only 1 left!

0

0060-60

Snapper 7028488MA

GUIDE, 1/4-20, Rope, CL/ZC

$6.49

$

Usually ships in 2-12 days

0

0060-70

Snapper 703964

WASHER, 7/16" ID, 1" OD, .060 Thk, Flat, ZC/CL

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 703234

SCREW, 1/4-20 X 1.5, Hex Head Cap, GR5, ZC/CL

$4.49

$

In Stock, only 4 left!

0

0080

Snapper 7034604YP

CABLE, Clutch Control, 41.25" L

$21.99

$

In Stock, Qty 20+

0

0090

Snapper 7102593YP

CABLE, Zone Control, W14, 52.661" L

$21.99

$

In Stock, Qty 16

0

0100

Snapper 7034872YP

CLIP, Zone Control

$5.99

$

In Stock, Qty 5

0

0110

Snapper 7074003YP

BRACKET, Shift, Black Zinc

$6.99

$

Usually ships in 2-12 days

0

0120

Snapper 7074113YP

LEVER, Shift

$9.49

$

Usually ships in 2-12 days

0

0130

Snapper 15X145MA

NUT, 1/4-20, Nylock, GR A, Zinc/Clear
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 703059

BOLT, 5/16-18 X 2.00 Conical Head, SN ZC/CL

$4.49

$

In Stock, Qty 12

0

0150

Snapper 704005

NUT, 1/4, Push, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 7074156AYP

HANDLE, Middle
(Superseded to 7106232AYP)

$

$

Not available

0170

Snapper 7102594YP

CONTROL, Throttle, W14, 63.12" L

$41.99

$

Usually ships in 2-12 days

0

0170-50

Snapper 7075308

KNOB, THROTTLE
(Superseded to 7075308YP)

$11.99

$

In Stock, only 2 left!

0

0170-80

Snapper 7090391SM

WASHER, 5/16, Internal Lock, Zinc/Clear
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0170-90

Snapper 703163

SCREW, 1/4-20 X 2.0, Hex Head Cap, GR5

$3.49

$

Usually ships in 2-12 days

0

0170-160

Snapper 703462

WASHER, 1/4 Internal Tooth Lock, YZ

$4.49

$

In Stock, Qty 7

0

0170-170

Snapper 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 703589

SCREW, 3/8-16 x 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0190

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0200

Snapper 7023810YP

FOAM GRIP, 18.75"

$8.49

$

Usually ships in 2-12 days

0

0210

Snapper 7074411AYP

HANDLE, Upper
(Superseded to 7106258AYP)

$

$

Not available

0220

Snapper 7074418AYP

BAIL, OPC Control (16.6" Wide)

$34.99

$

In Stock, Qty 7

0

0230

Snapper 7074473AYP

HANDLE, Clutch
(Superseded to 7074473BMYP)

$16.99

$

In Stock, Qty 20+

0

0240

Snapper 704006

WASHER, 3/8" ID x 3/4" OD, Belleville, Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

0250

Snapper 7033985AYP

HANDLE, Lower, ADJ, LH

$43.99

$

Usually ships in 2-12 days

0

0260

Snapper 7033986AYP

HANDLE, Lower, ADJ, RH

$36.99

$

In Stock, only 4 left!

0

0270

Snapper 704030

PIN, 5/16 X 1.044, Self-Locking Cotter, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0280

Snapper 7075182YP

KNOB, Shift, Red

$9.99

$

In Stock, only 1 left!

0

0290

Snapper 7074133YP

ROD, Speed Control (35.5" L, 1/4-28 thread)

$27.99

$

In Stock, Qty 7

0

0300

Snapper 7074140YP

PANEL, Control, No Electric Switch Hole

$70.99

$

Usually ships in 2-12 days

0

0310

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0320

Snapper 703460

NUT, #8-32, Hex, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0330

Snapper 703351

SCREW, #8-32 X 0.50, Machine Fillister Head, Zinc/Clear

$5.49

$

In Stock, only 1 left!

0

0340

Snapper 703961

SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0350

Snapper 7024641YP

WIRE TIE, 5.5" L

$5.99

$

In Stock, only 1 left!

0
