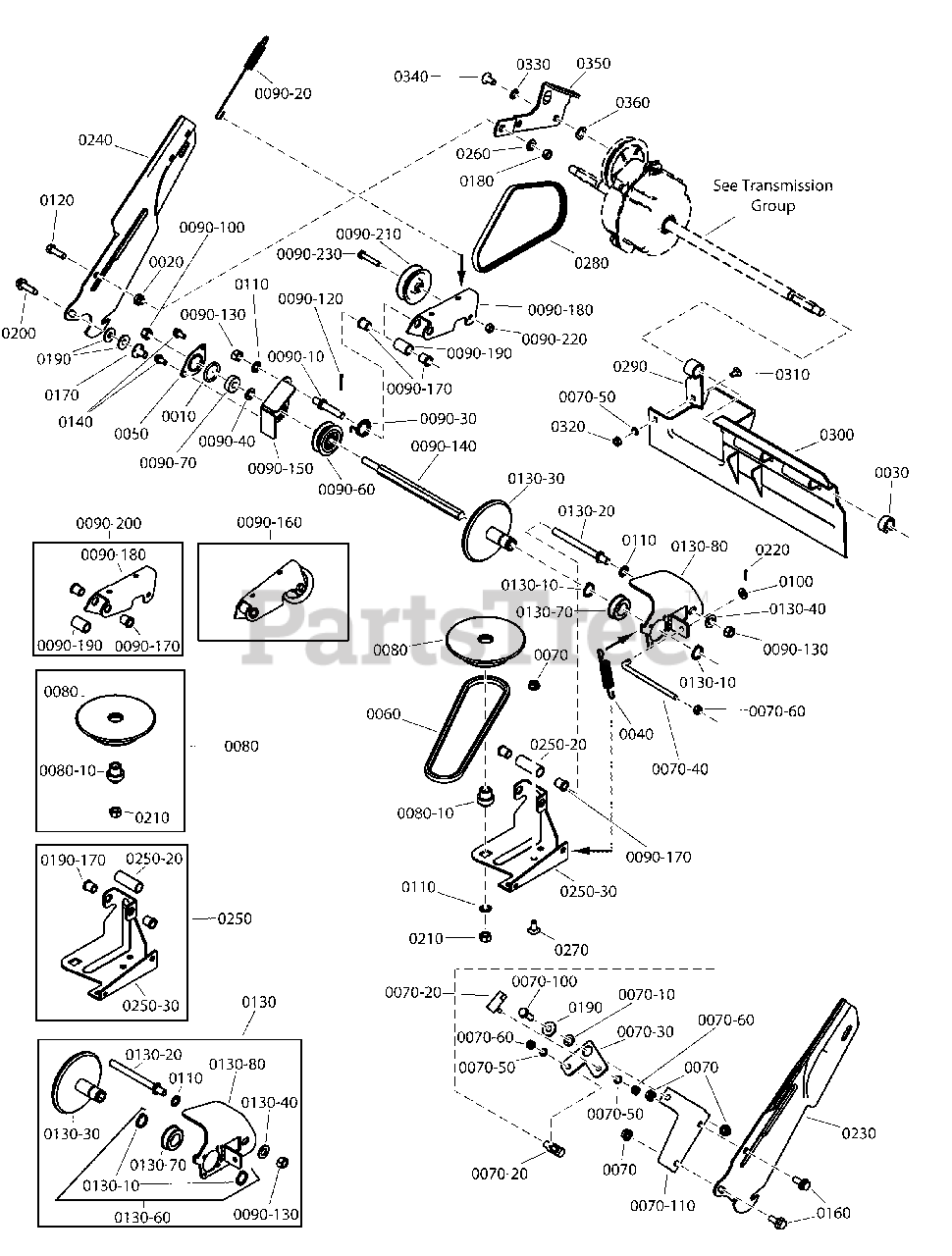

P 2187520E (7800949-00) - Snapper 21" Walk-Behind Mower, 8.75hp Drive System Parts Diagram

21" Walk-Behind Mower, 8.75hp

Drive System Parts Diagram

  • Title

0010

Snapper 704008

O-RING, 1.0 ID X 1.25 OD X 0.125 Thk

$3.99

$

In Stock, Qty 20+

0

0020

Snapper 7012114SM

BUSHING, Differential

$4.99

$

In Stock, Qty 9

0

0030

Snapper 704009

RING, Split, .68 x .93 x .44 (Black)

$3.99

$

Usually ships in 2-12 days

0

0040

Snapper 7029025YP

SPRING, Extension, .58 x 3.2

$5.99

$

In Stock, Qty 7

0

0050

Snapper 7031809YP

HOLDER, Bearing (Outer Half), ZC/CL

$4.49

$

In Stock, Qty 6

0

0060

Snapper 7046784YP

BELT, Engine Drive (Stretch)

$19.99

$

In Stock, Qty 20+

0

0070

Snapper 690272MA

NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear

$

$

Not available

0070-10

Snapper 703970

SPACER, .623 OD x .328 ID x .151 L

$4.49

$

Usually ships in 2-12 days

0

0070-20

Snapper 7015753YP

BALL JOINT, 1/4-28

$10.99

$

In Stock, only 1 left!

0

0070-30

Snapper 7073913YP

BELL CRANK, Black Zinc

$24.99

$

Usually ships in 2-12 days

0

0070-40

Snapper 7074145YP

LINK, Transfer (1/4-28 thread)

$9.49

$

In Stock, only 1 left!

0

0070-50

Snapper 703462

WASHER, 1/4 Internal Tooth Lock, YZ

$4.49

$

In Stock, Qty 6

0

0070-60

Snapper 703461

NUT, 1/4-28 Hex, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 15

0

0070-100

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 13

0

0070-110

Snapper 7073822BMYP

BRACKET, Bell Crank

$

$

Currently unavailable

0080

Snapper 7073528YP

DRIVE DISC, Steel (W/O Bushing)

$38.99

$

In Stock, Qty 20+

0

0080

Snapper 7061275YP

KIT, Drive Disc, Steel (includes Disc, Bushing & Nut)
(Superseded to 7073528YP)

$38.99

$

In Stock, Qty 20+

0

0080-10

Snapper 703971

BUSHING, 0.385 ID X 0.925 OD X 1.018 Thk, ZC/CL

$5.99

$

In Stock, only 4 left!

0

0090-10

Snapper 703836

STUD, 3/8-24 X 2.38, Single End, ZC/CL

$8.49

$

In Stock, only 1 left!

0

0090-20

Snapper 7012122YP

SPRING, Clutch, Adjustable Tension

$9.49

$

In Stock, Qty 20+

0

0090-30

Snapper 7012126YP

SPRING, Idler Torsion

$4.49

$

In Stock, only 1 left!

0

0090-40

Snapper 703946

WASHER, .390 ID X .720 OD X .054 Thk, Flat, ZC/CL

$3.99

$

In Stock, Qty 20+

0

0090-60

Snapper 7024521YP

PULLEY, Poly-V, 2" OD, .6" Wide, Alum.
(Superseded to 7019383YP)

$54.99

$

In Stock, Qty 12

0

0090-60

Snapper 7019383YP

PULLEY, Poly-V, 2" OD, .65" Wide, Steel

$54.99

$

In Stock, Qty 12

0

0090-70

Snapper 7028014YP

BALL BEARING, Spherical O.D., .38 I.D.

$17.99

$

In Stock, Qty 20+

0

0090-100

Snapper 703458

NUT, 3/8-24 Hex Center Lock, GR B, YZ

$4.99

$

In Stock, Qty 14

0

0090-120

Snapper 331613MA

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$25.99

$

Usually ships in 2-12 days

0

0090-130

Snapper 703895

NUT, 3/8-24, Hex, GR 5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0090-140

Snapper 7072284YP

SHAFT, Hex (3/8-24 thread, one end)

$

$

Not available

0090-150

Snapper 7031873YP

HOLDER, Bearing (Inner Half)

$

$

Not available

0090-160

Snapper 7051921YP

ASSEMBLY, Clutch Idler (Pulley, Nut, Bolt, Bushings & Spacer)

$108.99

$

In Stock, only 1 left!

0

0090-170

Snapper 703973

BUSHING, Flanged, .381 x .625 x .62, Metal, CZ/CL

$5.99

$

In Stock, Qty 9

0

0090-180

Snapper 7032832YP

ARM, Clutch Idler
(Superseded to 7032832AYP)

$22.99

$

In Stock, only 1 left!

0

0090-190

Snapper 703974

SPACER, Idler Arm (.500 ID x .970 Long), ZC/CL

$6.49

$

Usually ships in 2-12 days

0

0090-200

Snapper 7600173YP

KIT, Idler Arm, Bushing & Spacer Assembly

$32.99

$

Usually ships in 2-12 days

0

0090-210

Snapper 7012124YP

PULLEY, Flat Idler, .25 ID, 2.25 OD

$18.99

$

In Stock, Qty 6

0

0090-220

Snapper 703972

NUT, 1/4-28 Hex Top Lock, GR 5, BZ

$3.49

$

In Stock, Qty 6

0

0090-230

Snapper 703828

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5, CZ/CL

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 71067MA

WASHER, 1/4, Flat, GR5 Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0110

Snapper 703930

WASHER, 3/8" Internal Tooth Lock,Type A, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 703301

SCREW, 5/16-24 x 1 Hex Head Cap, GR 5, BZ

$3.99

$

In Stock, only 2 left!

0

0130

Snapper 7600172YP

ASSEMBLY, Driven Disc, Cantilever

$108.99

$

Usually ships in 2-12 days

0

0130-10

Snapper 703975

RETAINING RING, 3/4" ID, ZC/CL

$3.99

$

In Stock, Qty 19

0

0130-20

Snapper 703837

STUD, 3/8-24 X 4.5, Plate, ZC/CL

$8.49

$

Usually ships in 2-12 days

0

0130-30

Snapper 7041855YP

DRIVEN DISC, Cantilever

$41.99

$

In Stock, only 2 left!

0

0130-40

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 17

0

0130-60

Snapper 7501961YP

ASSEMBLY, Thrust Plate & Bearing

$28.99

$

In Stock, only 1 left!

0

0130-70

Snapper 7026693YP

BEARING, 3/4" ID
(Superseded to 707608)

$9.49

$

In Stock, Qty 20+

0

0130-80

Snapper 7300977BMYP

THRUST PLATE, Short, Black

$

$

Currently unavailable

0140

Snapper 704130

SCREW, 1/4-20 X .500, Hex HD, Self-Tap, Zinc/Clear

$3.99

$

In Stock, only 4 left!

0

0160

Snapper 9357MA

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

0170

Snapper 703947

NUT, 5/16-18 X .625, Weld, ZC/CL

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper 703896

NUT, 5/16-24, Hex Center Lock, GR B, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0190

Snapper 703118

WASHER, 7/8, Flat, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 11

0

0200

Snapper 703167

SCREW, 5/16-18 x 1-1/4 Hex Washer Head Self-Tap

$3.99

$

In Stock, only 3 left!

0

0210

Snapper 703457

NUT, 3/8-16, Hex, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0220

Snapper 703464

PIN, 1/16 X 0.50 Cotter, GR 5 Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0230

Snapper 7033985AYP

HANDLE, Lower, ADJ, LH

$43.99

$

Usually ships in 2-12 days

0

0240

Snapper 7033986AYP

HANDLE, Lower, ADJ, RH

$36.99

$

In Stock, only 4 left!

0

0250

Snapper 7052987BM

ASSEMBLY, Deck Bracket, P21S

$

$

Currently unavailable

0250-20

Snapper 703941

SPACER, .50 ID X .650 OD X 1.750, Thk, ZC/CL

$27.99

$

In Stock, only 3 left!

0

0250-30

Snapper 7033774YP

BRACKET, Deck, P21S
(Superseded to 7052987YP)

$

$

Not available

0260

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0270

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0280

Snapper 7012354YP

BELT, Poly-V, V21

$13.99

$

Usually ships in 2-12 days

0

0290

Snapper 7012616YP

SUPPORT, Foot Guard

$4.99

$

In Stock, Qty 7

0

0300

Snapper 7029008YP

GUARD, Rear Foot, 21"

$32.99

$

In Stock, Qty 11

0

0310

Snapper 703978

BOLT, 1/4-20 X 1/2, Carriage, GR5 YZ

$3.99

$

In Stock, Qty 20+

0

0320

Snapper 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0330

Snapper 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0340

Snapper 1753983YP

SCREW, 5/16-18 x 5/8 Truss Head Torx

$6.99

$

In Stock, only 1 left!

0

0350

Snapper 7034179BMYP

LINK, Differential, Commercial

$20.99

$

Usually ships in 2-12 days

0

0360

Snapper 703940

WASHER, 0.445 ID X 0.780 OD X 0.025 Thk, Wave, ZC/CL

$4.49

$

In Stock, Qty 6
