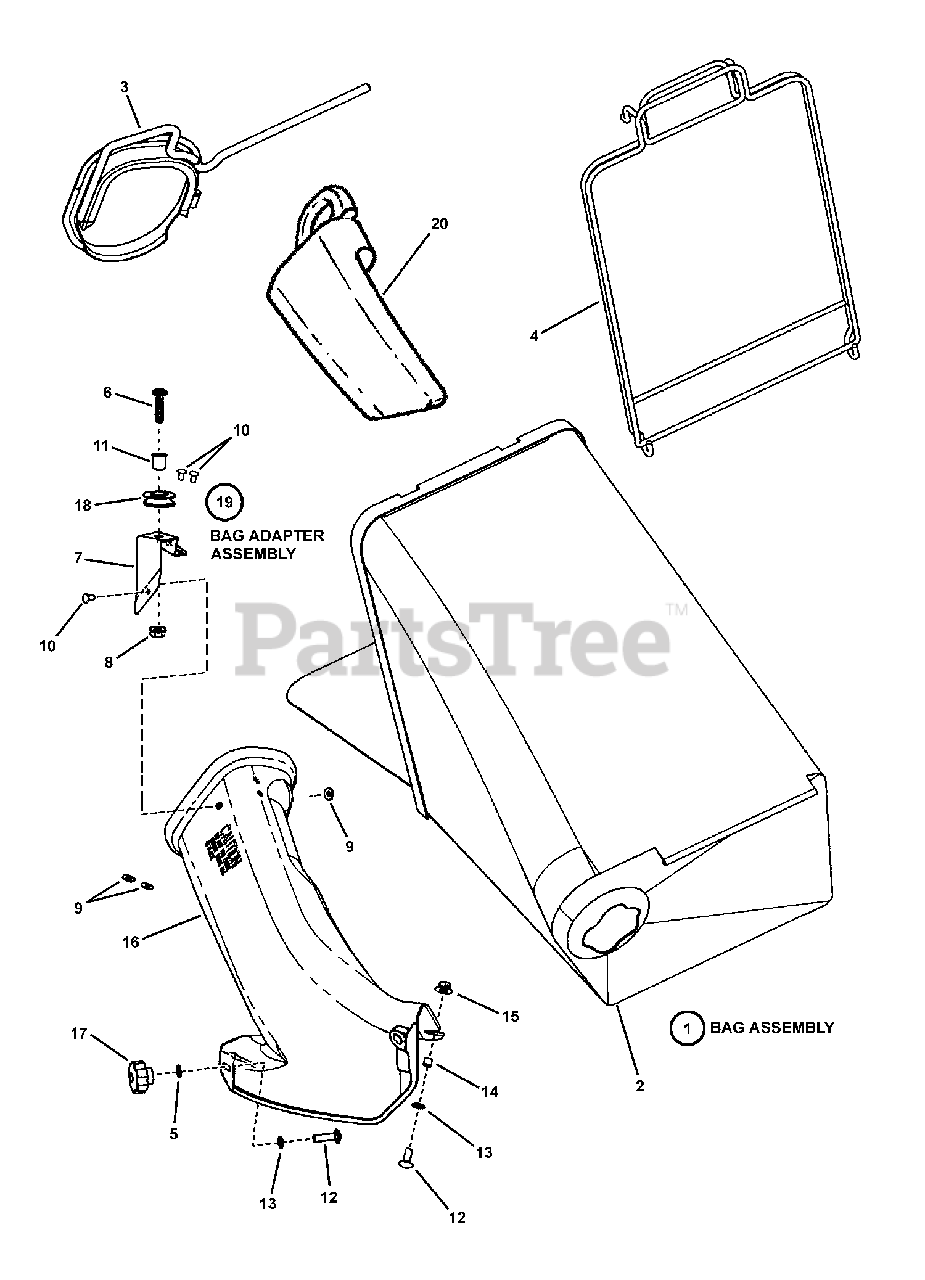

P 2187520BV (7800430) - Snapper 21" Walk-Behind Mower, 8.75hp Grass Bag Components Parts Diagram

21" Walk-Behind Mower, 8.75hp

Grass Bag Components Parts Diagram

  • Title
1

Snapper 7500153

BAG ASSEMBLY, (Door)
(Superseded to 7500153YP)

Note: (includes items 2, 3 & 4)

$

$

Not available

2

Snapper 7100433

GRASS BAG, (Door) No Graphics
(Superseded to 7100433YP)

$95.99

$

Usually ships in 2-12 days

0

3

Snapper 7042489

CONNECTOR, Grass Bag (weldment)
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

4

Snapper 7051906

ASSEMBLY, Bag Wire (12" Wide)
(Superseded to 7051906YP)

$110.99

$

In Stock, only 2 left!

0

5

Snapper 7090189

WASHER, 5/16" Internal/External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap
(Superseded to 7091527YP)

Note: (was 7091984)

$4.49

$

In Stock, only 4 left!

0

7

Snapper 7047082

BRACKET, Rope Guide
(Superseded to 7047082AYP)

$9.49

$

Usually ships in 2-12 days

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: (was 7091070)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7072107

WASHER, 15/32" Flat
(Superseded to 7072107YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 4 left!

0

11

Snapper 7012306

BUSHING, Flange, .381 x .625 x .62
(Superseded to 703973)

$5.99

$

In Stock, Qty 9

0

12

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7024340

SPACER, .316 I.D. x .375 O.D. x .310 thick
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

15

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

16

Snapper 7047081

ADAPTER, Grass Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

17

Snapper 7101022

KNOB, Fluted, 5/16-18 x 1/2"
(Superseded to 7101022YP)

$7.49

$

In Stock, only 4 left!

0

18

Snapper 7024228

PULLEY, Nylon
(Superseded to 7024228SM)

$4.99

$

In Stock, only 3 left!

0

19

Snapper 7058037

ASSY, Grass Bag Adapter
(Superseded to 7600117YP)

Note: (includes items 6, 7, 8, 9, 10, 11, 16 & 18)

$142.99

$

Usually ships in 2-12 days

0

20

Snapper 7016814

PLUG, Chute Adapter
(Superseded to 7016814YP)

$49.99

$

In Stock, only 3 left!

0
