P 2187520 (7800947-00) - Snapper 21" Walk-Behind Mower, 8.75hp Bag & Chute Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

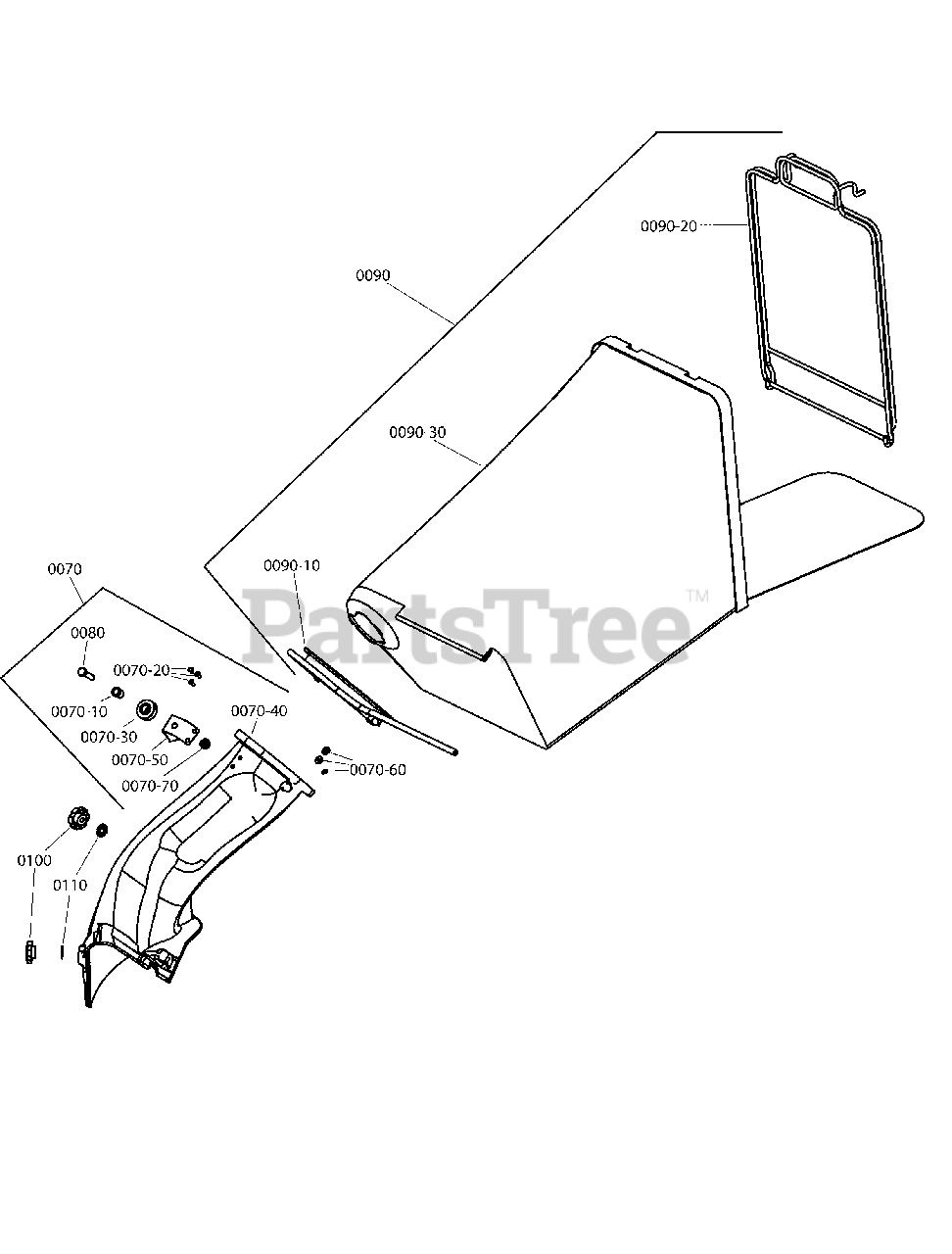

Bag & Chute Group Parts Diagram

  • Title

0070

Snapper 7600117YP

KIT, Bag Adapter Assembly, W/pulley

$142.99

$

Usually ships in 2-12 days

0

0070-10

Snapper 703973

BUSHING, Flanged, .381 x .625 x .62, Metal, CZ/CL

$5.99

$

In Stock, Qty 13

0

0070-20

Snapper 704032

RIVET, 3/16 x .344, Truss HD, ZC/CL

$4.49

$

In Stock, only 2 left!

0

0070-30

Snapper 7024228SM

PULLEY, Nylon, .75 ID, 1.3 OD

$4.99

$

In Stock, only 4 left!

0

0070-40

CHUTE, USE 7600117

$

$

Not available

0070-50

Snapper 7047082AYP

BRACKET, Rope Pulley

$9.49

$

Usually ships in 2-12 days

0

0070-60

Snapper 703942

WASHER, 5/32 Flat, ZC/CL

$3.99

$

In Stock, only 1 left!

0

0070-70

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0080

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

0090

Snapper 7500153YP

ASSEMBLY, Grass Bag, Door, No Graphics, 12.5" W, 26.5" L

$

$

Not available

0090-10

Snapper 7042489AYP

WELDMENT, Bag Connector

$44.99

$

Usually ships in 2-12 days

0

0090-20

Snapper 7051906AYP

ASSEMBLY, Bag Wire, 12.25" Wide
(Superseded to 7051906YP)

$110.99

$

In Stock, only 2 left!

0

0090-30

Snapper 7100433YP

GRASS BAG, Door, No Graphics, 12.5" W, 26.5" L

$95.99

$

In Stock, only 1 left!

0

0100

Snapper 7101022YP

KNOB, (5/16-18 X 1/2 Thread) Fluted

$7.49

$

In Stock, only 1 left!

0

0110

Snapper 703936

WASHER, .325 ID X .850 OD X .041 Thk, Internal External Lock, Type A, ZC/CL

$4.49

$

In Stock, only 1 left!

0
