P 2167520BFC (7800435) - Snapper 21" Walk-Behind Mower, 6.75hp Drive System Self-Propelled Parts Diagram

21" Walk-Behind Mower, 6.75hp

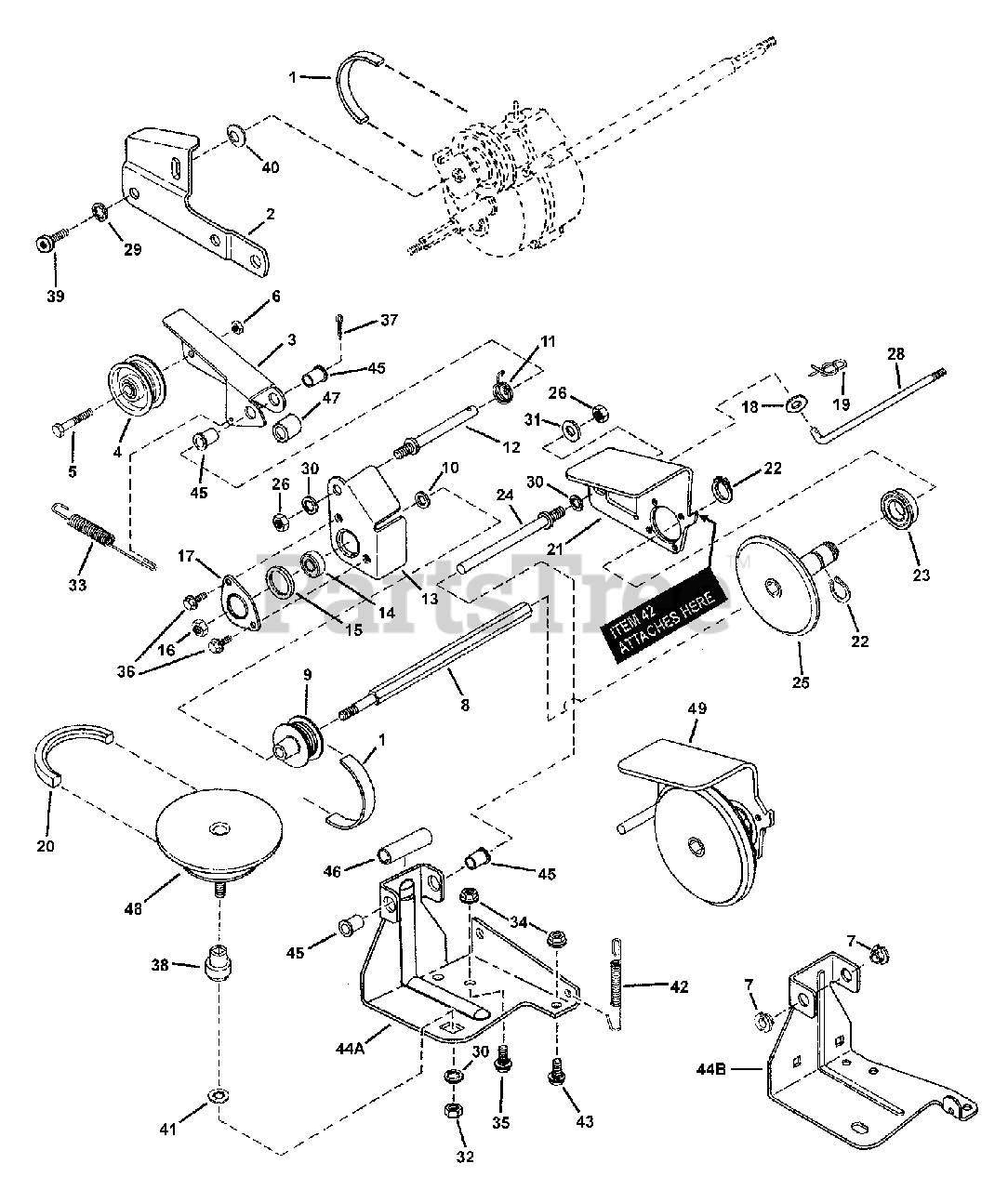

Drive System Self-Propelled Parts Diagram

  • Title

1

Snapper 7012354

BELT, Poly-V
(Superseded to 7012354YP)

$13.99

$

In Stock, Qty 12

0

2

Snapper 7034179

LINK, Differential (Comm.)
(Superseded to 7034179BMYP)

$20.99

$

Usually ships in 2-12 days

0

--

Snapper 7051921

ASSEMBLY, Clutch Idler (Includes items 3 thru 6, 45 & 47)
(Superseded to 7051921YP)

$108.99

$

In Stock, only 1 left!

0

3

Snapper 7032832

ARM, Clutch Idler
(Superseded to 7032832AYP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7012124

PULLEY, Idler, V21
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 8

0

5

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, GR 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

7

Snapper 7012117

BUSHING, 3/8" I.D. Nylon
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

8

Snapper 7072284

SHAFT, Hex Drive
(Superseded to 7072284YP)

$

$

Not available

9

Snapper 7024521

PULLEY, Poly-V (2" O.D.)
(Superseded to 7019383YP)

Note: (for non-Commercial models)

$54.99

$

In Stock, Qty 12

0

10

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7012126

SPRING, Idler- Torsion
(Superseded to 7012126YP)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7012111

STUD, Idler (3/8-24 thread)
(Superseded to 703836)

$8.49

$

In Stock, only 1 left!

0

13

Snapper 7031873

HOLDER, Bearing (Inner Half)
(Superseded to 7031873YP)

$

$

Not available

14

Snapper 7028014

BALL BEARING, Spherical O.D., .38 I.D.
(Superseded to 7028014YP)

$17.99

$

In Stock, Qty 20+

0

15

Snapper 7011025

O-RING, V21
(Superseded to 704008)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090289

NUT, 3/8-24 Hex Center Lock, GR 5
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

17

Snapper 7031809

HOLDER, Bearing (Outer Half)
(Superseded to 7031809YP)

$4.49

$

In Stock, Qty 7

0

18

Snapper 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7090673

COTTER PIN, .06 x .50 YZ
(Superseded to 703464)

Note: (or 7091629)

$4.49

$

In Stock, only 1 left!

0

20

Snapper 7046784

BELT, Engine Drive (Stretch)
(Superseded to 7046784YP)

$19.99

$

In Stock, Qty 20+

0

21

Snapper 7501961

ASSEMBLY, Thrust Plate & Bearing (includes item #'s 21 & 23)
(Superseded to 7501961YP)

$28.99

$

In Stock, only 1 left!

0

21

Snapper 7300977A

THRUST PLATE, Short
(Superseded to 7300977AYP)

Note: (was 7034281)

$

$

Not available

22

Snapper 7010746

RETAINING RING, .625 External
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7026693

BALL BEARING, 3/4" Bore
(Superseded to 707608)

$9.49

$

In Stock, Qty 20+

0

24

Snapper 7012125

GUIDE, Thrust Plate (3/8-24 thread)
(Superseded to 703837)

$8.49

$

In Stock, only 1 left!

0

25

Snapper 7041855

DISC, Driven (Cantilever)
(Superseded to 7041855YP)

Note: (ref: 7074139, Driven Disc Ass'y)

$41.99

$

In Stock, only 1 left!

0

26

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

--

Snapper 7090095

NUT, 1/4-28 Hex (to #28)(not shown)
(Superseded to 7090095FS)

Note: (see Handles & Controls page (item 40))

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7074145

LINK, Transfer (1/4-28 thread)
(Superseded to 7074145YP)

$9.49

$

In Stock, only 1 left!

0

29

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7012122

SPRING, Clutch - 21S
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

34

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: (or 7091601)

$5.49

$

In Stock, Qty 20+

0

35

Snapper 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 8

0

36

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Flange Self-Tap
(Superseded to 7091122SM)

Note: (or 7090539)

$3.99

$

In Stock, Qty 7

0

37

Snapper 7091597

COTTER PIN, 3/32 x 1/2"
(Superseded to 703312)

Note: (or 7090555)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7017696

BUSHING, Powdered Metal
(Superseded to 703971)

$5.99

$

In Stock, Qty 5

0

39

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

40

Snapper 7011724

WASHER, 44 x .78 x .025 Curved
(Superseded to 703940)

$4.49

$

In Stock, Qty 6

0

41

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 7029025

SPRING, Wheel Drive
(Superseded to 7029025YP)

$5.99

$

In Stock, only 3 left!

0

43

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage GR 5
(Superseded to 703447)

Note: (or 7091026)

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7052987

ASSEMBLY, Deck Bracket (Incl. items 44A, 45 & 46)
(Superseded to 7052987YP)

$

$

Not available

44A

Snapper 7033774

BRACKET, Deck
(Superseded to 7033774YP)

$

$

Not available

--

Snapper 7059462

ASSEMBLY, Deck Bracket (Incl. items 7 & 44B)
(Superseded to 7600171YP)

$62.99

$

Usually ships in 2-12 days

0

44B

Snapper 7031919

BRACKET, Deck - Replaced (Use # 44A and # 7 or #'s 45 & 46)
(Superseded to 7031919YP)

$19.99

$

Usually ships in 2-12 days

0

45

Snapper 7012306

BUSHING, Flange, .381 x .625 x .62
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

46

Snapper 7021758

SPACER, .500 x .65 x 1.75
(Superseded to 703941)

$27.99

$

In Stock, only 4 left!

0

47

Snapper 7100447

SPACER, Idler Arm
(Superseded to 703974)

$6.49

$

Usually ships in 2-12 days

0

48

Snapper 7073528

DRIVE DISC, Steel
(Superseded to 7073528YP)

$38.99

$

In Stock, Qty 20+

0

48

Snapper 7061275

* KIT, Drive Disc Assembly
(Superseded to 7073528YP)

$38.99

$

In Stock, Qty 20+

0

49

Snapper 7074139

ASSEMBLY, Driven Disc (includes items 21-26, 30&31)
(Superseded to 7600172YP)

$108.99

$

Usually ships in 2-12 days

0
