P 215517HC (84906) - Snapper 21" Walk-Behind Mower, 5.5hp SNAPPERIZER ACCESSORY Parts Diagram

21" Walk-Behind Mower, 5.5hp

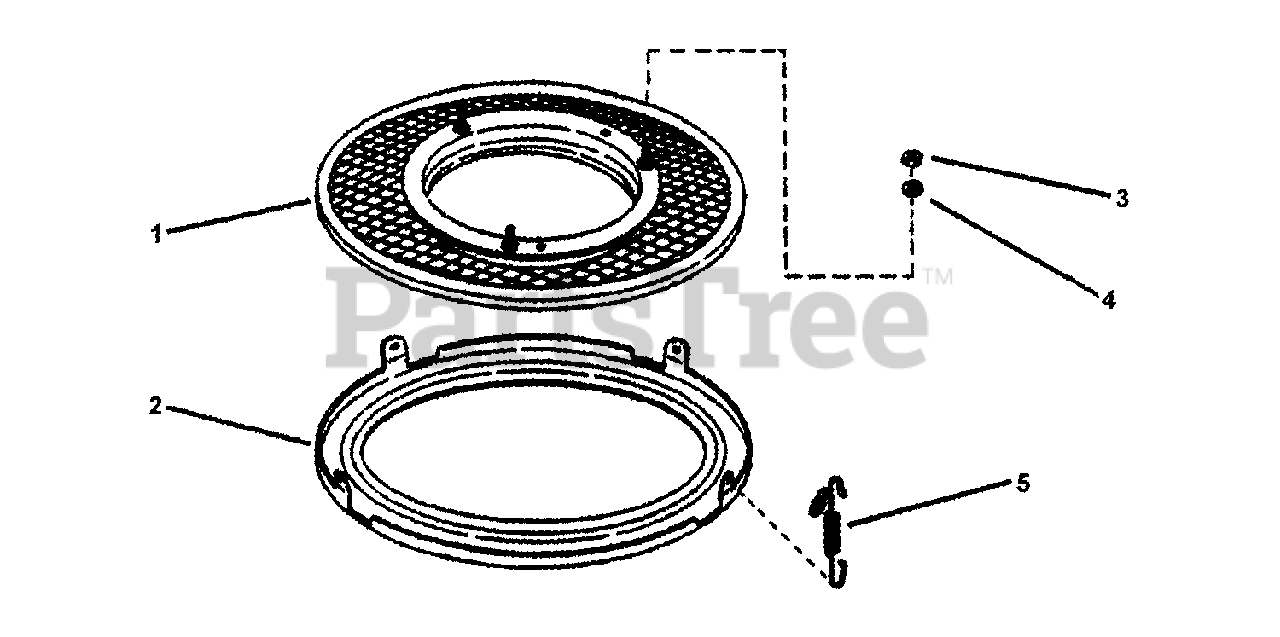

SNAPPERIZER ACCESSORY Parts Diagram

  • Title

--

Snapper 7060440

KIT, Snapperizer (Incl. items 1 & 2 (7039759) thru 5)

Note: used on Hi-Vac Rolled Under-Lip Decks)

$

$

Not available

--

Snapper 7063041

KIT, Snapperizer (Incl. items 1 & 2 (7072002) thru 5)
(Superseded to 7063041YP)

Note: used on "FR" Type Decks

$265.99

$

Usually ships in 2-12 days

0

1

Snapper 7051243

SCREEN, Fastener Assembly
(Superseded to 7051243YP)

$164.99

$

Usually ships in 2-12 days

0

2

Snapper 7039759

RING, Bottom (21.77" Inside Diameter)
(Superseded to 7039759YP)

$165.99

$

Usually ships in 2-12 days

0

2

Snapper 7072002

RING, Bottom (22.60" Inside Diameter)
(Superseded to 7072002YP)

$165.99

$

Usually ships in 2-12 days

0

3

Snapper 7091297

NUT, 5/16-24 Hex, GR5
(Superseded to 703331)

Note: Was 90223, only 1 shown

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

Note: only 1 shown

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7012587

SPRING, Latch
(Superseded to 7012587YP)

Note: only 1 shown

$12.99

$

Usually ships in 2-12 days

0
