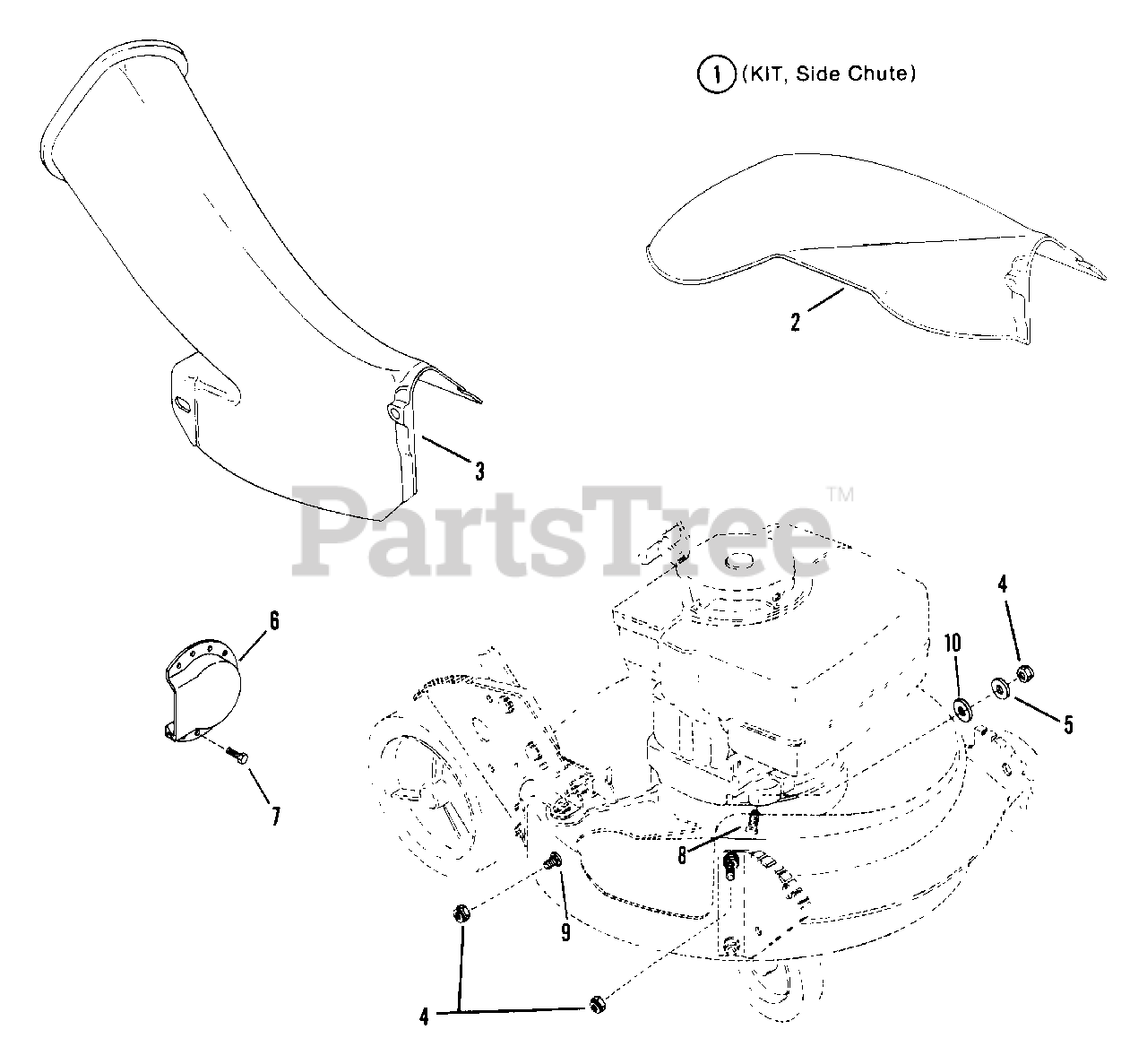

P 21506BE (83380) - Snapper 21" Walk-Behind Mower, 5hp Side Chute, Adapter Parts Diagram

21" Walk-Behind Mower, 5hp

Side Chute, Adapter Parts Diagram

  • Title
1

Snapper 7042965

KIT, Side Chute
(Superseded to 7042965YP)

Note: Was 60955 (10 per box of item 2)

$53.99

$

Usually ships in 2-12 days

0

2

Snapper 7042965

CHUTE, Side
(Superseded to 7042965YP)

Note: Was 16090

$53.99

$

Usually ships in 2-12 days

0

3

Snapper 7016050

ADAPTER, Grass Bag Deck
(Superseded to 7016050YP)

$90.99

$

Usually ships in 2-12 days

0

4

Snapper 7090951

NUT,5/16-18 Hex Lock Flange Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

5

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 7023152

DEFLECTOR, Muffler
(Superseded to 7023152YP)

Note: BRIGGS & STRATTON ONLY

$3.49

$

In Stock, only 3 left!

0

7

Snapper 7023023

SCREW, #8-18 x 3/8" Hex Head Cap
(Superseded to 7023023YP)

Note: BRIGGS & STRATTON ONLY

$3.99

$

Usually ships in 2-12 days

0

Snapper 7060935

GRASS CATCHER
(Superseded to 7060935YP)

Note: (See "Snapperizer" illustration and part list.)

$

$

Not available

8

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7090122

WASHER, 5/16 Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
