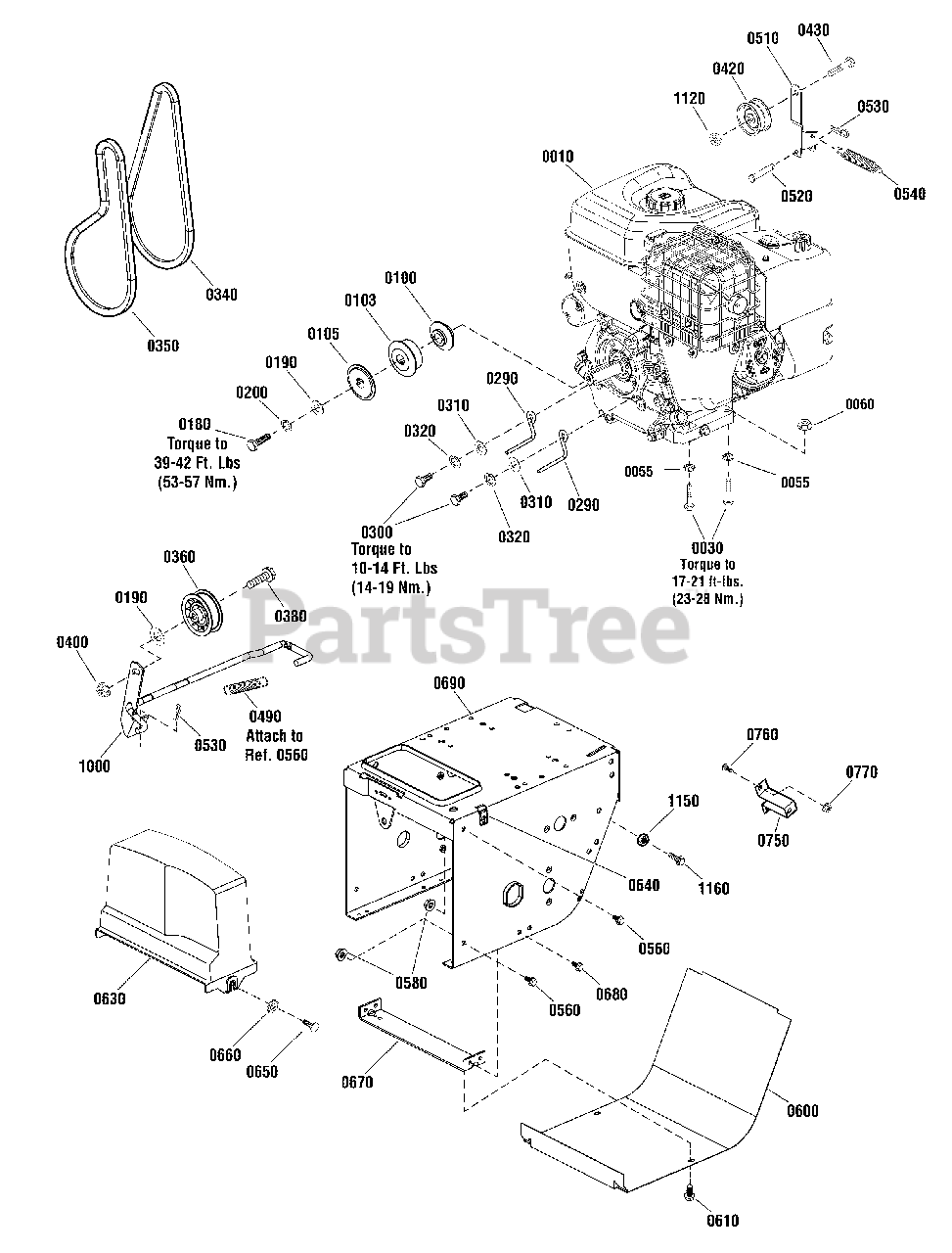

P 2132E (1696529-00) - Snapper 32" Snow Thrower, 21hp Engine Group - 21TP Parts Diagram

32" Snow Thrower, 21hp

Engine Group - 21TP Parts Diagram

  • Title

0010

Snapper 25M137-0005-F1

* ENGINE, B&S 25, 21TP, Model 25M137-0005-F1

$2006.99

$

Usually ships in 2-12 days

0

0030

Snapper 7091513YP

CAPSCREW, Hex Head, 5/16-24 X 1 3/4, GR5

$4.49

$

In Stock, Qty 13

0

0055

Snapper 028X76MA

NUT, Push

$4.49

$

Usually ships in 2-12 days

0

0060

Snapper 703123

NUT, Flange, 5/16-24, GR5

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 706546

PULLEY, Crankshaft

$11.99

$

Usually ships in 2-12 days

0

0103

Snapper 706547

PULLEY, Middle

$16.99

$

Usually ships in 2-12 days

0

0105

Snapper 706548

PULLEY, Outer

$11.99

$

Usually ships in 2-12 days

0

0180

Snapper 1922128SM

CAPSCREW, Hex Head, 3/8-24 X 1 1/2, G8

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 1922755SM

WASHER, Flat
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0200

Snapper 703454

WASHER, Split, 3/8

$3.49

$

In Stock, Qty 15

0

0290

Snapper 1739070YP

GUIDE, Belt

$7.99

$

In Stock, Qty 5

0

0300

Snapper 703336

CAPSCREW, Hex Head, 5/16-24 X 3/4, GR5

$4.49

$

In Stock, Qty 5

0

0310

Snapper 1660731SM

WASHER, Flat

$25.99

$

Usually ships in 2-12 days

0

0320

Snapper 703116

LOCKWASHER, 5/16, Split

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 1753942YP

BELT, V, 3L, 32.9" EL

$24.99

$

Usually ships in 2-12 days

0

0350

Snapper 1754356YP

BELT, V, 4L, 43.35" EL

$29.99

$

Usually ships in 2-12 days

0

0360

Snapper 1726348SM

PULLEY, Idler, 2 3/4

$24.99

$

In Stock, only 4 left!

0

0380

Snapper 703812

BOLT, Flange, 3/8-16 X 1 3/4

$4.49

$

Usually ships in 2-12 days

0

0400

Snapper 703793

NUT, Lock Flange, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0420

Snapper 1668477SM

PULLEY, Idler, 2 1/4

$23.99

$

In Stock, Qty 20+

0

0430

Snapper 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

0490

Snapper 703144

SPRING, 4 1/4

$5.99

$

In Stock, Qty 6

0

0510

Snapper 1703046BMYP

ARM, Idler

$18.99

$

Usually ships in 2-12 days

0

0520

Snapper 703145

PIN, Clevis, 5/16 X 1 3/4

$3.99

$

In Stock, only 3 left!

0

0530

Snapper 1722460SM

HAIRPIN
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0540

Snapper 703146

SPRING
(Superseded to 1687980)

$

$

Not available

0560

Snapper 9357MA

SCREW, 5/16-18 x 3/4, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

0580

Snapper 1927557SM

NUT, Lange, 5/16-18,GR5

$4.99

$

Usually ships in 2-12 days

0

0600

Snapper 1726870DSM

COVER, Bottom

$80.99

$

Usually ships in 2-12 days

0

0610

Snapper B4300GS

SCREW, Taptite,1/4-20 X 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0630

Snapper 706414

COVER, Belt

$

$

Not available

0640

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

0650

Snapper 1918249SM

SCREW, Truss, 5/16-18 X 3/4

$4.99

$

Usually ships in 2-12 days

0

0660

Snapper 703138

WASHER, External, 5/16

$3.99

$

In Stock, Qty 7

0

0670

Snapper 1727004BMYP

SUPPORT, Tie Bar

$14.99

$

Usually ships in 2-12 days

0

0680

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0690

Snapper 80007220DYP

FRAME

$

$

Currently unavailable

0750

Snapper 1720404BMYP

SUPPORT, Clutch Cable

$12.99

$

Usually ships in 2-12 days

0

0760

Snapper 703576

BOLT, Carriage,1/4-20 X 3/4,GR5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0770

Snapper 703061

NUT, Conical, 1/4-20

$3.49

$

In Stock, Qty 11

0

1000

Snapper 1729646BMYP

ROD, Clutch

$117.99

$

Usually ships in 2-12 days

0

1120

Snapper 1928731SM

NUT, Hex, 3/8-16

$4.99

$

In Stock, only 1 left!

0

1150

Snapper 1920161SM

NUT, Hex, 5/16-18

$4.49

$

In Stock, only 2 left!

0

1160

Snapper 1659965SM

CAPSCREW, Hex Head, 5/16-18 X 1, GR5

$36.99

$

Usually ships in 2-12 days

0
