P 2132E (1696179-01) - Snapper 32" Snow Thrower, 21hp Auger Housing Group Parts Diagram

32" Snow Thrower, 21hp

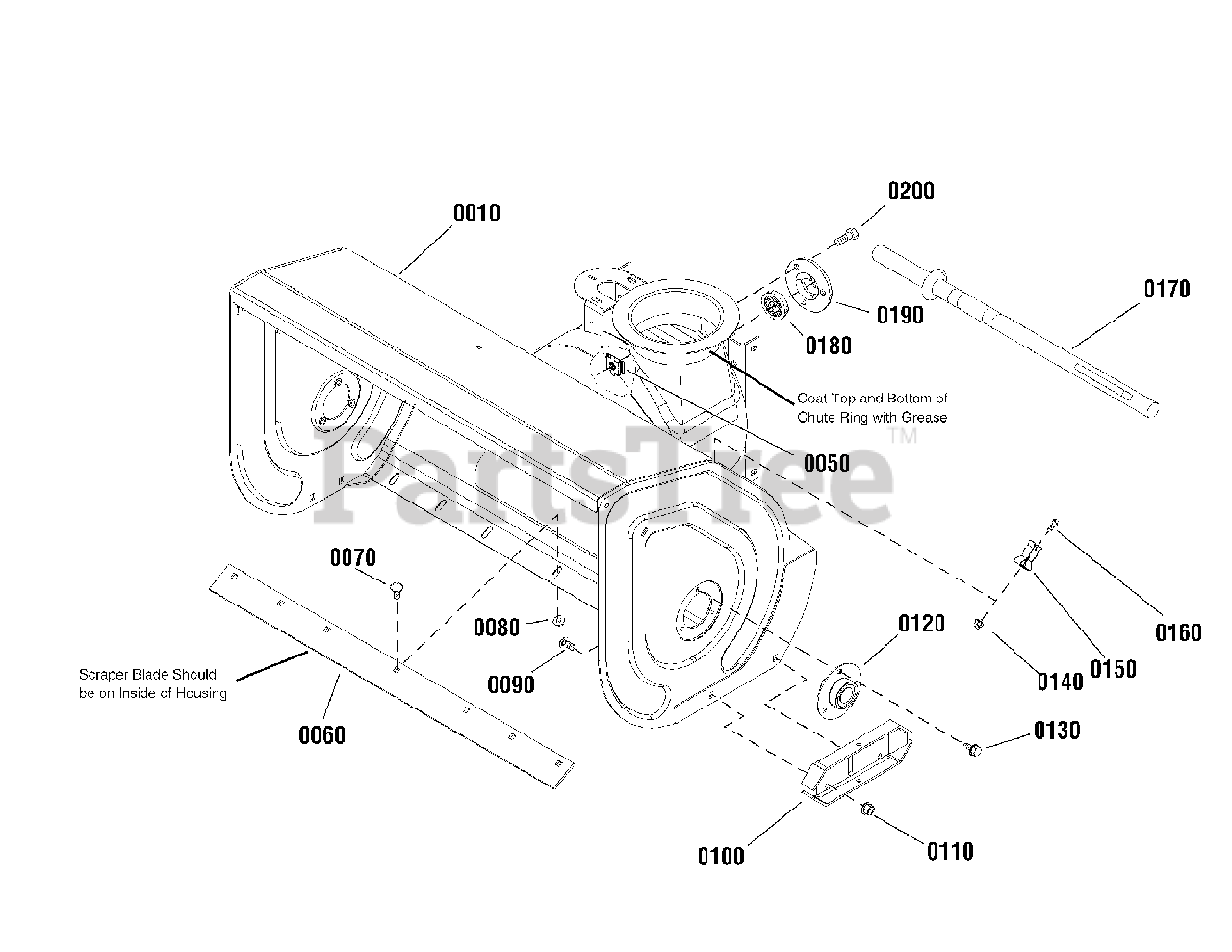

Auger Housing Group Parts Diagram

  • Title

0010

Snapper 1687690YP

AUGER HOUSING, 32"

$683.99

$

Usually ships in 2-12 days

0

0050

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060

Snapper 1709948BMYP

BLADE, Scraper, 32"

$58.99

$

In Stock, only 3 left!

0

0070

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0090

Snapper 1960702SM

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0100

Snapper 1725747BMYP

SHOE, Skid

$92.99

$

In Stock, Qty 5

0

0110

Snapper 1960687SM

NUT, Hex Flange, 3/8-16, ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 1734645SM

BEARING, Ball
(Superseded to 772167)

$51.99

$

Usually ships in 2-12 days

0

0130

Snapper 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 1736620YP

Clip, Retainer

$6.49

$

In Stock, only 3 left!

0

0160

Snapper 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, Qty 7

0

0180

Snapper 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

0190

Snapper 1665982SM

RETAINER, Ball Bearing

$6.99

$

In Stock, Qty 20+

0

0200

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0
