P 2132 E (1696929-00) - Simplicity Professional 32" Snow Thrower, 21hp Handles Group Parts Diagram

Professional 32" Snow Thrower, 21hp

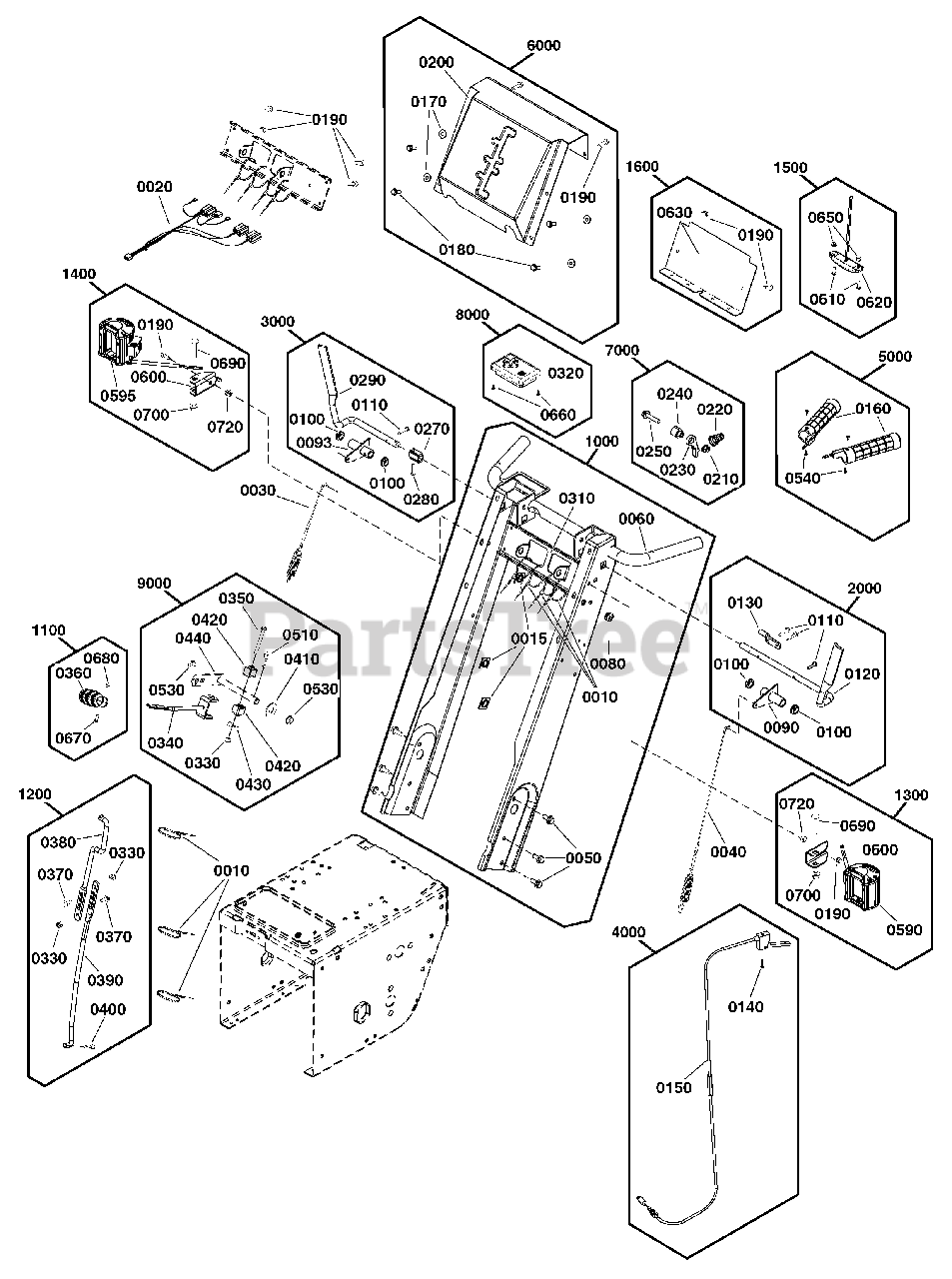

Handles Group Parts Diagram

  • Title

0020

Simplicity 772130

HARNESS, Wiring

$101.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1735148SM

CABLE & SPRING ASSEMBLY, Auger, R.H.

$23.99

$

In Stock, only 1 left!

0

0040

Simplicity 1728115SM

CABLE ASSEMBLY, LH (Includes Ref. No. 36)

$17.99

$

Usually ships in 2-12 days

0

1000

Simplicity 772117

KIT, PRO Handle

Note: (Incl. Ref. Nos. 0010, 0015, 0050, 0060, 0080, 0190, 0310)

$378.99

$

Usually ships in 2-12 days

0

0010

TIE, 7, Self Lock

$

$

Not available

0015

MOUNT, Zip-Tie, Adhesive Backed

$

$

Not available

0050

SCREW, 5/16-18X0.750, GR5, WHIZ-LOCK, ZC

$

$

Not available

0060

WELDMENT, Handle, PRO, Orange

$

$

Not available

0080

GROMMET

$

$

Not available

0190

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

0310

BRACKET, Shift Control

$

$

Not available

1100

Simplicity 770833

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 0360, 0670, 0680)

$17.99

$

Usually ships in 2-12 days

0

0360

KNOB, Slot Speed

$

$

Not available

0670

SCREW, Phillips Head, M5

$

$

Not available

0680

NUT, Acorn, M5

$

$

Not available

1200

Simplicity 772155

KIT, Shift Rod

Note: (Incl. Ref. Nos. 0330, 0370, 0380, 0390, 0400)

$41.99

$

Usually ships in 2-12 days

0

0330

NUT, 1/4-20, Nylock

$

$

Not available

0370

BOLT,1/4-20X0.750,GR5,RH SH SQ NK,ZNC/CLR

$

$

Not available

0380

ROD, .375 Dia., 10.5 LG, Upper Shift

$

$

Not available

0390

Simplicity 1666255BM

ROD, Shift, Lower

$

$

Currently unavailable

0400

HAIR PIN, .080 Wire x 1.19 LG x .25/.38 Dia

$

$

Not available

0440

WELD PIVOT ASSY SHIFT ROD ZINC/CLEAR

$

$

Not available

1300

Simplicity 772102

KIT, LH LED Light

Note: (Incl. Ref. Nos. 0190, 0595, 0600, 0690, 0700, 0720)

$69.99

$

Usually ships in 2-12 days

0

0190

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

0590

ASSEMBLY, Headlight, LED, LH

$

$

Not available

0600

BRACKET, Light, PRO, Black

$

$

Not available

0600

BRACKET, Light, LH, HD, Black

$

$

Not available

0690

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck

$

$

Not available

0700

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

0720

NUT, 1/4-20, Nylock

$

$

Not available

1400

Simplicity 772103

KIT, RH LED Light

Note: (Incl. Ref. Nos. 0190, 0595, 0600, 0690, 0700, 0720)

$74.99

$

Usually ships in 2-12 days

0

0190

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

0595

ASSEMBLY, Headlight, LED, RH

$

$

Not available

0600

BRACKET, Light, PRO, Black

$

$

Not available

0600

BRACKET, Light, RH, HD, Black

$

$

Not available

0690

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck

$

$

Not available

0700

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

0720

NUT, 1/4-20, Nylock

$

$

Not available

1500

Simplicity 772084

KIT, Amber Courtesy Light

Note: (Incl. Ref. Nos. 0610, 0620, 0650)

$19.99

$

Usually ships in 2-12 days

0

0610

SCREW, #10-24 X 0.625, PAN HEAD, TORX 25

$

$

Not available

0620

ASSEMBLY, Amber Courtesy Light, LED

$

$

Not available

0650

NUT, Hex Lock 10-24 w/Nylon Insert

$

$

Not available

1600

Simplicity 772136

KIT, Rear Cover

Note: (Incl. Ref. Nos. 0190, 0630)

$24.99

$

Usually ships in 2-12 days

0

0630

COVER, Rear, Black

$

$

Not available

0190

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

2000

Simplicity 772159

KIT, Left Lever

Note: (Incl. Ref. Nos. 0090, 0100, 0110, 0120, 0130)

$80.99

$

Usually ships in 2-12 days

0

0090

LEVER, Clutch, L.H.

$

$

Not available

0100

BUSHING

$

$

Not available

0110

SCREW, #12-24X1.0, Hex Washer HD Tap-Tite, ZC

$

$

Not available

0120

HANDLE, Clutch, L.H.

$

$

Not available

0130

ROD, Control, 2-7/8

$

$

Not available

3000

Simplicity 772160

KIT, Right Lever

Note: (Incl. Ref. Nos. 0093, 0100, 0110, 0270, 0280, 0290)

$64.99

$

Usually ships in 2-12 days

0

0093

WELDMENT, Clutch Lever, RH, Black

$

$

Not available

0100

BUSHING

$

$

Not available

0110

SCREW, #12-24X1.0, Hex Washer HD Tap-Tite, ZC

$

$

Not available

0270

GUIDE, Control, .434 WD, PM, Zinc/Clear

$

$

Not available

0280

SCREW 10-24X1.000HEX WSHR HD TAPTT ZC/CL

$

$

Not available

0290

HANDLE, Clutch, R.H.

$

$

Not available

4000

Simplicity 772161

KIT, Handle & Cable

Note: (Incl. Ref. Nos. 0150, 0140)

$56.99

$

In Stock, only 1 left!

0

0150

CABLE & HANDLE ASSEMBLY

$

$

Not available

0140

SCREW, Pan Head Torx, #10 x 1/2

$

$

Not available

5000

Simplicity 770769

KIT, Grip, Handle

Note: (Incl. Ref. Nos. 0160, 0540)

$43.99

$

In Stock, only 1 left!

0

0160

HAND GRIP, Heated, 60W

$

$

Not available

0540

SCREW #6-20X0.380 SELFDRILL PAN HD ZC/CL

$

$

Not available

6000

Simplicity 772156

KIT, Dash Panel

Note: (Incl. Ref. Nos. 0170, 0180, 0190, 0200)

$81.99

$

Usually ships in 2-12 days

0

0170

NUT, Hex Flange Whiz, 1/4-20

$

$

Not available

0180

HFLCS 1/4 - 20 X .750 GR5 ZINC/CLEAR

$

$

Not available

0190

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

0200

DASH HANDLE ORANGE

$

$

Not available

7000

Simplicity 772157

KIT, Latch

Note: (Incl. Ref. Nos. 0210, 0220, 0230, 0240, 0250)

$13.99

$

Usually ships in 2-12 days

0

0210

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

0220

SPRING FREE HAND

$

$

Not available

0230

LATCH, Control, PWD Metal, HT TR, ZC/CL

$

$

Not available

0240

SPACER.328IDX.81ODX0.94LG ZINC/CLEAR

$

$

Not available

0250

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 1-1/2

$

$

Not available

8000

Simplicity 772158

KIT, Actuator Switch

Note: (Incl. Ref. Nos. 0320, 0660)

$

$

Not available

0320

SWITCH, Echute, RH

Note: (Incl. Ref. Nos. 0010)

$

$

Not available

0010

Simplicity 84002300

DECAL, Electric Chute, RH

$21.99

$

Usually ships in 2-12 days

0

0660

SCREW, #6-19 X .375 Plastite 48-2 Thread

$

$

Not available

9000

Simplicity 772173

KIT, Rod

Note: (Incl. Ref. Nos. 0330, 0340, 0350, 0410, 0420, 0430, 0510, 0530)

$43.99

$

Usually ships in 2-12 days

0

0330

NUT, 1/4-20, Nylock

$

$

Not available

0340

ASSEMBLY, Shift Rod & Clevis, Threaded, ZC/CL

$

$

Not available

0350

SCREW, 1/4-20 X 2.25, Hex WZ Lock FLNG, ZC/CL

$

$

Not available

0410

WASHER, Flat

$

$

Not available

0420

BLOCK-PIVOT.75X.75 .835HI ZINC/CLEAR

$

$

Not available

0430

WASHER-CURVED.525X0.98X.014TH ZINC/CLEAR

$

$

Not available

0510

HAIR PIN, 3/32 x 1-1/2" YZ

$

$

Not available

0530

BUSHING, 1/2 ID x 3/4 OD x 1/4

$

$

Not available
