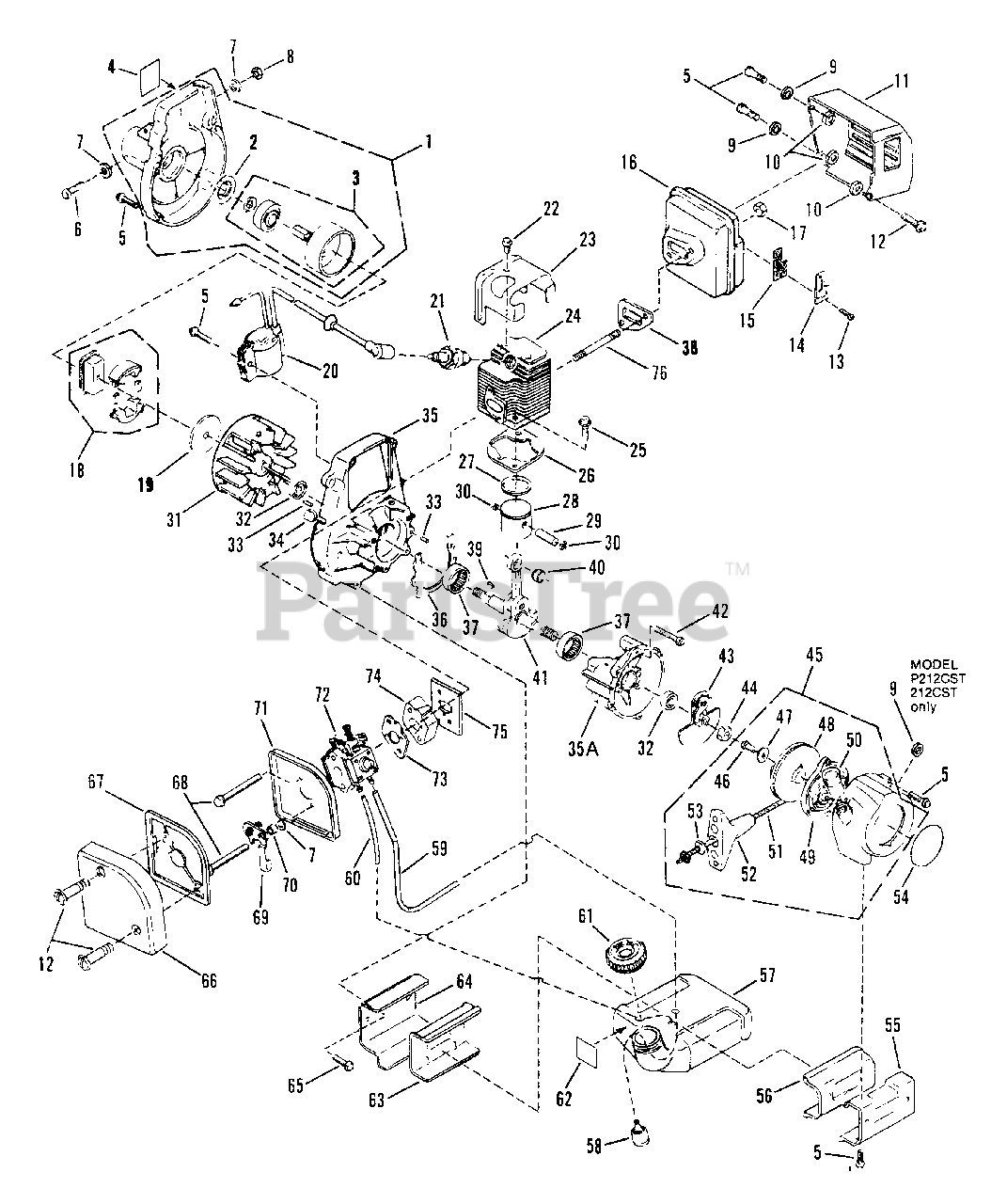

P 212 CST (86279) - Snapper String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Snapper 7042114

HOUSING ASSM'Y, Fan, Model 212CST, P212CST & 213CST

Note: (Includes items 2 & 3)

$

$

Currently unavailable

2

Snapper 7042141

PLATE, Thrust

$

$

Currently unavailable

3

Snapper 7042169

DRUM ASSM'Y., Clutch

Note: (Incl. clutch drum, bearing, & snap ring)

$

$

Currently unavailable

4

Snapper 7042101

LABEL, Engine, Model 212CST

$

$

Currently unavailable

Snapper 7042401

LABEL, Engine, Model 213CST

$

$

Currently unavailable

Snapper 7042285

LABEL, Engine, Model P212CST

$

$

Currently unavailable

5

Snapper 7042105

SCREW, M4 x 18.50mm

$

$

Not available

6

Snapper 7042179

SCREW, M5 x 35mm

$

$

Currently unavailable

7

Snapper 7042175

WASHER, Flat, M5

$

$

Currently unavailable

8

Snapper 7042180

NUT, Hex, M5

$

$

Currently unavailable

9

Snapper 7042106

WASHER, Flat, M4

$

$

Not available

10

Snapper 7042165

SPACER, Muffler

$

$

Not available

11

Snapper 7042166

SHIELD, Muffler

$

$

Not available

12

Snapper 7042167

SCREW, M4 x 25mm

$

$

Not available

13

Snapper 7042163

SCREW, #5-20 x 7/16"

$

$

Currently unavailable

14

Snapper 7042162

COVER, Spark Arrester

$

$

Currently unavailable

15

Snapper 7042161

SCREEN, Spark Arrester

$

$

Currently unavailable

16

Snapper 7042160

MUFFLER ASSM'Y

$

$

Not available

17

Snapper 7042164

NUT, Flange, M5

$

$

Currently unavailable

18

Snapper 7042153

CLUTCH ASSM'Y

Note: (Includes Rotor, Springs, Shoes)

$

$

Not available

19

Snapper 7042168

PLATE, Side

$

$

Currently unavailable

20

Snapper 7042123

COIL, Ignition (SEMS)

$

$

Not available

Snapper 7042424

COIL, Ignition (Full Line)

$

$

Currently unavailable

21

SPARK PLUG (Champion DJ8J)

$

$

Not available

22

Snapper 7042139

SCREW, Pan Head, M5 x 8.5mm

$

$

Currently unavailable

23

Snapper 7042138

COVER, Cylinder

$

$

Currently unavailable

24

Snapper 7042135

CYLINDER

$

$

Currently unavailable

25

Snapper 7042137

SCREW, Pan Head, M6 x 18mm

$

$

Currently unavailable

26

Snapper 7042136

GASKET, Cylinder

$

$

Not available

27

Snapper 7042133

RING, Piston

$

$

Currently unavailable

28

Snapper 7042130

PISTON

$

$

Currently unavailable

29

Snapper 7042131

PIN, Piston

$

$

Currently unavailable

30

Snapper 7042132

SNAP-RING, Piston Pin

$

$

Currently unavailable

31

Snapper 7042119

FLYWHEEL (SEMS)

$

$

Currently unavailable

Snapper 7042423

FLYWHEEL (Full Line)

$

$

Currently unavailable

32

Snapper 7042120

SEAL, Oil

$

$

Not available

33

Snapper 7042121

PIN

$

$

Currently unavailable

34

Snapper 7042122

GROMMET

$

$

Currently unavailable

35

Snapper 7042113

CRANKCASE ASSM'Y

Note: (Includes item 35A)

$

$

Currently unavailable

35A

RECOIL MOUNT (Part of 42113)

$

$

Not available

36

Snapper 7042117

GASKET, Crankcase

$

$

Not available

37

Snapper 7042116

BEARING, Crankshaft

$

$

Not available

38

Snapper 7042178

GASKET, Muffler

$

$

Not available

39

Snapper 7042118

KEY, Woodruff

$

$

Not available

40

Snapper 7042129

BEARING, Needle

$

$

Currently unavailable

41

Snapper 7042115

CRANKSHAFT ASSM'Y

$

$

Currently unavailable

42

Snapper 7042134

SCREW, Pan Head, M5 x 28.5mm

$

$

Currently unavailable

43

Snapper 7042144

RATCHET ASSM'Y

$

$

Currently unavailable

44

Snapper 7042145

NUT, Hex, M8

$

$

Currently unavailable

45

Snapper 7042155

STARTER ASSM'Y, 212CST & P212CST
(Superseded to 7042155YP)

Note: (Includes items 46 - 53)

$32.99

$

Usually ships in 2-12 days

0

Snapper 7042203

STARTER ASSM'Y 213CST
(Superseded to 7042203YP)

Note: (Includes items 46 thru 53)

$45.99

$

Usually ships in 2-12 days

0

46

Snapper 7042146

SCREW, Pan Head, M4 x 9.50mm

$

$

Not available

47

Snapper 7042147

WASHER, Flat, M4 Special

$

$

Currently unavailable

48

Snapper 7042148

DRUM/ROPE ASSM'Y

Note: (Includes item 51)

$6.99

$

In Stock, only 1 left!

0

49

Snapper 7042152

SPRING, Starter

$

$

Not available

50

Snapper 7042154

GUIDE, Rope (212CST & P212CST)

$

$

Not available

Snapper 7042412

GUIDE, Rope (213CST)
(Superseded to 7042412YP)

$4.49

$

Usually ships in 2-12 days

0

51

Snapper 7042149

ROPE, Starter,

$

$

Not available

52

Snapper 7042150

HANDLE, Starter

$

$

Not available

53

Snapper 7042151

WASHER, Nylon

$

$

Not available

54

Snapper 7042402

LABEL, Starting instruction, Model P212CST 213CST

$

$

Currently unavailable

Snapper 7042103

LABEL, Starting Instruction, Model 212CST

$

$

Currently unavailable

55

Snapper 7042406

BRACKET, Starter Housing (213CST only)

$

$

Currently unavailable

56

Snapper 7042108

CUSHION, Fuel Tank (212CST & P212CST

$

$

Not available

Snapper 7042405

CUSHION, Fuel Tank (213CST only)

$

$

Currently unavailable

57

Snapper 7042107

TANK ASSM'Y, Fuel, (212CST only)

Note: (Includes items 58 & 59)

$

$

Not available

Snapper 7042403

TANK ASSM'Y, Fuel, (213CST only)

Note: (Includes items 58,59, & 60)

$

$

Not available

Snapper 7042143

TANK ASSM'Y, Fuel, (P212CST only)

Note: (Includes items 58, 59, & 60)

$

$

Not available

58

Snapper 7042157

PICK-UP, Hose

$

$

Not available

59

Snapper 7042156

HOSE, Fuel Pick-up

$

$

Not available

60

Snapper 7042404

HOSE, Fuel Return

$

$

Not available

61

Snapper 7042110

CAP, Fuel

$

$

Not available

62

Snapper 7042102

LABEL, 32.1 Fuel/Oil Mix Ration

$

$

Currently unavailable

63

Snapper 7042109

CUSHION, Bracket, Model 212CST & P212CST

$

$

Currently unavailable

Snapper 7042409

CUSHION, Bracket, Model 213CST

$

$

Currently unavailable

64

Snapper 7042407

BRACKET ASSM'Y, Tank/Shield, (Model 213CST only)

$

$

Currently unavailable

65

Snapper 7042408

SCREW, M4 x 8mm, (Model 213CST only)

$

$

Currently unavailable

66

Snapper 7042170

COVER, Air Filter
(Superseded to 7042170YP)

$10.99

$

Usually ships in 2-12 days

0

67

Snapper 7042171

FILTER, Air
(Superseded to 7042171YP)

$9.49

$

Usually ships in 2-12 days

0

68

Snapper 7042172

SCREW M5 x 55mm
(Superseded to 7042172YP)

$3.49

$

Usually ships in 2-12 days

0

69

Snapper 7042292

ASSEMBLY, Choke Shutter

$

$

Currently unavailable

70

Snapper 7042174

SPACER, Choke Shutter

$

$

Currently unavailable

71

Snapper 7042176

AIRBOX/GROMMET ASSM'Y

$

$

Currently unavailable

72

Snapper 7042196

CARBURETOR ASSM'Y, 212CST

Note: Was 42111

$

$

Not available

Snapper 7042196

UNKNOWN

Note: (See Carburetor Parts for illustration & parts list)

$

$

Not available

Snapper 7042413

CARBURETOR ASSM'Y, 213CST & P212CST

$

$

Not available

Snapper 42309

UNKNOWN

Note: (See Carburetor Parts for illustration & parts list)

$

$

Currently unavailable

73

Snapper 7042177

GASKET, Carburetor
(Superseded to 7042177YP)

$

$

Not available

74

Snapper 7042126

INSULATOR, Carburetor

$

$

Not available

75

Snapper 7042127

GASKET, Insulator

$

$

Not available

76

Snapper 7042159

STUD BOLT

$

$

Currently unavailable
