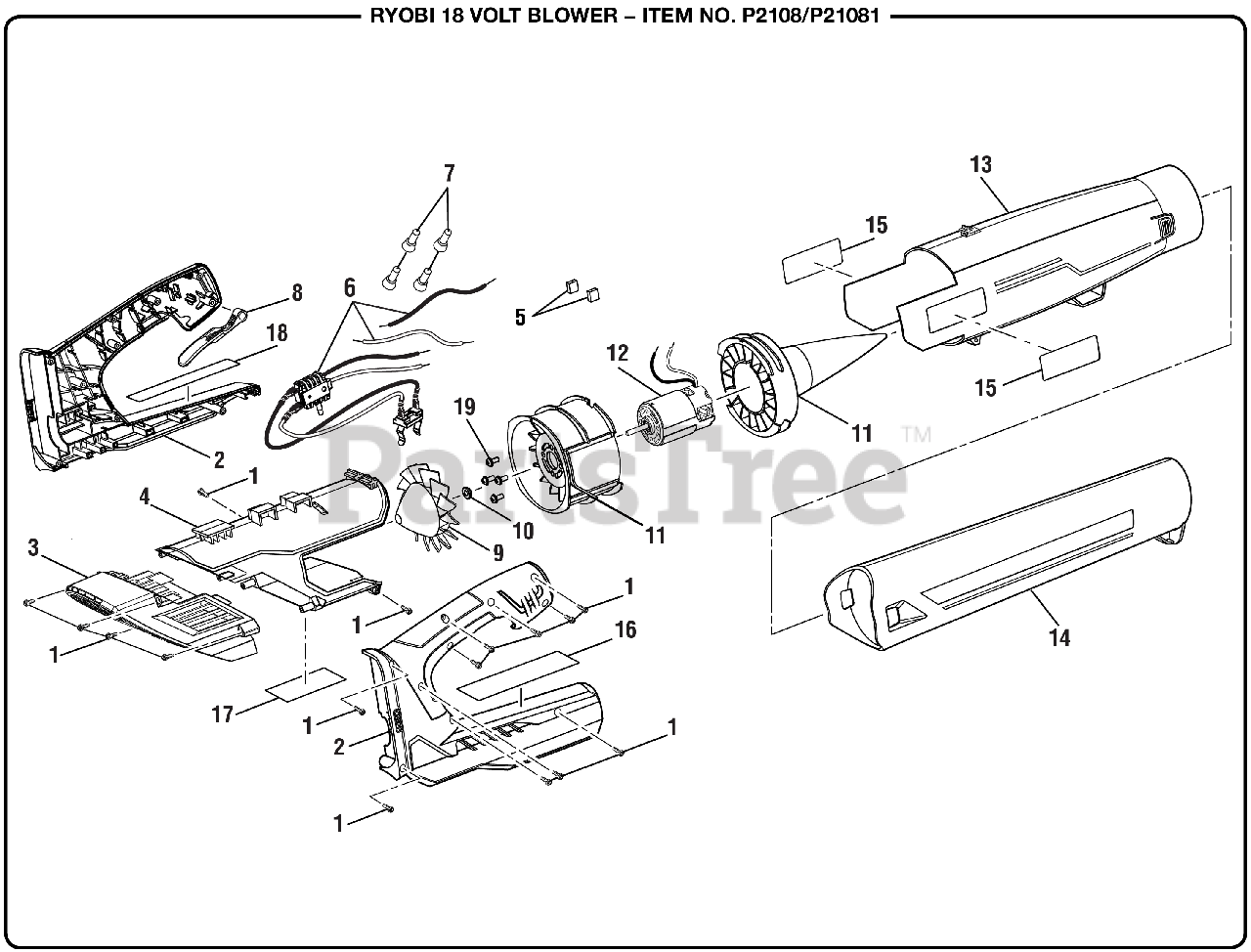

P 21081 (107267003) - Ryobi 18V Blower, Rev 04 (2018-08) General Assembly Parts Diagram

18V Blower, Rev 04

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 330078001

Handle Assembly

Note: (Inc. Key Nos. 16 and 18)

$31.99

$

Usually ships in 3-7 days

0

3

Homelite 529436001

Inlet Guard

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 330080001

Inlet Housing Assembly
(Superseded to 205152001)

Note: (Inc. Key No. 17)

$

$

Not available

5

Homelite 563768002

Rubber Block

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 291632001

Switch and Contact Plate Assembly

$41.99

$

In Stock, only 1 left!

0

7

Homelite 790021001

Wire Connector

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 525552001

Trigger Assembly (Variable Speed)

$1.99

$

In Stock, only 2 left!

0

9

Homelite 529437004

Fan Blade

$8.49

$

In Stock, only 1 left!

0

10

Homelite 612854001

Bushing

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 351074001

Tail Cone Assembly

$16.99

$

Usually ships in 3-7 days

0

12

Homelite 742200001

Motor

$98.99

$

Usually ships in 3-7 days

0

13

Homelite 330079001

Blower Housing Outlet Assembly

Note: (Inc. Key No. 15)

$22.99

$

In Stock, only 1 left!

0

14

Homelite 529431001

Blower Tube

$9.49

$

Usually ships in 3-7 days

0

15

Homelite 940705307

Logo Label (Ryobi)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 940657183

Warning Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 941588103

Data Label
(Superseded to 941588369)

Note: (P2108)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940657184

Warning Icon Label

$

$

Not available

19

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

Homelite 991000679

Operator's Manual

Note: NOT SHOWN

$

$

Not available
