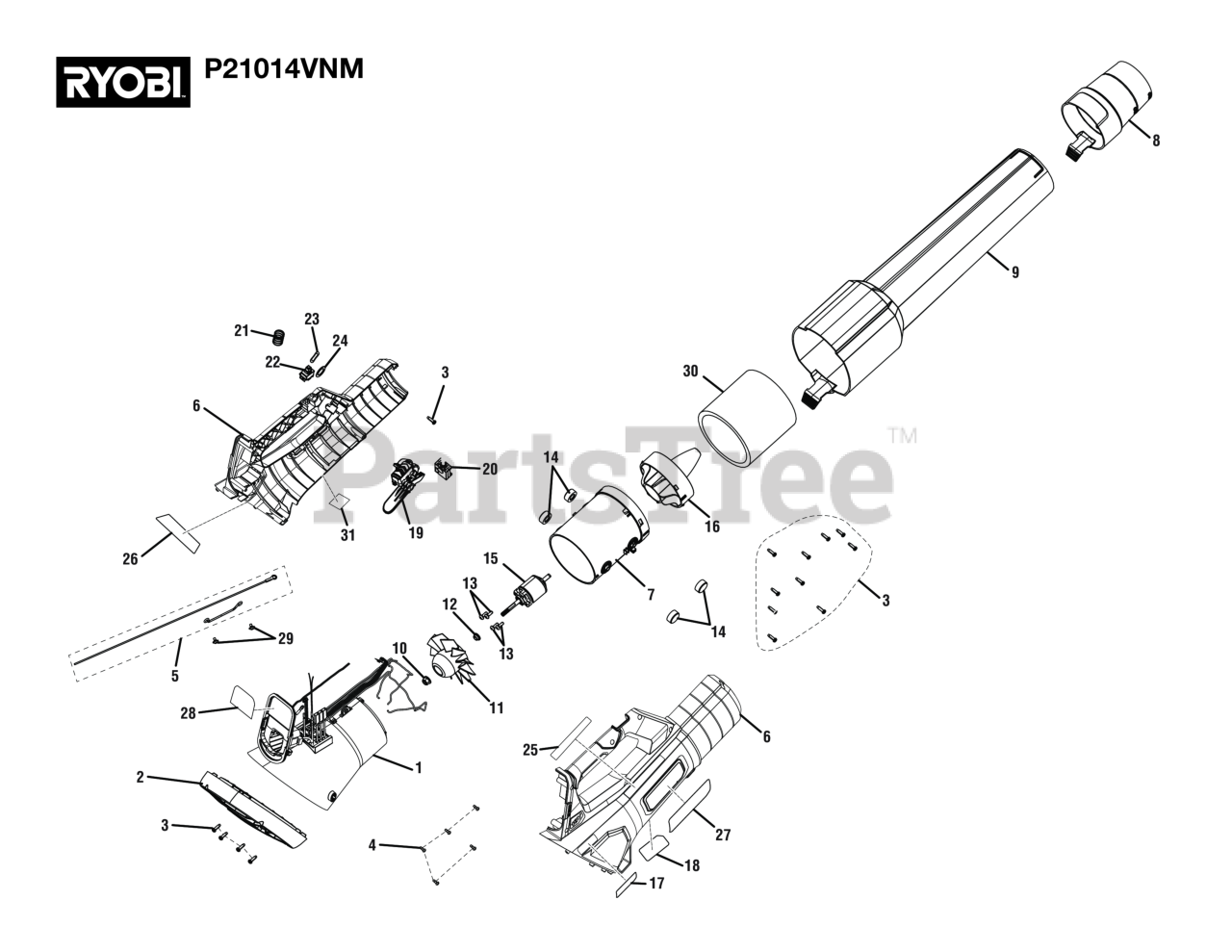

P 21014 VNM (108723001) - Ryobi 18V Brushless Blower, Rev 02 (2022-01) General Assembly Parts Diagram

18V Brushless Blower, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 205645001

Motor Controller and Inlet Bell Assembly (Inc. Key No. 28)

Note: (Inc. Key No. 28)

$161.99

$

Usually ships in 0 days

0

2

Homelite 544537001

Inlet Guard

$16.99

$

Usually ships in 3-7 days

0

3

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

4

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 205648001

Grounding Strap Assembly

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 205646001

Housing Assembly (Inc. Key Nos. 17-18 & 25-27)

Note: (Inc. Key Nos. 17-18, 25-27 & 31)

$46.99

$

Usually ships in 3-7 days

0

7

Homelite 544540001

Stator Assembly

$11.99

$

Usually ships in 3-7 days

0

8

Homelite 205647001

Speed Nozzle Assembly

$13.99

$

Usually ships in 3-7 days

0

9

Homelite 544547001

Blower Tube Assembly

$12.99

$

Usually ships in 3-7 days

0

10

Homelite 678774009

Flange Lock Nut (M6 x 1 mm)

$1.99

$

In Stock, only 1 left!

0

11

Homelite 544546001

Fan

$8.99

$

In Stock, only 2 left!

0

12

Homelite 612854002

Bushing

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660137001

Screw w/Tooth Washer (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

14

Homelite 565463001

Rubber Cap

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 742667003

Motor

$195.99

$

Usually ships in 0 days

0

16

Homelite 544719001

Nose Cone

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 941110041

Ingestion Icon Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 941110063

QR Label

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 317856001

Trigger and Cruise Control Assembly

$8.49

$

In Stock, only 2 left!

0

20

Homelite 760777001

Signal Switch

$15.99

$

Usually ships in 3-7 days

0

21

Homelite 699363001

Spring

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 760781001

Push Switch

$4.49

$

Usually ships in 3-7 days

0

23

Homelite 636095001

Wave Washer

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 635793001

Washer (OD21 x 14 x 1t)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 941110062

Icon Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 941110064

WHISPER SERIES Logo Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 941110061

Warning Label

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 941110060

Data Label

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 660290004

Screw (M3 x 5 mm)

$

$

Currently unavailable

30

Homelite 904063001

Foam

$9.99

$

Usually ships in 3-7 days

0

31

Homelite 941097124

dB Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000696

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
