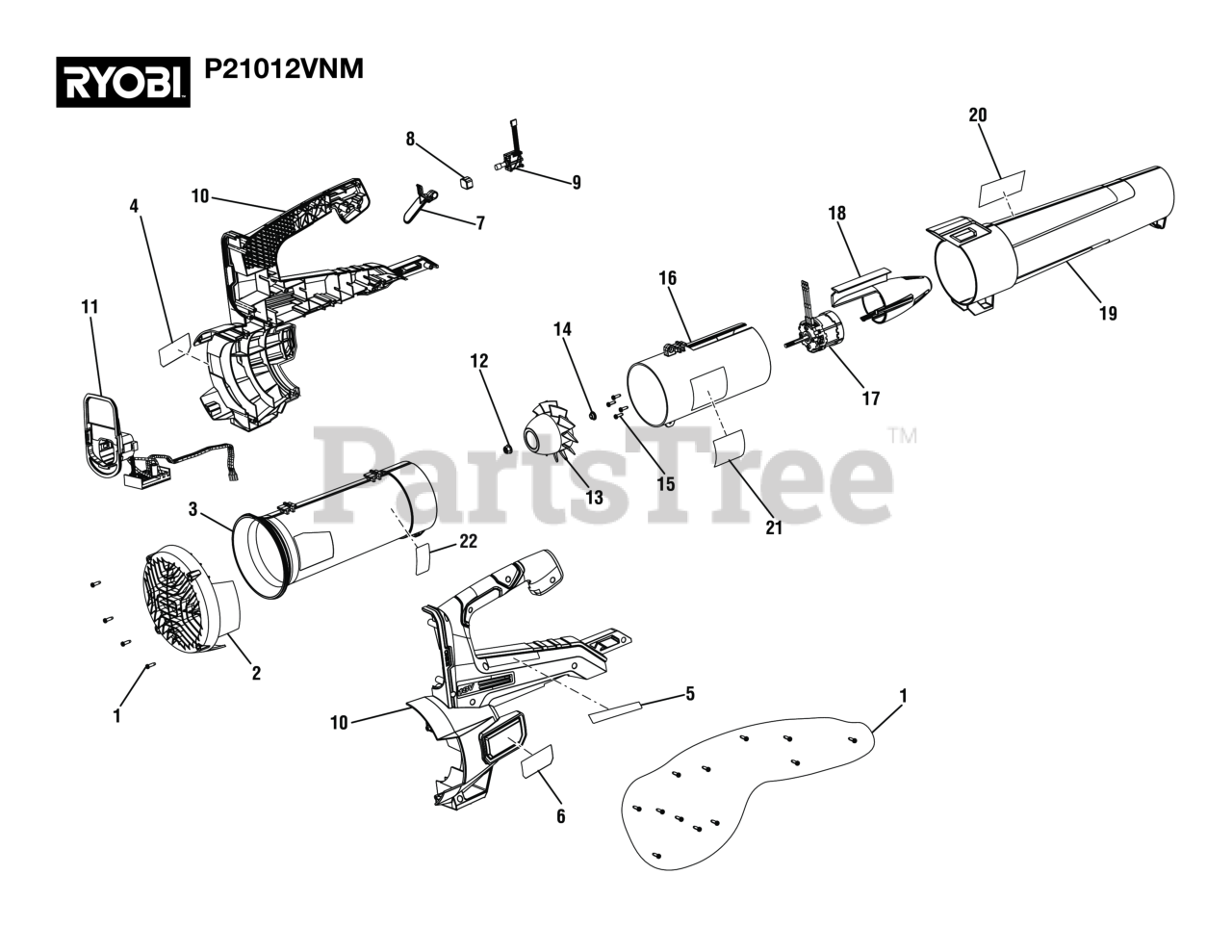

P 21012 VNM (108646001) - Ryobi 18V Brushless Blower, Rev 03 (2021-10) General Assembly Parts Diagram

18V Brushless Blower, Rev 03

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

2

Homelite 541661001

Guard

$12.99

$

Usually ships in 3-7 days

0

3

Homelite 319088001

Inlet Bell Assembly

Note: (Inc. Key No. 22)

$

$

Currently unavailable

4

Homelite 941588725

Logo Label

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 941588728

Icon Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 941588726

Data Label

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 541662001

Trigger

$

$

Currently unavailable

8

Homelite 541663001

Switch Cap

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 760649001

Variable Speed Switch

$18.99

$

Usually ships in 3-7 days

0

10

Homelite 317091001

Housing Assembly

Note: (Inc. Key Nos. 4-6)

$54.99

$

Usually ships in 3-7 days

0

11

Homelite 317094001

Motor Controller & Battery Foot Assembly

$89.99

$

Usually ships in 3-7 days

0

12

Homelite 678774009

Flange Lock Nut (M6 x 1 mm)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 541664001

Fan

$

$

Currently unavailable

14

Homelite 612854002

Bushing

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 661610009

Screw (M3.5 x 12 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 317092001

Stator Assembly

Note: (Inc. Key No. 21)

$16.99

$

Usually ships in 3-7 days

0

17

Homelite 742700001

Motor

$144.99

$

Usually ships in 3-7 days

0

18

Homelite 541668001

Nose Cone

$

$

Currently unavailable

19

Homelite 317093001

Tube Assembly

Note: (Inc. Key No. 20)

$16.99

$

In Stock, only 1 left!

0

20

Homelite 941588729

HP Brushless Label

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 941588727

Warning Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 941263185

QR Label

$

$

Currently unavailable

Homelite 998000300

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
