P 2100 (CMXGJAMDPS25) (41CDPS25793) - Craftsman Pole Saw General Assembly Parts Diagram

Pole Saw

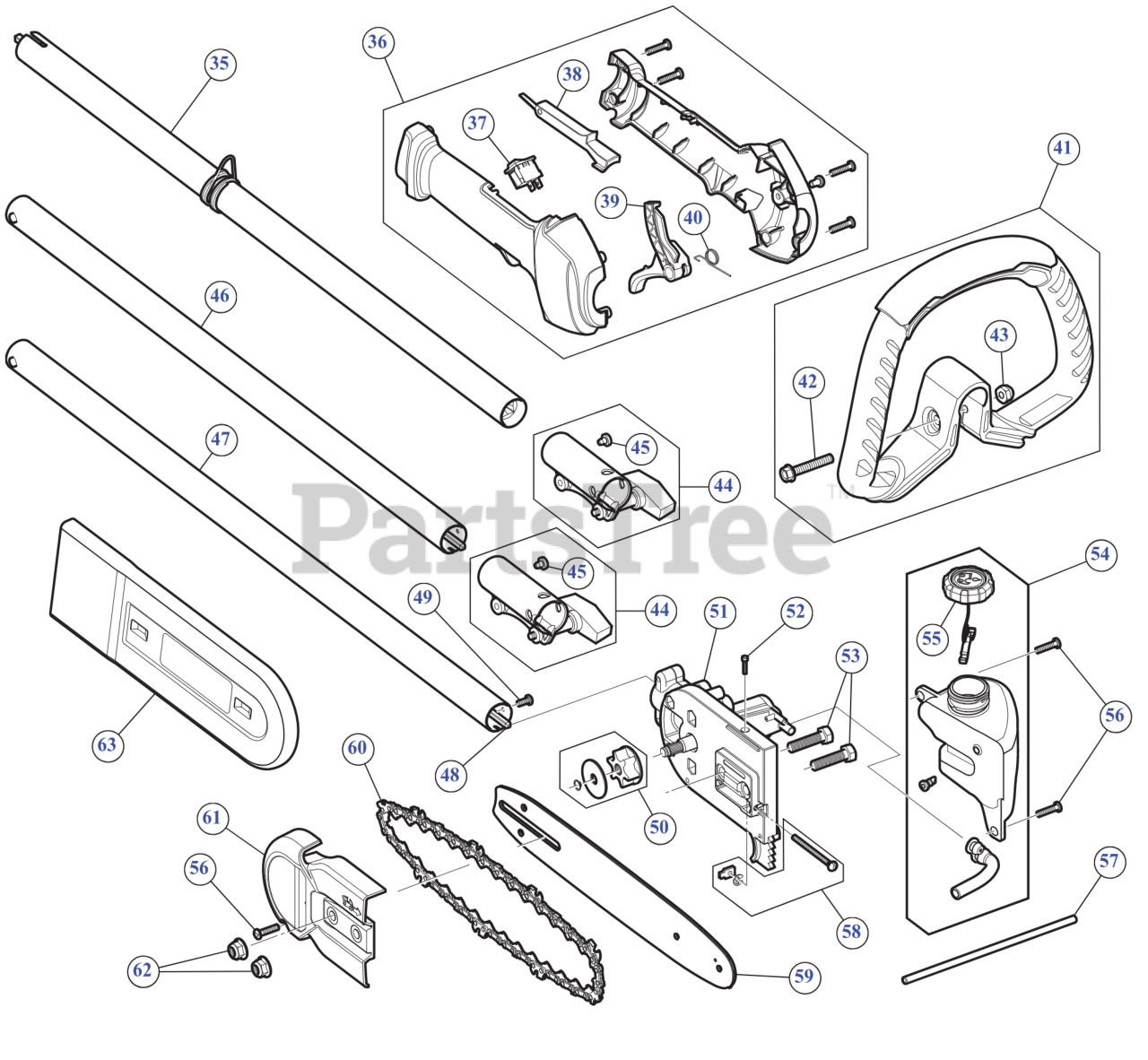

General Assembly Parts Diagram

  • Title

35

MTD 841-036129S

UPPER SHAFT HOUSING

$18.99

$

In Stock, only 2 left!

0

36

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 37 - 40)

$30.99

$

Usually ships in 3-6 days

0

37

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

39

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

40

MTD 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

41

MTD 753-06889

HANDLE DLX

Note: (Incl. 42 & 43)

$9.49

$

In Stock, Qty 11

0

42

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

43

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

44

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 45)

$7.49

$

In Stock, Qty 8

0

45

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

46

MTD 753-11150

EXTENSION BOOM

$18.99

$

In Stock, only 1 left!

0

47

MTD 753-11238

LOWER SHAFT HOUSING

Note: (Incl. 48)

$38.99

$

Usually ships in 3-6 days

0

48

MTD 753-11123

FLEXIBLE DRIVE SHAFT

$65.99

$

Usually ships in 3-6 days

0

49

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

50

MTD 753-05595

SPROCKET ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

51

MTD 753-05599

GEAR BOX ASSEMBLY

Note: (Incl. 50 & 52)

$106.99

$

Usually ships in 3-6 days

0

52

MTD 710-04696

SCREW 4X40X.50

$3.99

$

In Stock, only 2 left!

0

53

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

54

MTD 753-11360

OIL TANK

Note: (Incl. 55)

$28.99

$

Usually ships in 3-6 days

0

55

MTD 753-11375

OIL CAP

$7.99

$

Usually ships in 3-6 days

0

56

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

57

MTD 753-05588

OIL LINE

$9.99

$

Usually ships in 3-6 days

0

58

MTD 753-05597

CHAIN TENSION HDW

$10.99

$

In Stock, only 3 left!

0

59

MTD 795-00442

BAR 10"

$18.99

$

In Stock, only 1 left!

0

60

MTD 713-05156

CHAIN 10"

$15.99

$

In Stock, Qty 14

0

61

MTD 753-05765

CHAIN GUARD

$11.99

$

In Stock, only 1 left!

0

62

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 10

0

63

MTD 731-25531-2

SCABBARD

$6.49

$

Usually ships in 3-6 days

0

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

MTD 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
